BS EN 62056-3-1:2014 PDF

Electricity metering data exchange. The DLMS/COSEM suite - Use of local area networks on twisted pair with carrier signalling

First page of standard BS EN 62056-3-1:2014

Open preview (PDF)

Title (English):

BS EN 62056-3-1:2014

Electricity metering data exchange. The DLMS/COSEM suite - Use of local area networks on twisted pair with carrier signalling

Document status:: Withdrawn
Format:: Electronic (PDF)
Publication date:: March 31, 2014
ICS:: 17.220.01
Technical committee:: CENELEC
SKU:: BS EN 62056-3-1:2014

Delivery type:

Full version50 €Read online 24h10 €Read online 72h15 €

Document language:

enru

Delivery time:Immediate download

Price:50 €

Abstract

1 Scope This part of IEC 62056 describes three profiles for local bus data exchange with stations either energized or not. For non-energized stations, the bus supplies energy for data exchange. Three different profiles are supported:

• base profile: this three-layer profile provides remote communication services;

NOTE This first profile has been published in IEC 61142:1993 and became known as the Euridis standard.

• profile with DLMS: this profile allows using DLMS services as specified in IEC 61334‑4‑41;

NOTE This second profile has been published in IEC 62056‑31 Ed. 1.0: 1999;

• profile with DLMS/COSEM: this profile allows using the DLMS/COSEM Application layer and the COSEM object model as specified in IEC 62056‑5‑3 Ed. 1.0: — and in IEC 62056‑6‑2 Ed. 1.0: — respectively.

The three profiles use the same physical layer and they are fully compatible, meaning that devices implementing any of these profiles can be operated on the same bus. The transmission medium is twisted pair using carrier signalling and it is known as the Euridis Bus.

Related standards

Standards mentioned in the description

• base profile: this three-layer profile provides remote communication services;

NOTE This first profile has been published in IEC 61142:1993 and became known as the Euridis standard.

• profile with DLMS: this profile allows using DLMS services as specified in IEC 61334‑4‑41;

NOTE This second profile has been published in IEC 62056‑31 Ed. 1.0: 1999;

BS EN 62056-3-1:2014 PDF

Abstract

Related standards

Abstract

Related standards

Electricity metering data exchange - The DLMS/COSEM suite - Part 8-8: Communication profile for ISO/IEC 14908…

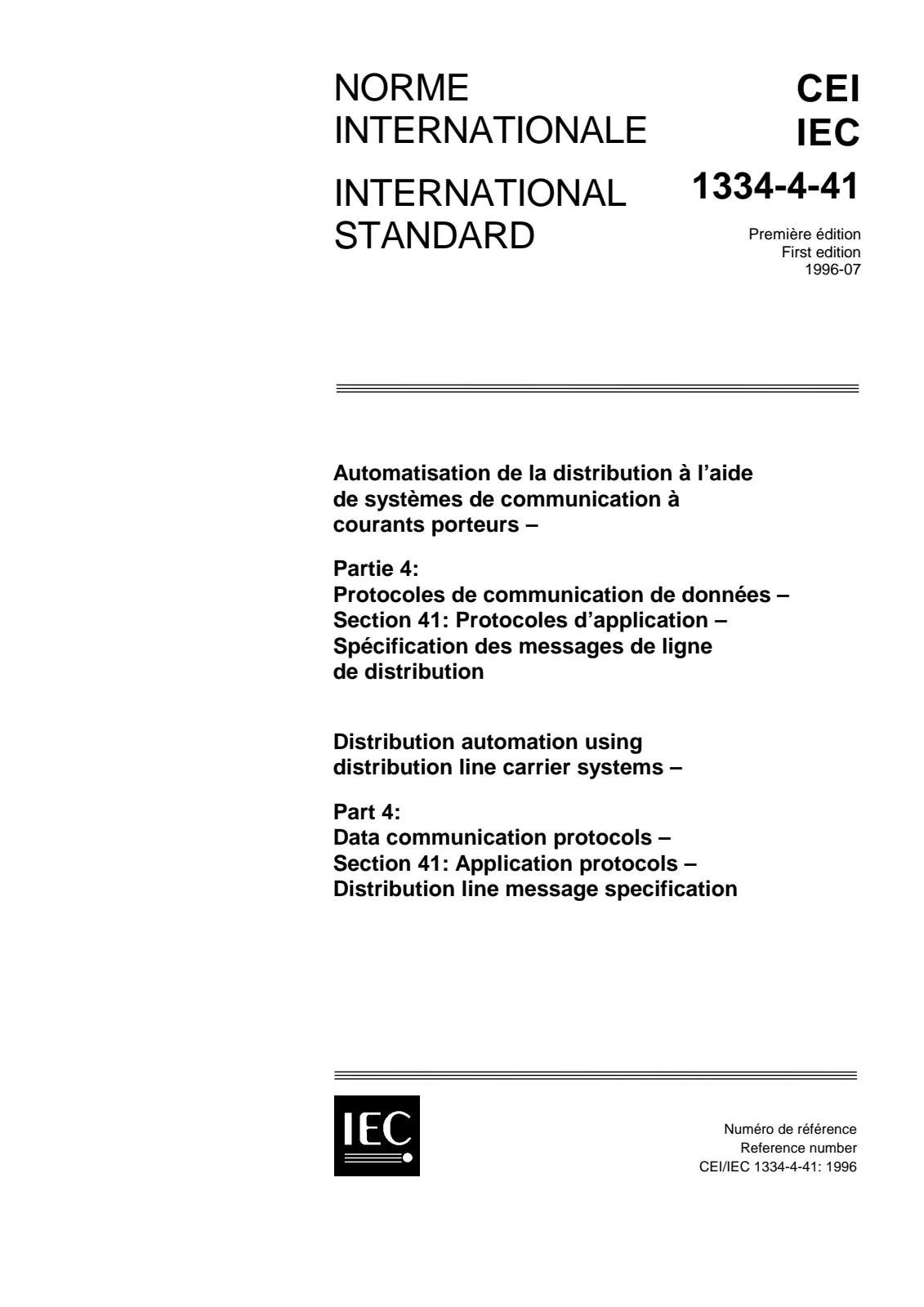

Distribution automation using distribution line carrier systems - Part 4: Data communication protocols - Sect…
