BS ISO 22266-1:2009 PDF

Mechanical vibration. Torsional vibration of rotating machinery - Land-based steam and gas turbine generator sets in excess of 50 MW

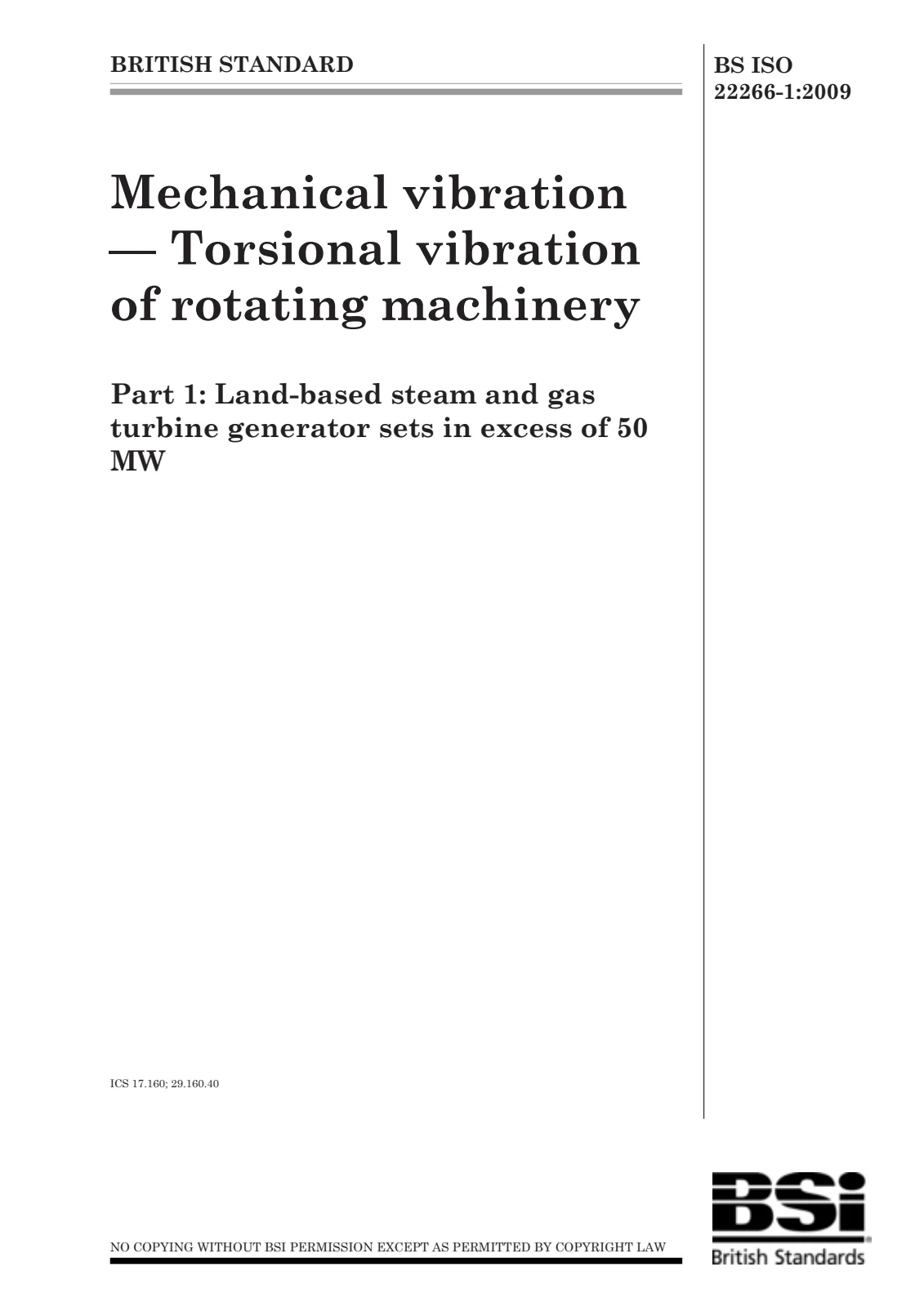

First page of standard BS ISO 22266-1:2009

Open preview (PDF)

Title (English):

BS ISO 22266-1:2009

Mechanical vibration. Torsional vibration of rotating machinery - Land-based steam and gas turbine generator sets in excess of 50 MW

Document status:: Withdrawn
Format:: Electronic (PDF)
Publication date:: July 31, 2009
ICS:: 17.160
SKU:: BS ISO 22266-1:2009

Delivery type:

Full version50 €Read online 24h10 €Read online 72h15 €

Document language:

enru

Delivery time:Immediate download

Price:50 €

Abstract

1 Scope This part of ISO 22266 provides guidelines for applying shaft torsional vibration criteria, under normal operating conditions, for the coupled shaft system and long blades of a turbine generator set . In particular, these apply to the torsional natural frequencies of the coupled shaft system at line and twice line frequencies of the electrical network to which the turbine generator set is connected. In the event that torsional natural frequencies do not conform with defined frequency margins, other possible actions available to vendors are defined. This part of ISO 22266 is applicable to

— land-based steam turbine generator sets for power stations with power outputs greater than 50 MW and normal operating speeds of 1 500 r/min, 1 800 r/min, 3 000 r/min and 3 600 r/min, and

— land-based gas turbine generator sets for power stations with power outputs greater than 50 MW and normal operating speeds of 3 000 r/min and 3 600 r/min.

Methods currently available for carrying out both analytical assessments and test validation of the shaft system torsional natural frequencies are also described.

Related standards

Mentioned in the description and other BS standards

— land-based steam turbine generator sets for power stations with power outputs greater than 50 MW and normal operating speeds of 1 500 r/min, 1 800 r/min, 3 000 r/min and 3 600 r/min, and

— land-based gas turbine generator sets for power stations with power outputs greater than 50 MW and normal operating speeds of 3 000 r/min and 3 600 r/min.

Methods currently available for carrying out both analytical assessments and test validation of the shaft system torsional natural frequencies are also described.
