Overview

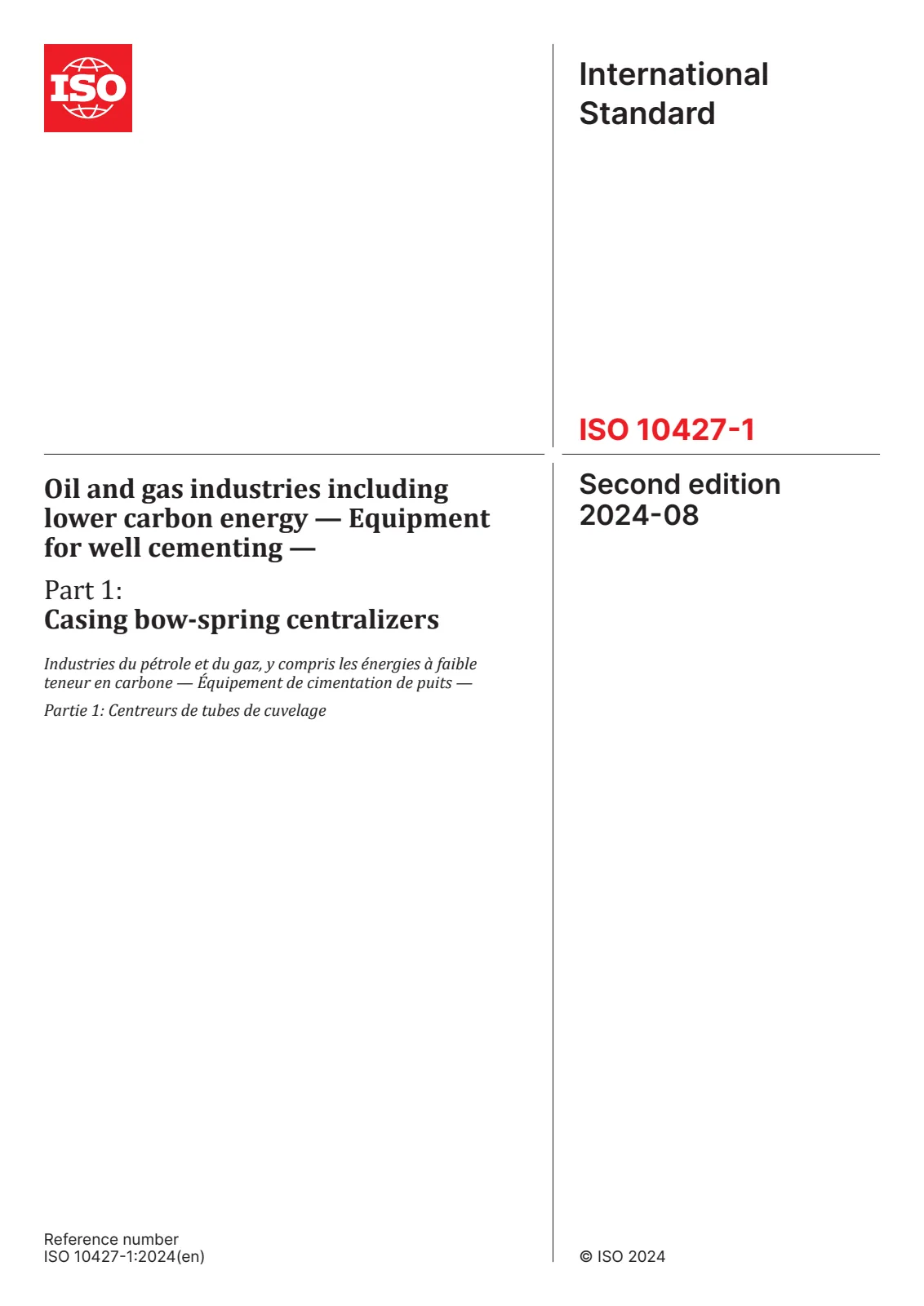

EN ISO 10427-1:2024 (ISO 10427-1:2024) defines testing, performance and marking requirements for casing bow-spring centralizers used in oil and natural gas well construction. Published by CEN/ISO in 2024, this standard supplements API Spec 10D, 7th edition (2021) and updates the previous (2001) edition. It provides procedural guidance for verification testing of manufacturer design, materials and processes, and for periodic testing to confirm consistent product performance in well cementing operations.
Key topics and requirements
- Scope and applicability
- Applies specifically to casing bow-spring centralizers; excludes rigid centralizers, cement baskets and bow-spring devices used for other tools (wireline, gravel pack, inner string).
- Test and performance requirements
- Specifies verification and periodic tests for running forces and restoring forces, including the order of testing for conventional and under-reamed well geometries.
- Requires testing of centralizers in representative conditions (open hole tests, run-in configurations).
- Measurement procedures
- Defines a method to measure centralizer maximum diameter after open hole tests: average internal diameter plus twice averaged bow height (measured with a reference bar and calliper).
- Introduces the term centralizer rigid OD: maximum OD of the centralizer or end collars when bows are flat (whichever is larger).
- Coating and friction
- Coated centralizers with friction-reducing coatings must be tested both with and without the coating; paint on bows is not acceptable for running-force measurements because it alters friction.
- Mass compensation
- When compensating for the mass of the traveling pipe and attachments during running-force tests, the mass of the centralizer must be excluded from compensating values.
- Marking and documentation
- Requires marking and documentation consistent with API Spec 10D, with the supplementary provisions of this ISO document.
Applications and users
- Who uses it
- Centralizer manufacturers (design verification, quality control)
- Third‑party testing laboratories and inspection bodies
- Completion engineers, well cementing contractors and procurement/QC teams
- Regulators and asset owners requiring standardized test evidence
- Practical uses
- Ensures consistent running and restoring force performance for proper casing centralization during cementing
- Provides repeatable post-test measurement methods to assess plastic deformation and serviceability
- Supports selection, acceptance testing and periodic re‑verification of centralizer batches for field deployment
Related standards
- Primary reference: API Spec 10D, 7th edition (2021) - requirements apply except where ISO 10427-1:2024 provides specific exceptions or supplements.
- Series context: Part of the ISO 10427 series covering well cementing equipment.
Keywords: casing bow-spring centralizers, well cementing, running force test, open hole test, centralizer maximum diameter, centralizer rigid OD, API Spec 10D, testing and performance.
