Overview

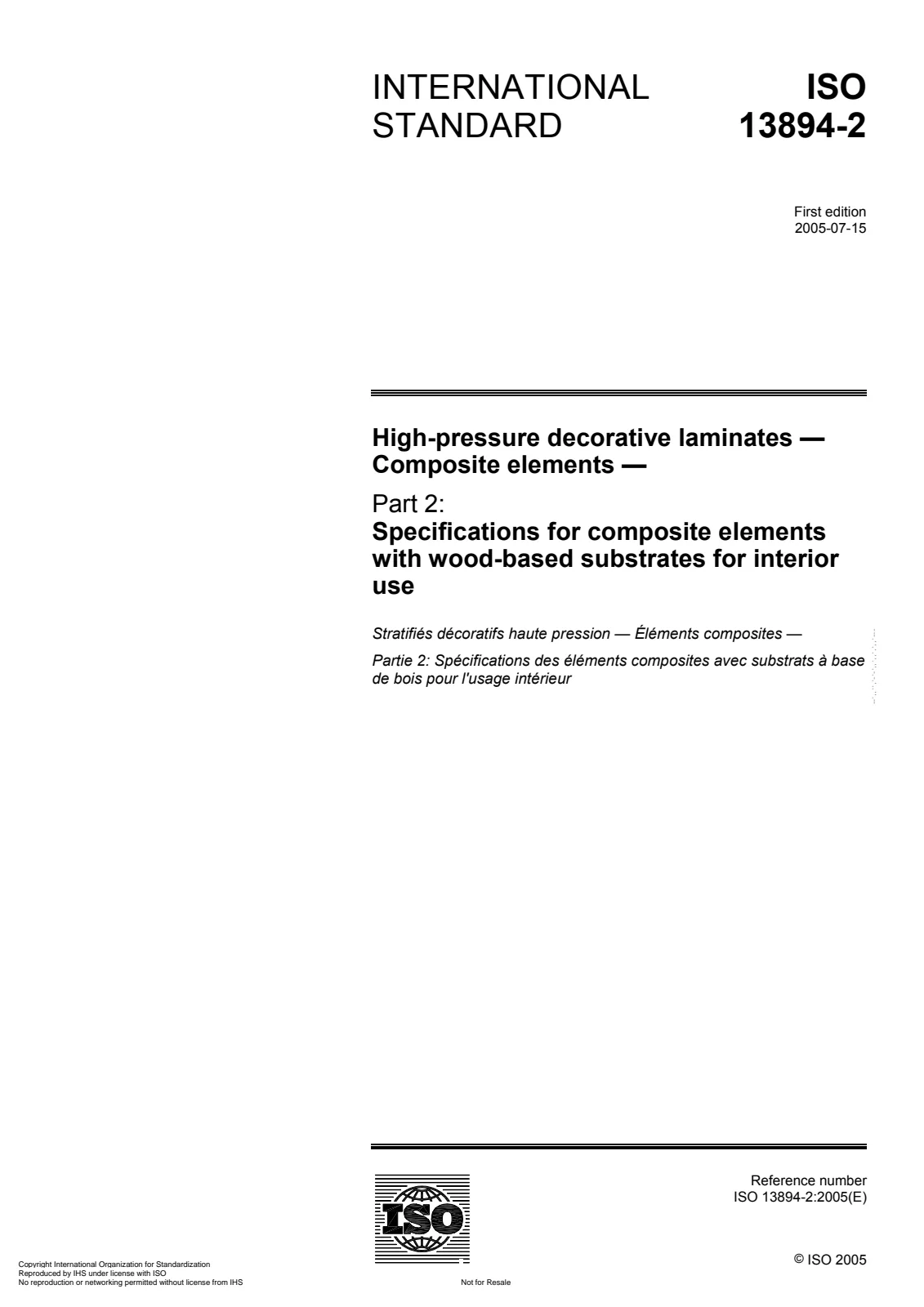

EN ISO 13894-2:2015 specifies requirements for high‑pressure decorative laminates (HPDL) bonded to wood‑based substrates for normal interior use. Adopted by CEN from ISO 13894‑2:2005, this standard covers composite elements produced by adhesively bonding HPDL sheet material to one or both faces of substrates such as particleboard, fibreboard, OSB or plywood. It does not set performance levels for extreme heat or moisture exposure; special‑application testing and criteria are agreed between customer and supplier.
Key topics and technical requirements
The standard defines general properties, minimum requirements and test references (test methods are in ISO 13894‑1). Principal technical topics include:
-
Appearance and surface quality
- Decorative surface compliance with ISO 4586‑1.
- Acceptance criteria for surface ripple (telegraphing), bumps, indentations, cracks and adhesive smears for boards and cut‑to‑size panels.
-
Dimensional tolerances
- Tolerances for boards and panels (length, width, edge straightness, squareness).
- Thickness tolerances: specified offsets for single‑faced and double‑faced elements.
- Deviation from flatness limits for typical panel thickness ranges.
-
Bonding and mechanical properties
- Surface bond strength and perpendicular tensile strength requirements for the laminate–substrate interface.
- Glue‑line quality criteria to ensure durable adhesion.
-
Substrate protection
- Thickness swell (water vapour protection) requirements to limit substrate swelling under normal interior conditions.
-
Impact resistance
- Surface impact resistance expectations for interior use.
-
Optional properties (informative Annex A) - for special applications and by agreement:
- Screw‑holding (axial withdrawal) performance
- Resistance to elevated temperature (short‑term and long‑term)
- Water vapour resistance, edge swell, flexural strength/modulus, continuous‑load capability
-
Informative annexes
- Reaction to fire (Annex B) and formaldehyde emission information (Annex C).
Applications and who uses it
EN ISO 13894‑2:2015 is used by:
- HPDL and composite board manufacturers for product specification and quality control.
- Furniture and joinery producers specifying panels for cabinetry, interiors and fitted furniture.
- Architects, designers and specifiers selecting decorative laminate panels for interior finishes.
- Suppliers and purchasers negotiating acceptance criteria for boards vs. cut‑to‑size panels.
- Testing laboratories applying ISO 13894‑1 test methods to verify conformity.
This standard helps ensure consistent quality, dimensional stability and bond performance of HPDL composite elements in typical interior environments.
Related standards
Keywords: EN ISO 13894‑2:2015, high‑pressure decorative laminates, HPDL, composite elements, wood‑based substrates, interior use, dimensional tolerances, surface bond strength.
