Overview

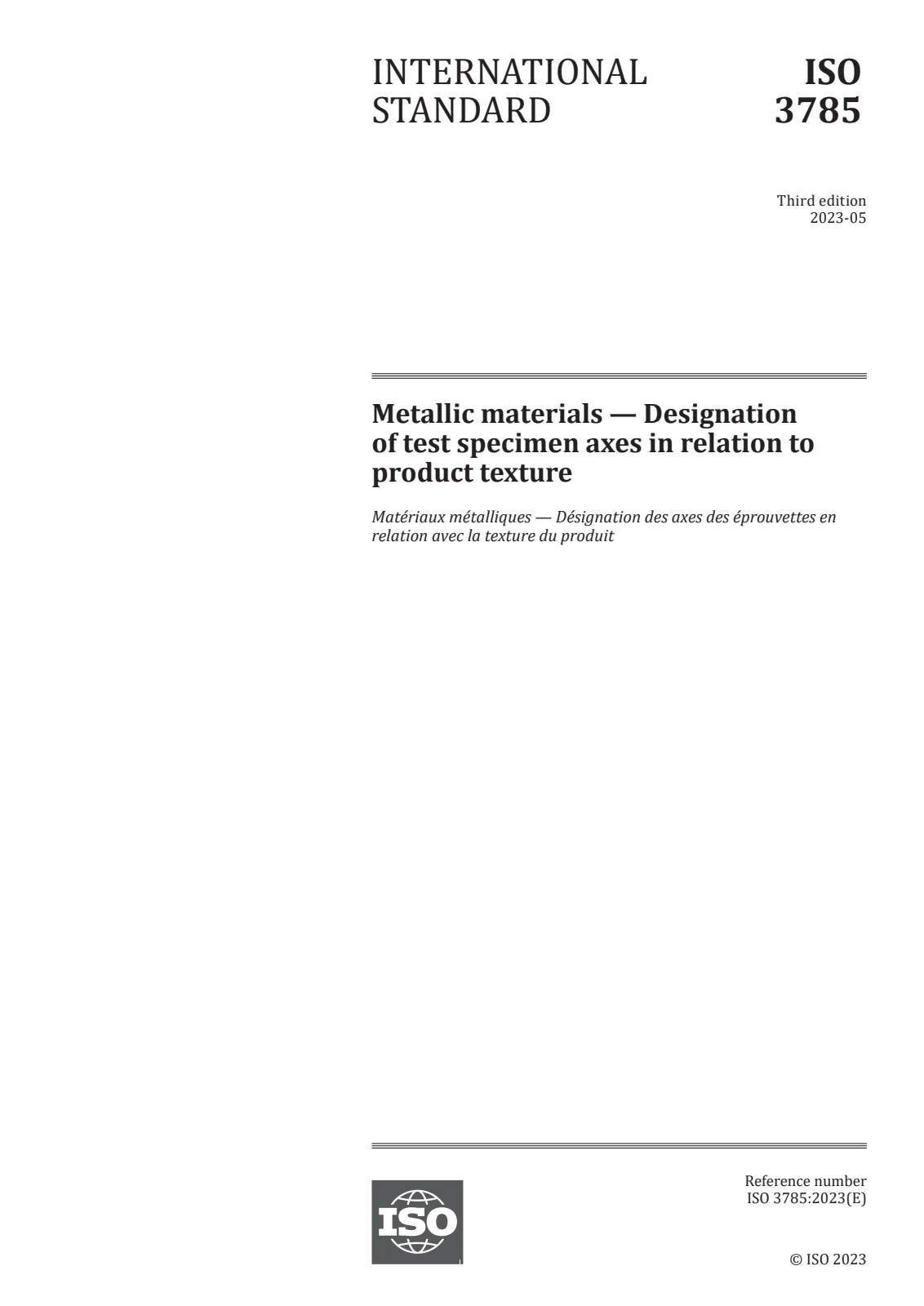

EN ISO 3785:2023 - Metallic materials: Designation of test specimen axes in relation to product texture specifies a clear, uniform method to designate test specimen orientation using an X‑Y‑Z orthogonal coordinate system. The standard applies to both unnotched and notched (or precracked) specimens made from metallic materials with uniform texture (grain flow) that can be unambiguously determined. Specimen orientation must be decided before machining, identified per the designation system, and recorded with test results.
Key topics and requirements
- X‑Y‑Z coordinate convention
- X = direction of principal deformation / maximum grain flow
- Y = direction of least deformation
- Z = normal to the X‑Y plane
- Specimen types covered: sheet, plate, bar (flat‑rolled products), cylinders, thick‑ and thin‑walled tubes (including helical grain flow), castings, and specimens containing welds or produced by additive manufacturing.
- Unnotched and notched specimens: designations and exceptions for specimens aligned with, midway between, or at other angles to the product’s characteristic grain‑flow directions.
- Exceptions:
- Not aligned - use two‑letter designations (e.g., XY, XZ) or specify the angle if at another orientation.
- No grain flow (e.g., some castings) - orientation must be specified on part drawings and test results shall carry no orientation designation.
- Documentation: orientation must be decided and recorded prior to machining; the designation system is intended for use in material specification and comparative testing.
- Additive manufacturing and welds: the 2023 edition includes explicit references for weld testing and a new subclause on additive manufacturing.
Practical applications
- Ensures consistent reporting of mechanical test results (elongation, reduction of area, fracture toughness, impact resistance) where properties depend on grain flow and orientation.
- Used in quality control, materials characterization, failure analysis, and specification of metallic products across industries (steel, aluminium, aerospace, automotive, manufacturing).
- Facilitates repeatable comparisons between batches, suppliers, or processing routes by standardizing specimen orientation reporting.
Who should use this standard
- Materials testing laboratories and technicians preparing specimens
- Metallurgists and materials engineers specifying test programs
- Manufacturers and certification bodies involved in product qualification and quality assurance
- Standards committees and procurement teams requiring unambiguous specimen orientation in material specifications
Related standards and context
- Adopted by CEN as EN ISO 3785:2023, superseding EN ISO 3785:2006.
- Prepared by ISO/TC 164 (Mechanical testing of metals) with input from CEN/TC 459/SC 1.
- Includes references to welding test methods (e.g., ISO 15653) and provides guidance relevant to additive manufacturing test orientations.
Keywords: EN ISO 3785:2023, metallic materials, test specimen axes, product texture, X‑Y‑Z coordinate system, grain flow, specimen orientation, mechanical testing.
