Overview

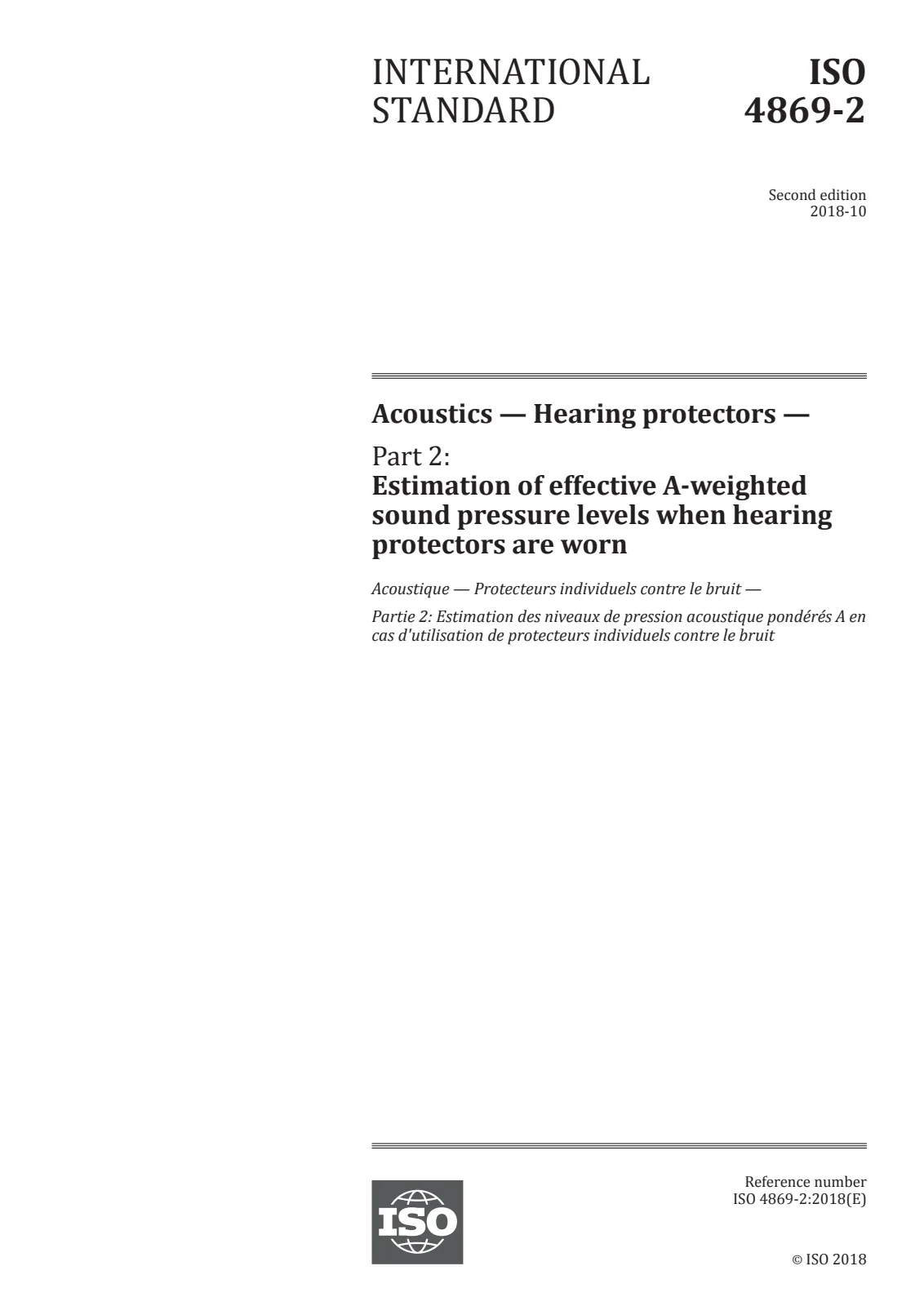

EN ISO 4869-2:2018 - Acoustics: Hearing protectors - Part 2 specifies validated methods to estimate the effective A‑weighted sound pressure level when hearing protectors are worn. It defines three estimation procedures - the octave‑band method, the HML method, and the SNR method - applicable to sound pressure level (Lp) or equivalent continuous sound pressure level (Leq). The standard is intended primarily for steady noise exposures but also covers noises with impulsive components; it may not be suitable for peak sound pressure level measurements.
Key Topics and Requirements
- Three estimation methods
- Octave‑band method: uses octave‑band noise spectrum and octave‑band attenuation data (from ISO 4869-1) to compute the effective A‑weighted level. Considered the reference calculation method.
- HML method: reduces octave‑band data to three values - H (high), M (middle) and L (low) - combined with A‑ and C‑weighted noise levels to estimate effective A‑weighted level.
- SNR method: uses a single‑number rating (SNR) subtracted from the C‑weighted noise level to give the effective A‑weighted level.
- Input data dependencies
- Attenuation data must come from ISO 4869-1 test results. This edition computes H/M/L/SNR on a subject‑by‑subject basis and excludes optional 63 Hz test frequency from HML/SNR calculations.
- Assumptions and limitations
- Valid only if protectors are worn and maintained as in ISO 4869-1 testing and test subjects represent actual users.
- Methods estimate an “effective” sound‑field level (converted from ear canal via open‑ear transfer); effective levels are typically 5–10 dB lower than ear‑canal levels.
- Differences of 3 dB or less are generally insignificant.
- Uncertainty and examples
- Annex E addresses uncertainty of attenuation values and ratings; informative annexes (A–D) give worked examples.
Applications and Who Uses This Standard
- Occupational health & safety professionals: estimate worker exposure with hearing protectors to assess compliance with occupational noise limits.
- Acoustic and industrial hygienists: select appropriate hearing protection and set minimum attenuation criteria.
- Manufacturers and test laboratories: report protection ratings (SNR, HML, octave‑band) and validate product performance.
- Regulators and procurement teams: specify hearing protector requirements for workplaces, industries, and public safety.
- Audiologists and safety trainers: evaluate expected protection for specific noise spectra.
Practical uses include comparing hearing protectors, setting attenuation requirements, and estimating effective A‑weighted levels for risk assessment and hearing conservation programs.
Related Standards
- ISO 4869-1 - Measurement of sound attenuation of hearing protectors (required input data)
- Other parts of the ISO 4869 series (for broader context on hearing protector testing and classification)
Keywords: EN ISO 4869-2:2018, hearing protectors, A-weighted sound pressure level, octave-band method, HML method, SNR method, sound attenuation, ISO 4869-1, occupational noise exposure.
