Overview
EN ISO 8504-5:2026 provides standardized guidance for the preparation of steel substrates before the application of paints and related products, focusing specifically on water jet cleaning methods. Developed by CEN and based on ISO 8504-5:2024, this standard sets out the procedures, required equipment, and application fields for using water jet cleaning to remove existing coatings, corrosion, rust, and surface contaminants from steel surfaces. Meeting the requirements of this standard ensures optimal surface cleanliness and supports durable coating application in industrial and infrastructure projects.
Key Topics
- Water Jet Cleaning Methods: The standard describes various water jet cleaning methods distinguished by pressure and flow parameters. These methods range from low-pressure water cleaning to ultra high-pressure water jetting, each suitable for different types and degrees of surface contamination and coating removal.
- Preparation Grades: Detailed guidance is provided on how to achieve different levels of surface preparation, referencing preparation grades as defined in related standards (e.g., ISO 8501-4).
- Effectiveness and Limitations: Information is given on the effectiveness of individual water jet cleaning methods, including their ability to remove rust, coatings, grease, and water-soluble contaminants. The standard clarifies that water jet cleaning does not create a surface profile but is ideal where a suitable profile already exists.
- Equipment and Procedures: EN ISO 8504-5:2026 outlines the required equipment (pumps, hoses, nozzles, vacuum recovery systems) and safe operating procedures. It specifies selection criteria for equipment based on factors such as water pressure, flow rate, and control mechanisms (manual or remote).
- Health and Safety: Emphasis is placed on safety precautions, the need for trained operators, and the potential hazards associated with high-pressure water jetting.
Applications
EN ISO 8504-5:2026 is widely applicable in industries where the surface preparation of steel is critical for long-lasting coating performance, including:
- Industrial fabrication: Preparation of steel components ahead of painting or coating during manufacturing.
- Infrastructure maintenance: Refurbishment of bridges, pipelines, storage tanks, and offshore platforms to remove degraded coatings and corrosion before the application of protective coatings.
- Shipbuilding and marine industry: Cleaning of steel hulls and superstructures where environmental control is important and dust generation must be minimized.
- Energy sector: Maintenance of structural steel in power plants and other energy facilities.
- Maintenance painting: Spot or full-area removal of coatings where only partially failed coatings need removal while sound coatings are left intact.
The dust-free nature of water jet cleaning allows for work in environments where cleanliness is critical or simultaneous trades must operate nearby. The method is also adaptable to various shapes and sizes of steel structures.
Related Standards
For comprehensive surface preparation and coating performance, EN ISO 8504-5:2026 should be used alongside other international standards, including:

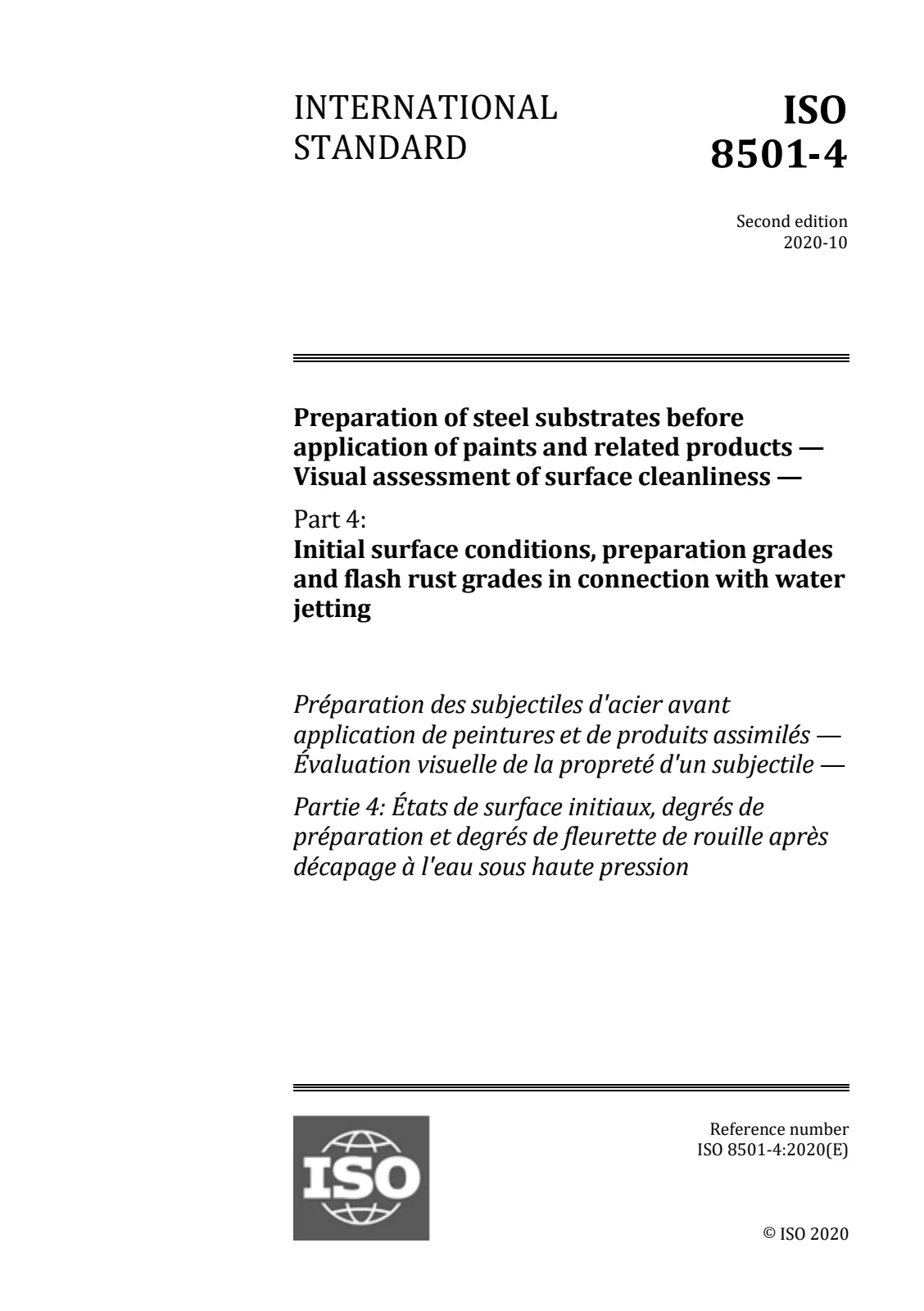

- ISO 8501-4:2020: Visual assessment of surface cleanliness, including preparation and flash rust grades after water jetting.
- ISO 4628-3: Evaluation of degradation and rusting of coating systems.
- ISO 8502 series: Measurement of surface contaminants such as soluble salts, dust, and oils.
- ISO 8503 series: Measurement and assessment of surface roughness and profile.
- ISO 8504 (Parts 1-4): Covers other surface preparation methods such as abrasive blasting, hand and power tool cleaning, and flame cleaning.
Practical Value
Implementing EN ISO 8504-5:2026 ensures:
- Consistent, high-quality surface preparation for steel structures,
- Improved adhesion and performance of applied paint and protective coating systems,
- Reduced risk of premature coating failure due to insufficient removal of corrosion or contaminants,
- Enhanced safety and environmental compliance due to minimized dust and effective containment of effluent,
- Applicability across diverse industries where steel durability and maintenance are paramount.
This standard is a vital reference for project managers, quality controllers, asset owners, and contractors involved in the protective coating of steel substrates, ensuring best practices and compliance with internationally recognized procedures.
