Overview
IEC 60034-2-3:2024 sets out specific test methods for determining the losses and efficiency of converter-fed AC motors, a crucial requirement in modern variable speed drive applications. This international standard by the International Electrotechnical Commission (IEC) provides harmonized procedures for testing induction and synchronous motors operated on variable frequency and variable voltage power supplies. The document addresses the accurate evaluation of efficiency and losses across multiple operational ranges, ensuring comparability of motor designs under standardized conditions in variable frequency power drive systems (PDS), as described in IEC 61800‑9‑2.
Key Topics
- Standardized Test Methods: IEC 60034-2-3:2024 introduces a detailed methodology for determining losses and efficiencies in converter-fed AC motors, including advanced approaches such as direct measurement, summation of losses, alternate efficiency determination, and calculation-based methods.
- Interpolation Procedure: The standard specifies an interpolation process that enables users to determine motor losses and efficiency at any operational point (torque and speed) based on tests at seven standardized load points. This includes the constant flux range, field weakening range, and overload range.
- Comparable Converter Approach: For low voltage motors, the standard introduces the use of a ‘comparable’ two-level voltage source converter during testing, providing repeatable and objective results for regulatory and comparative purposes.
- Instrumentation Requirements: Special attention is given to the selection and calibration of measuring equipment, particularly to address the effects of high frequency components typical in converter supply that influence motor losses.
- Harmonization and Extensions: This second edition aligns procedures with IEC 60034-2-1 and extends the interpolation procedure to include the field weakening range, broadening its applicability.
Applications
IEC 60034-2-3:2024 is directly relevant to a wide range of stakeholders in the motor and drive industry:
- Motor Manufacturers: Ensure motor designs comply with international standards for efficiency when used with frequency converters, facilitating market access and regulatory compliance.
- Test Laboratories and Certification Bodies: Use standard test methods to provide validated, comparable efficiency data for converter-fed AC motors, supporting product certification and labeling.
- System Integrators: Select and specify motors based on standardized efficiency data, optimizing the energy performance of variable speed drive applications in industrial plants and infrastructure.
- Regulatory Authorities: Reference harmonized test procedures for verifying compliance with national or regional energy efficiency regulations for motors operated with power drive systems.
- Engineers and Consultants: Accurately compare different AC motor types and configurations within variable frequency drive systems for improved system design and lifecycle energy savings.
Related Standards
- IEC 60034-1: Rotating electrical machines - Part 1: Rating and performance
- IEC 60034-2-1: Rotating electrical machines - Standard methods for determining losses and efficiency from tests (excluding machines for traction vehicles)
- IEC 60034-30-1: Efficiency classes of line operated AC motors (IE code)
- IEC 60034-30-2: Efficiency classes of variable speed AC motors (IE code)

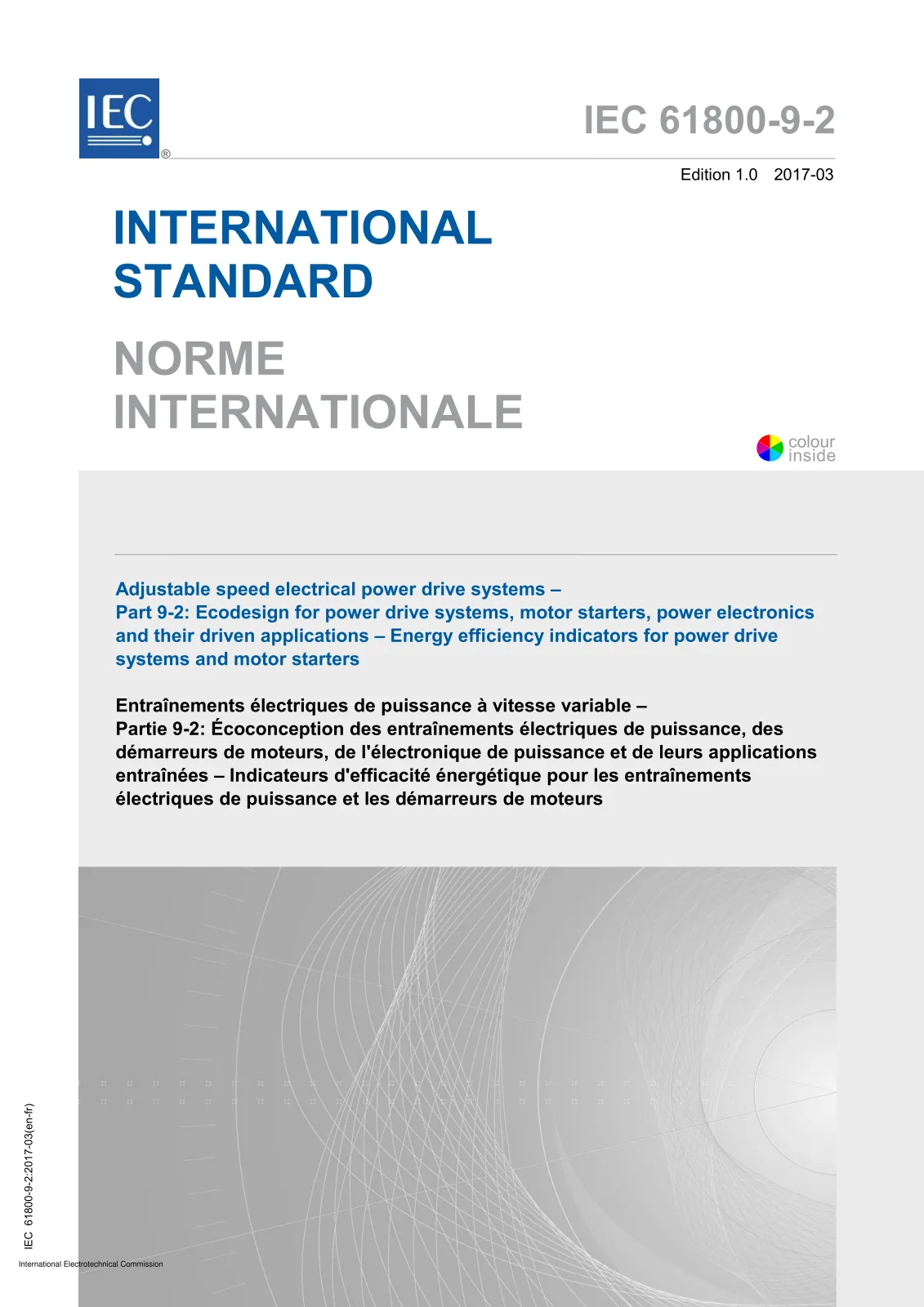

- IEC 61800-9-2: Adjustable speed electrical power drive systems - Energy efficiency indicators for power drive systems and motor starters
These standards collectively provide cohesive guidance for the assessment and classification of AC motor efficiency, whether operating on sinusoidal supply or converter-fed variable frequency systems.
With its focus on converter-fed motor testing, efficiency measurement, and harmonized procedures, IEC 60034-2-3:2024 is essential for industry professionals aiming to improve the energy performance, regulatory compliance, and competitiveness of variable speed AC motor solutions.
