Overview
IEC 60076-8:1997 - Power transformers: Application guide is an IEC guidance document for users of power transformers complying with the IEC 60076 series. It replaces IEC 60606 and provides practical information on service behaviour, electromagnetic characteristics and application issues rather than mandatory manufacturing requirements. The guide helps engineers, specifiers and utilities understand how transformer connections, magnetic circuit designs and system conditions affect performance in real networks.
Key topics
The standard addresses operational and application-related topics including:
- Transformer connections and magnetic circuit behavior
- Characteristic properties of Y, D and Z (zigzag) windings, three-limb, five-limb and shell-form cores.
- Zero-sequence phenomena, neutral currents, magnetic saturation and inrush.
- Fault and short-circuit considerations
- System fault currents for various winding combinations and earthed neutrals.
- Calculation methods for short-circuit currents in three-winding and auto-connected transformers.
- Parallel operation and loading
- Conditions and limits for parallel operation of transformers in three-phase systems.
- Calculation of voltage drop or rise under load and three-winding load loss calculation.
- Specification and selection
- Guidance on selecting rated quantities and tapping ranges (tapchanger considerations) based on prospective loading.
- Special applications
- Use of conventional transformers for convertor (rectifier/inverter) loading.
- Measurement and testing
- Guide to measurement techniques and accuracy when measuring transformer losses.
- Additional material
- Annex with relations for single-phase and two-phase earth faults.
Practical applications
IEC 60076-8 is primarily used by:
- Transformer designers and manufacturers - for understanding application constraints and specifying neutral/tertiary arrangements.
- Power system and utility engineers - for sizing, earthing strategy, fault-current analysis, and parallel-operation assessment.
- Specifiers and procurement teams - to define rated quantities, tap ranges and acceptable loading for purchase contracts.
- Test laboratories and commissioning teams - for measurement guidance on losses and interpretating inrush/zero-sequence effects.
- Industrial users integrating convertor loads - for applying conventional transformers safely with rectifier/inverter equipment.
Using IEC 60076-8 helps reduce operational risk (neutral overcurrents, stray-flux heating), ensure correct tap and rating selection, and improve reliability when paralleling transformers or connecting convertor loads.
Related standards
Relevant IEC and international references cited in the guide include:
- IEC 60076 series (Part 1, Part 3, etc.)

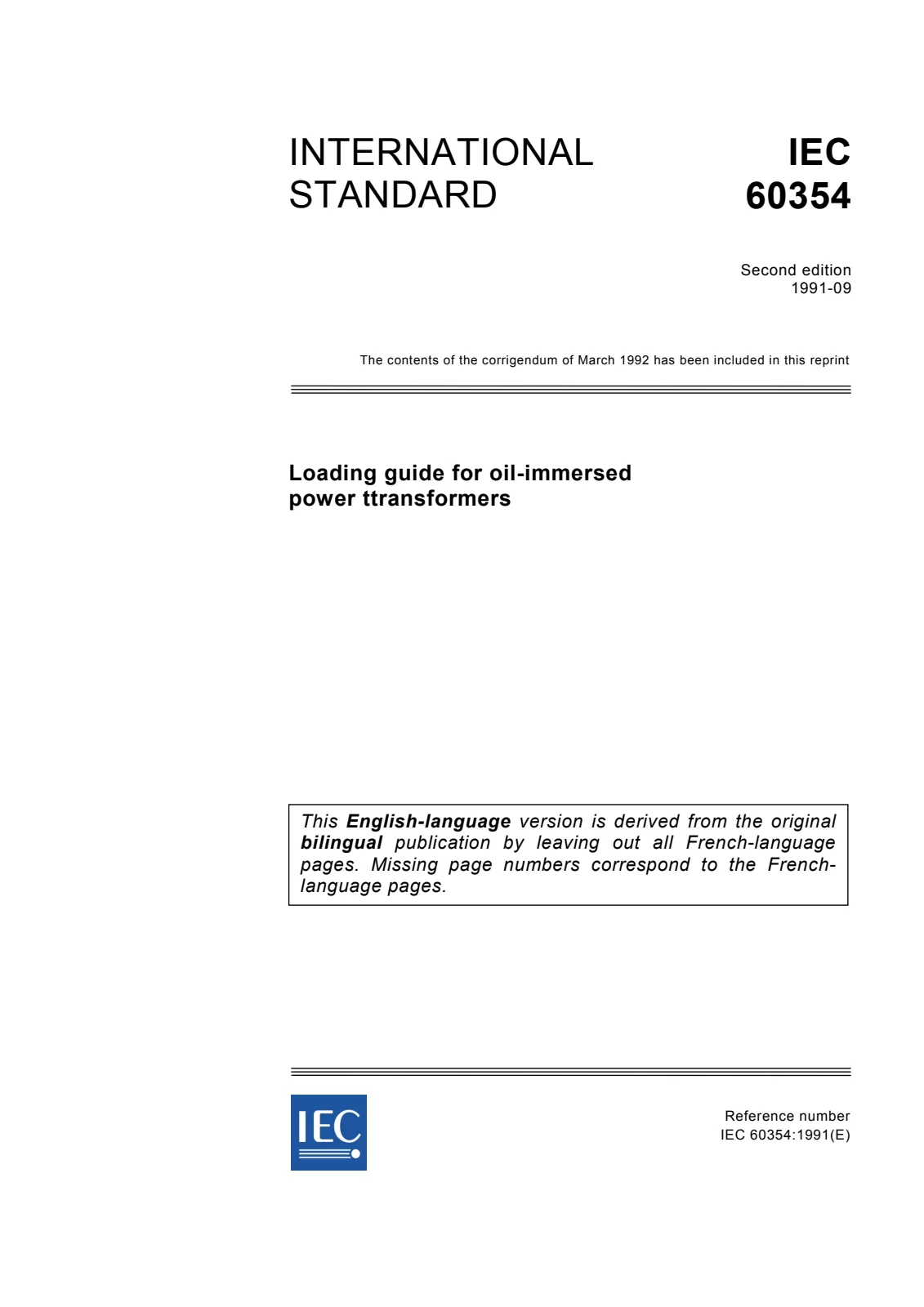

- IEC 60354 (oil-immersed transformer loading guide)
- IEC 60905 (dry-type transformer loading guide)
- IEC 60909 (short-circuit current calculations)
- IEC 60722 (impulse testing guidance)
- IEC 61378-1 (convertor transformers)
- ISO 9001 (quality systems)
Keywords: IEC 60076-8, power transformers application guide, zero-sequence, parallel operation, voltage drop calculation, transformer tap selection, convertor transformers, loss measurement.
