Overview
IEC 60455-3-4:2003 is an international standard published by the International Electrotechnical Commission (IEC) focusing on resin-based reactive compounds used for electrical insulation. This specific document addresses filled polyurethane compounds and sets the requirements for these materials in their cured form, covering classes PUR-F-4 to PUR-F-8. It is part of the broader IEC 60455 series, which provides unified specifications and testing methods for resinous insulating materials used across the electrical and electronics industries.
Key Topics
-
Scope and Purpose
Defines requirements for filled polyurethane resinous compounds, ensuring they meet essential electrical insulation properties when cured.
-
Normative References
Essential related standards include IEC 60455-2:1998 (methods of test) and IEC 60707:1999 (flammability testing), underscoring the importance of consistent testing protocols.
-
Material Properties
The standard outlines critical physical and chemical properties:
- Density
- Viscosity
- Shelf life (stability in uncured form)
- Gel time (curing characteristics)
- Exothermic temperature peak during polymerization
-
Temperature Conditions
Requirements are generally specified at ambient conditions of (23 ± 2) °C, with provisions for supplementary tests for materials intended for low-temperature applications.
-
Test Methods
Testing procedures referenced in IEC 60455-2 ensure reliable and reproducible evaluation of polyurethane compounds.
Applications
Filled polyurethane compounds specified in IEC 60455-3-4 are extensively used in the electrical insulation sector for various components, including:
- Insulating parts in electrical equipment
- Encapsulation and potting materials for electronic modules
- Protective coatings and fillers in transformers, cables, and motors
- Insulators in high-voltage and medium-voltage apparatus
The standard ensures that these compounds provide robust mechanical and electrical protection, resist thermal and environmental stresses, and maintain their performance over service life, thus supporting stable and safe operation of electrical systems.
Related Standards
IEC 60455-3-4 is part of the IEC 60455 series comprising:
- IEC 60455-1: Definitions and general requirements for resin-based reactive compounds.
- IEC 60455-2: Methods of test for electrical insulating resin compounds.
- IEC 60455-3: Specifications for individual materials (of which Sheet 4 focuses on filled polyurethane compounds).

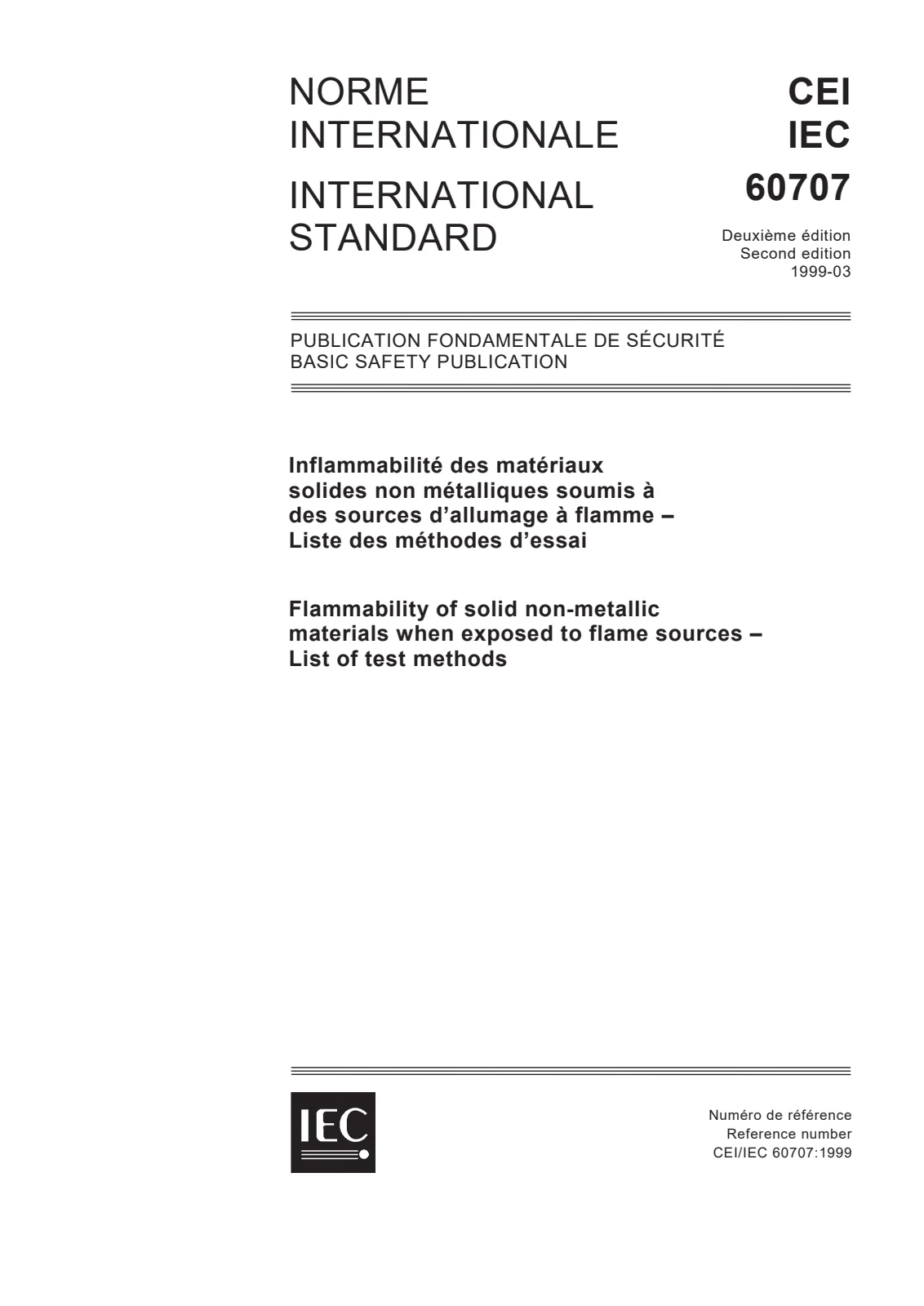

Additionally, IEC 60707:1999 is relevant as it provides flammability test methods for solid non-metallic materials, ensuring the fire safety of polyurethane compounds in electrical applications.
Summary
IEC 60455-3-4:2003 serves as a critical reference for manufacturers, engineers, and quality assurance specialists involved with filled polyurethane reactive compounds for electrical insulation. By defining stringent requirements for the cured state of these materials, the standard ensures reliable insulation performance, compatibility with international testing methods, and alignment with safety protocols. Adherence to this standard facilitates improved product quality, regulatory compliance, and interoperability across global electrical industries.
Keywords: IEC 60455-3-4, filled polyurethane compounds, electrical insulation, resin-based reactive compounds, insulation materials standard, electrical insulating compounds, polyurethane specifications, electrical safety materials, polymer insulation testing.
