Overview
IEC 60475:2011, titled Method of sampling insulating liquids, is an international standard published by the International Electrotechnical Commission (IEC). It defines standardized procedures for sampling insulating liquids used in various electrical equipment and delivery containers. This standard is essential for ensuring reliable and consistent analysis of insulating oils, which are crucial for the safe and efficient operation of electrical apparatus.
Key updates in the 2011 edition include the withdrawal of askarels, enhanced health and safety recommendations, and detailed guidance on sampling oils from electrical equipment using appropriate devices for laboratory testing.
Key Topics
-
Scope of Application
IEC 60475:2011 applies to insulating liquids with viscosities less than 1500 mm²/s (cSt) at sampling temperature, including mineral oils, synthetic esters, natural esters, vegetable oils, and silicones. The standard covers oils in delivery containers like drums and tankers, and electrical equipment including power and instrument transformers, reactors, bushings, oil-filled cables, capacitors, switchgear, and load tap changers.
-
Sampling Procedures
The standard details precise methodologies for sampling insulating liquids to ensure representative and uncontaminated samples. It covers:
- Sampling from delivery containers (e.g., drums, tanker trucks) using devices such as thief dippers, cream dippers, pipettes, and siphons.
- Sampling from in-service electrical equipment with various devices including syringes, ampoules, flexible metal bottles, and rigid containers suited for different types of oil tests, such as dissolved gas analysis (DGA).
-
Sample Handling
Proper storage, transportation, and labeling methods are outlined to maintain sample integrity until laboratory analysis. This involves selection of compatible containers and attention to sealing to prevent contamination or changes in sample characteristics.
-
Health, Safety & Environmental Protection
The standard emphasizes safe handling of insulating oils, highlighting risks such as eye irritation and potential PCB contamination in older mineral oils. It advises compliance with local regulations for oil disposal and environmental protection to minimize risks to workers, the public, and ecosystems.
Applications
IEC 60475:2011 is widely used in the electrical power industry for the following purposes:
-
Quality Control of New Insulating Liquids
Ensures that oils delivered in containers meet quality requirements by taking samples from zones most likely to contain impurities, facilitating tests like electric strength and contamination analysis.
-
Condition Monitoring of Electrical Equipment
Sampling oil directly from transformers, reactors, and other devices supports diagnostic testing such as dissolved gas analysis, moisture content, and particle contamination. This aids in predictive maintenance and enhances equipment reliability.
-
Environmental and Safety Compliance
Provides guidelines to reduce occupational hazards and prevent environmental pollution when handling, sampling, and disposing of insulating liquids.
-
Standardized Testing Protocols
Enables laboratories worldwide to perform consistent and comparable tests through adherence to a unified sampling methodology.
Related Standards
To complement IEC 60475:2011 in insulating liquid management and testing, the following standards are relevant:
-

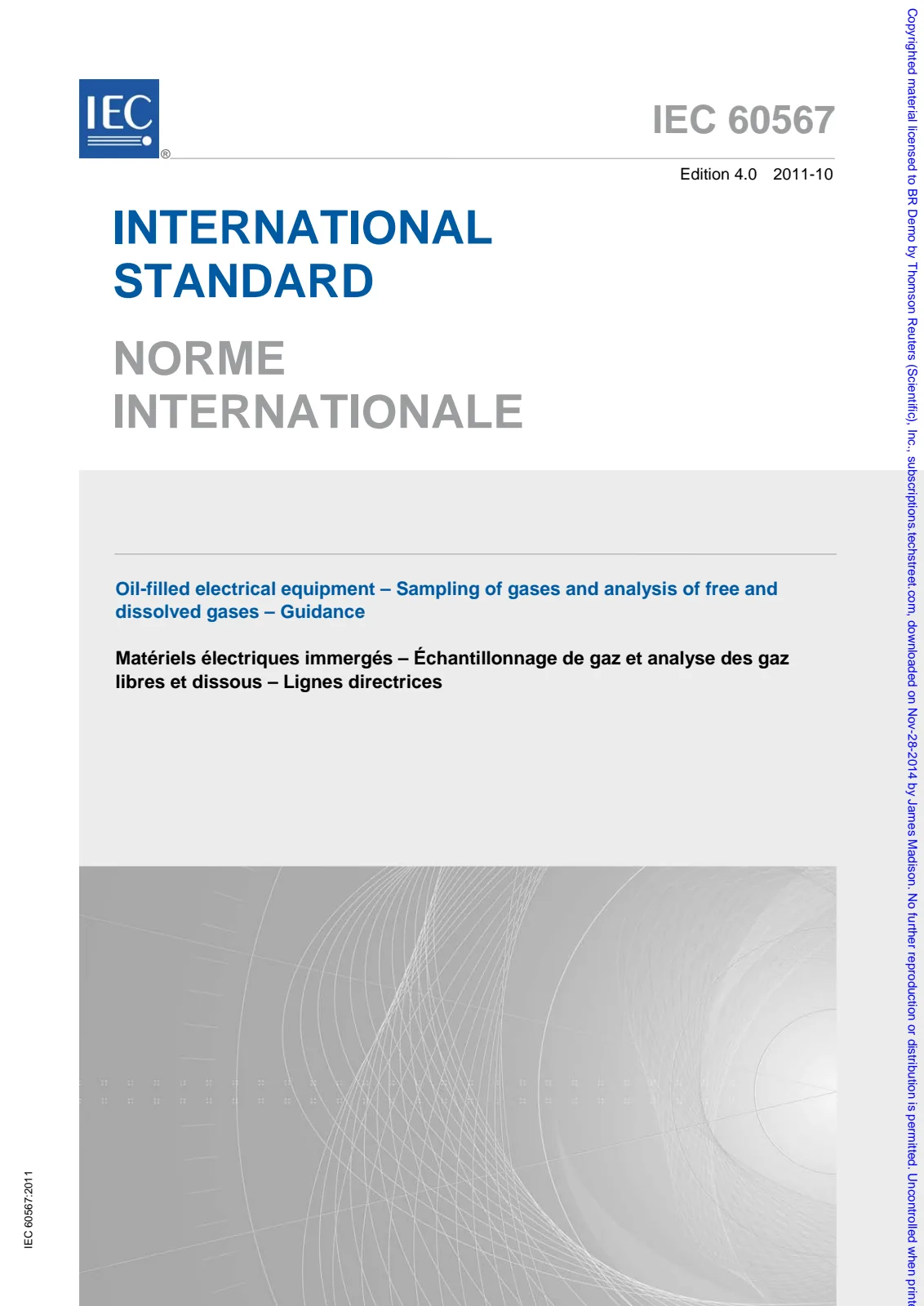

IEC 60567:2011 – Oil-filled electrical equipment – Sampling of gases and analysis of free and dissolved gases – Guidance
Focuses on gas sampling and analysis in insulating oils, often used alongside IEC 60475 for comprehensive fluid diagnostics.
-
IEC 60970 – Insulating liquids – Methods for counting and sizing particles
Provides standardized procedures for evaluating particulate contamination in insulating oils sampled per IEC 60475 methods.
-
Environmental and Safety Standards
Local and international regulations governing hazardous materials handling and waste disposal should be consulted alongside IEC 60475 to ensure full compliance.
