Overview
IEC 60500:2017 is an international standard published by the International Electrotechnical Commission (IEC) that defines the essential properties and characteristics of hydrophones used in underwater acoustics. Specifically, it covers hydrophones operating in the frequency range from 1 Hz to 500 kHz. Hydrophones are devices designed to detect and measure underwater sound pressure levels, employing piezoelectric sensor elements, and can include versions with or without integral pre-amplifiers.
This standard sets out how to report the relevant hydrophone characteristics systematically, ensuring clarity and uniformity across manufacturers and users. It also provides guidance on selecting hydrophones suited to different applications, emphasizing their performance metrics such as sensitivity, frequency response, directionality, and stability under various environmental conditions.
Significant technical updates in the 2017 edition include an extended upper frequency limit-from 100 kHz in previous editions up to 500 kHz-and improved format compatibility with related IEC standards, notably IEC 62127-3:2007 and IEC 60565:2006. This harmonization facilitates integration in the broader ecosystem of underwater sound measurement standards.
Key Topics
-
Hydrophone Performance Characteristics
IEC 60500 outlines fundamental parameters crucial for evaluating hydrophone performance:
- Sensitivity: The hydrophone’s ability to convert acoustic pressure into electrical signal.
- Frequency Response: Operating frequency band and the frequency-dependent behavior of the hydrophone.
- Directional Response: Angular sensitivity to sounds coming from different directions underwater.
- Dynamic Range: Includes linearity limits, maximum overload sound pressure levels, and equivalent noise spectral density.
- Electrical and Mechanical Requirements: Specifications that cover electromagnetic interference resilience and durability.
- Environmental Stability: Sensitivity stability across variations in temperature, depth (pressure), and over time.
-
Reporting and Labeling
The standard prescribes consistent methods to report hydrophone specifications, ensuring transparency and comparability of products. Important parameters such as end-of-cable capacitance and diffraction factors are clearly defined with measurement conditions described.
-
Annex A - Selection Guidance
An informative annex provides practical recommendations for selecting the appropriate hydrophone based on its performance attributes and application needs, including:
- Sensitivity and self-noise trade-offs.
- Frequency and directional response considerations.
- Electrical connectivity and stability factors.
Applications
IEC 60500:2017 applies to hydrophones used in a variety of underwater acoustic fields where accurate sound pressure measurement is essential. Typical applications include:
-
Marine Biology and Environmental Monitoring
Monitoring aquatic life and marine environments, including detecting biological sounds such as whale songs or fish communication.
-
Underwater Communication and Navigation
Supporting sonar systems, acoustic telemetry, and underwater positioning technologies.
-
Seismic and Geophysical Research
Detecting underwater seismic activity or ocean floor mapping through acoustic measurements.
-
Offshore Industry
Inspecting underwater infrastructure, assessing noise pollution, and damage prevention in oil rigs and submerged pipelines.
-
Defense and Security
Submarine detection and underwater threat monitoring using sensitive sound detection equipment.
By following IEC 60500, manufacturers and users ensure that hydrophones meet internationally agreed capabilities, promoting reliability, accuracy, and interoperability in underwater sound measurement tasks.
Related Standards
IEC 60500:2017 aligns and is compatible with several other IEC and ISO standards, including:
-
IEC 62127-3:2007 – Ultrasonics specification for hydrophone calibration methods, aiding in conformity with standardized calibration procedures.
-

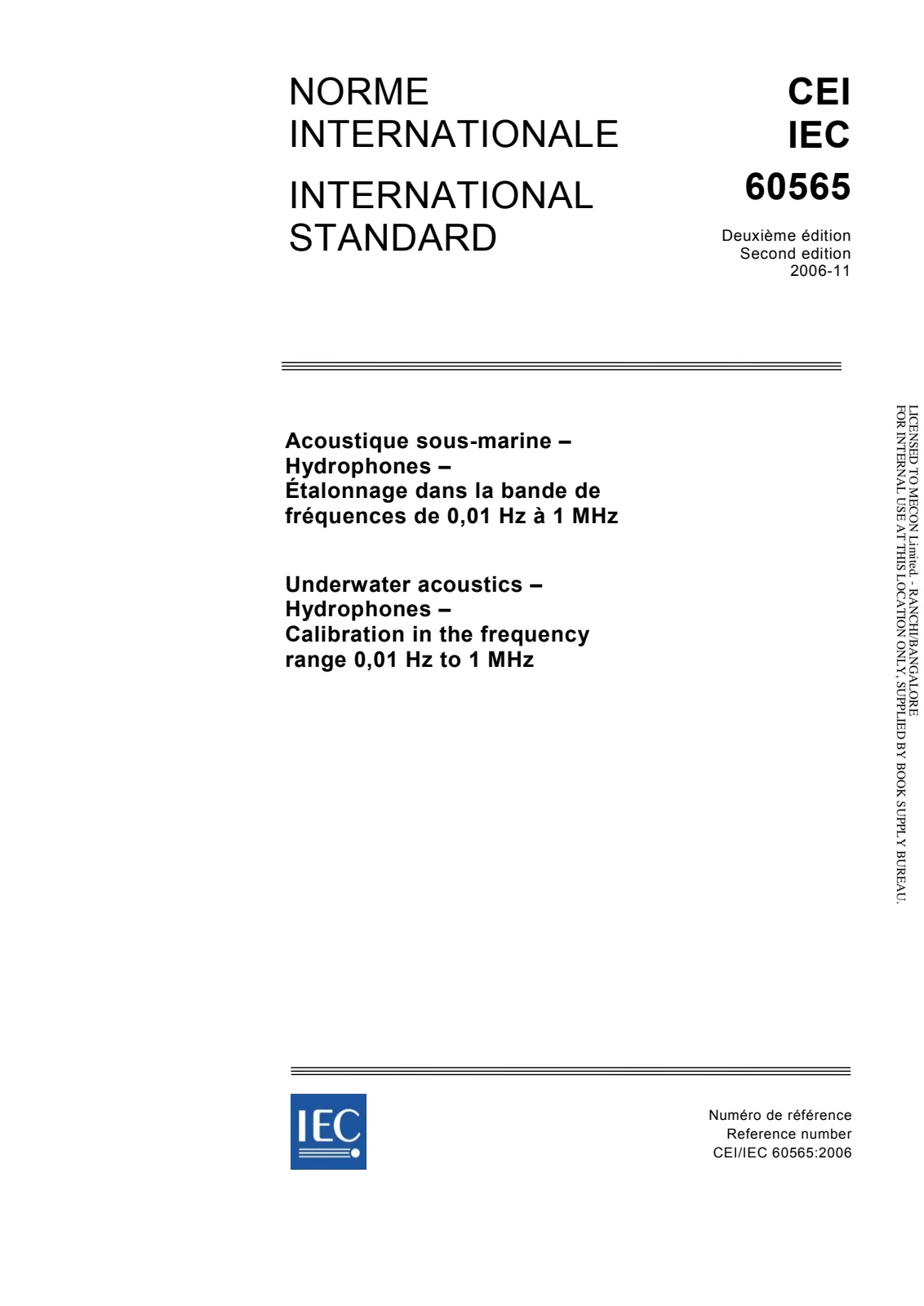

IEC 60565:2006 – Underwater acoustics standard detailing the measurement of hydrophone characteristics, complementing the scope of IEC 60500 for coherent underwater sound data.
-

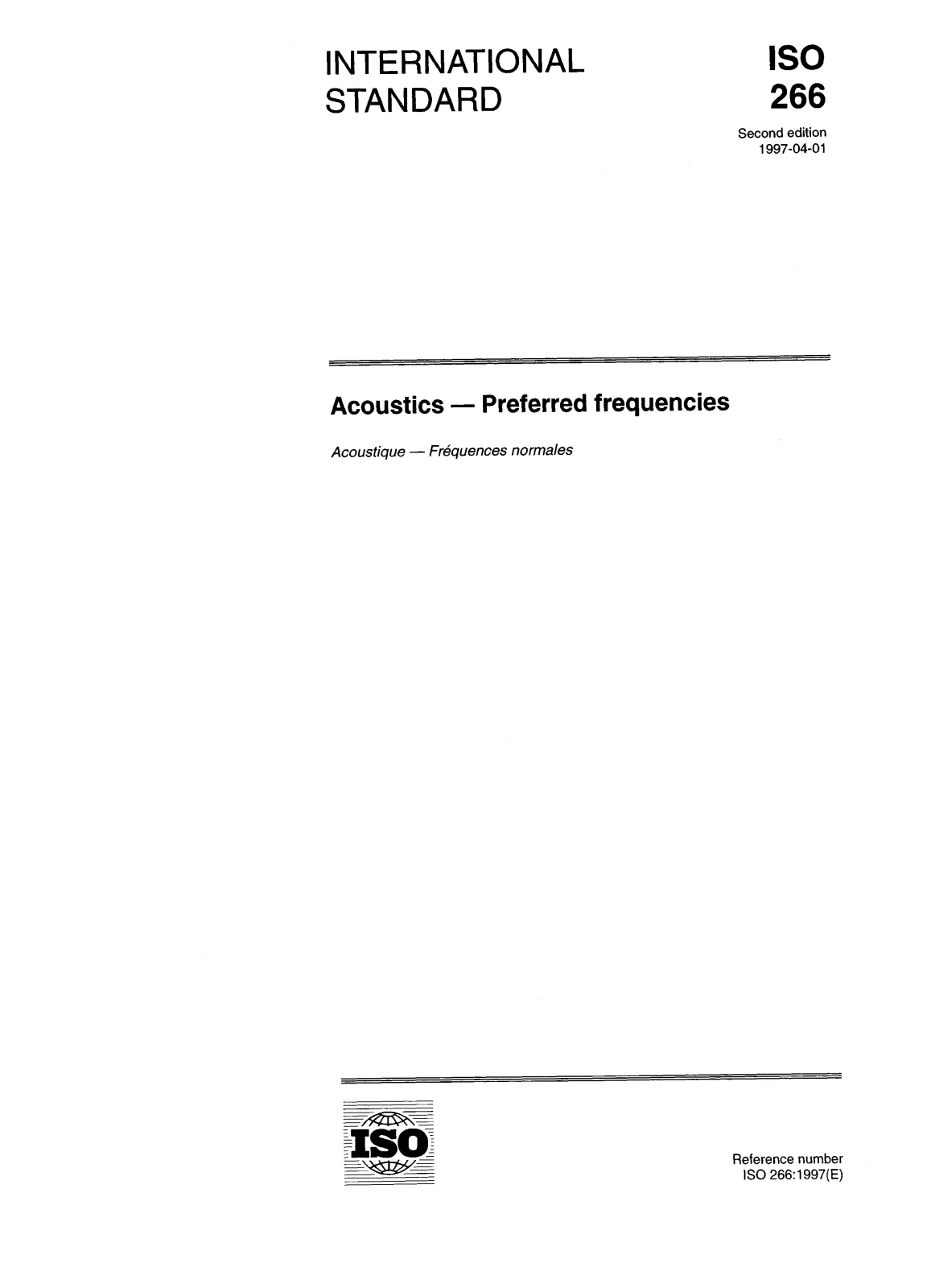

ISO 266:1997 – Acoustics - Preferred frequencies, providing frequency benchmarks relevant to acoustic equipment, referenced in IEC 60500 normative documents.
-
IEC Technical Committee 87 (Ultrasonics) – The committee responsible for the development and maintenance of standards related to ultrasonic and underwater acoustic technology.
Adhering to IEC 60500:2017 assures compliance with the latest best practices in hydrophone technology and fosters international cooperation in underwater acoustics research and industry.
