Overview
IEC 60512-11-7:2003 is an international standard published by the International Electrotechnical Commission (IEC) that specifies a standardized test method-Test 11g-for evaluating the effects of a controlled atmosphere containing very low concentrations of mixed corrosive gases on electrical contacts and connectors used in electronic equipment. Part of the IEC 60512 series, this standard focuses on climatic and environmental testing to ensure connector reliability and durability under corrosive conditions posed by gaseous pollutants.
Key Topics
- Scope and Purpose: The test simulates real-world environmental exposure by subjecting electrical connector specimens to atmospheres polluted by gases such as hydrogen sulfide (H₂S), nitrogen oxides (NO₂), chlorine (Cl₂), and sulfur dioxide (SO₂) at parts-per-million levels to assess corrosion impact on electrical performance.
- Test Methods: Four defined methods vary in gas composition, concentration, temperature, humidity, and gas flow parameters, providing different severity levels to adapt testing to specific requirements. Test durations typically range from 4 to 21 days.
- Specimen Preparation: Connectors are prepared according to detailed specifications, which define mounting, wiring, mechanical condition (mated/unmated), and pre-test operations to reflect actual use conditions.
- Measurements and Evaluation: Initial and final electrical contact resistance measurements are conducted using millivolt or specified current methods (IEC 60512-2-1 and IEC 60512-2-2). Mechanical function and visual inspection (IEC 60512-13-1 and IEC 60512-1-1) verify connector integrity post-test.
- Environmental Conditions: Testing is carried out at controlled temperature (~25–30°C) and relative humidity (~70–75%), with continuous renewal of the mixed gas atmosphere to simulate realistic corrosion stress without electrical loading during exposure.
Applications
IEC 60512-11-7:2003 is essential for manufacturers and quality assurance teams involved in:
- Connector Design and Qualification: Validating corrosion resistance of new connector designs in controlled, repeatable test environments.
- Reliability Testing in Harsh Environments: Ensuring connectors used in automotive, industrial, telecommunications, and aerospace sectors can withstand gaseous pollution without degradation of electrical performance.
- Material and Coating Selection: Assessing the durability of contact materials and protective coatings to prevent corrosion under mixed-gas atmospheres.
- Standard Compliance and Certification: Demonstrating compliance with international climatic testing requirements for electronic connectors to gain market acceptance and regulatory approval.
Related Standards
- IEC 60068-2-60:1995 – Environmental Testing, Part 2: Tests – Flowing Mixed Gas Corrosion Test (Test Ke) – Provides the underlying test procedures for the mixed gas environment used in IEC 60512-11-7.

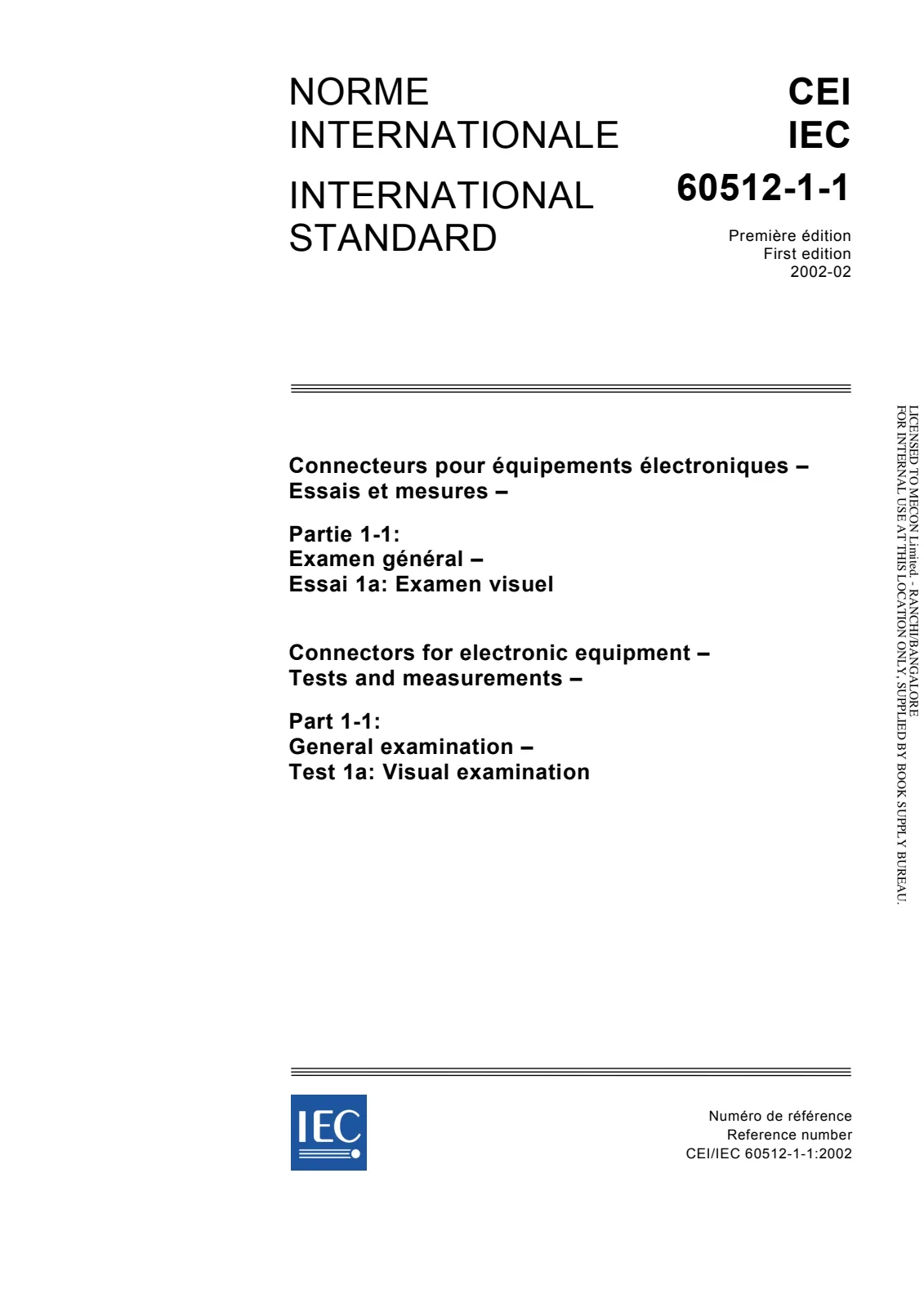

- IEC 60512-1-1:2002 – Connectors for Electronic Equipment – Tests and Measurements – General Visual Examination (Test 1a).
- IEC 60512-2-1:2002 – Electrical Continuity and Contact Resistance Tests – Millivolt Level Method (Test 2a).
- IEC 60512-2-2: Electrical Continuity and Contact Resistance Tests – Specified Test Current Method (Test 2b).
- IEC 60512-13-1:1996 – Mechanical Operating Tests – Engaging and Separating Forces (Test 13a) to verify mechanical functionality post-exposure.
By integrating the guidance and test protocols from these interlinked IEC standards, organizations can comprehensively assess both electrical and mechanical stability of connectors subjected to mixed gas corrosion, strengthening product reliability in environmentally challenging applications.
