Overview
IEC 60512-16-21:2012 is an international standard developed by the International Electrotechnical Commission (IEC) that outlines a mechanical test method to evaluate whisker growth on connectors for electronic equipment. Specifically, this standard specifies Test 16u: Whisker test via the application of external mechanical stresses to assess the propensity for tin and tin-alloy plated parts on connectors to develop metallic whiskers caused by external mechanical stress during their lifecycle stages such as after wire termination, soldering, mounting, or mating with counterparts.
The standard focuses solely on whisker growth triggered by external mechanical stresses and excludes whiskers formed due to internal stresses or intermetallic compound diffusion. It serves as a valuable testing method when required by detail specifications within the scope of IEC Technical Committee 48, which deals with electromechanical components and mechanical structures for electronic equipment.
Key Topics
-
Whisker Growth on Connectors: Metallic whiskers are filament-like protrusions that naturally grow from tin or tin-alloy plating surfaces under certain conditions. This standard targets whiskers caused by mechanical deformation, which can compromise the reliability and performance of electronic connectors.
-
Testing Methodology: The whisker test involves applying defined external mechanical stresses to the plated contact surfaces of connectors under normal ambient conditions, followed by microscopic measurements to detect whisker formation and length.
-
Measurement Techniques: Optical stereomicroscopes with at least 50X magnification are used for detecting whiskers as small as 10 µm, equipped with accurate scales to measure whisker length. Scanning electron microscopes (SEM) may also be employed to closely inspect whisker morphology and growth.
-
Specimen Preparation: Connectors tested should be prepared as they would be for actual use, including termination, soldering, and mounting processes. Specimens must also be selected directly from manufacturing lines to ensure representative test results.
-
Limitations and Scope: The test does not cover whiskers stemming from internal mechanical, thermal, or intermetallic stresses and does not incorporate accelerated environmental testing conditions since external mechanical whisker growth mechanisms differ fundamentally from internal stress mechanisms.
Applications
The IEC 60512-16-21 standard is widely applied in the testing processes for:
-
Connector Qualification: Ensuring connectors used in electronic devices meet reliability and safety criteria by controlling whisker-induced failure risks.
-
Quality Assurance in Manufacturing: Providing manufacturers with repeatable test methods to identify and mitigate whisker formation during assembly and use.
-
Product Development: Informing design improvements for tin and tin-alloy plating processes to reduce whisker susceptibility in electronic connectors.
-
Risk Assessment: Evaluating whisker growth under mechanical stresses encountered in real-life applications such as wire termination and multiple mating cycles.
-
Compliance Verification: Meeting regulatory or customer-specific requirements for electronic connector reliability involving whisker growth resistance.
Related Standards
- IEC 60512-1 – General tests and measurements for connectors for electronic equipment.
- IEC 60068-2-82 – Whisker test methods associated with internal mechanical stresses on electronic components.
- IEC 60068-2-58 – Environmental tests related to solderability and resistance to soldering heat.

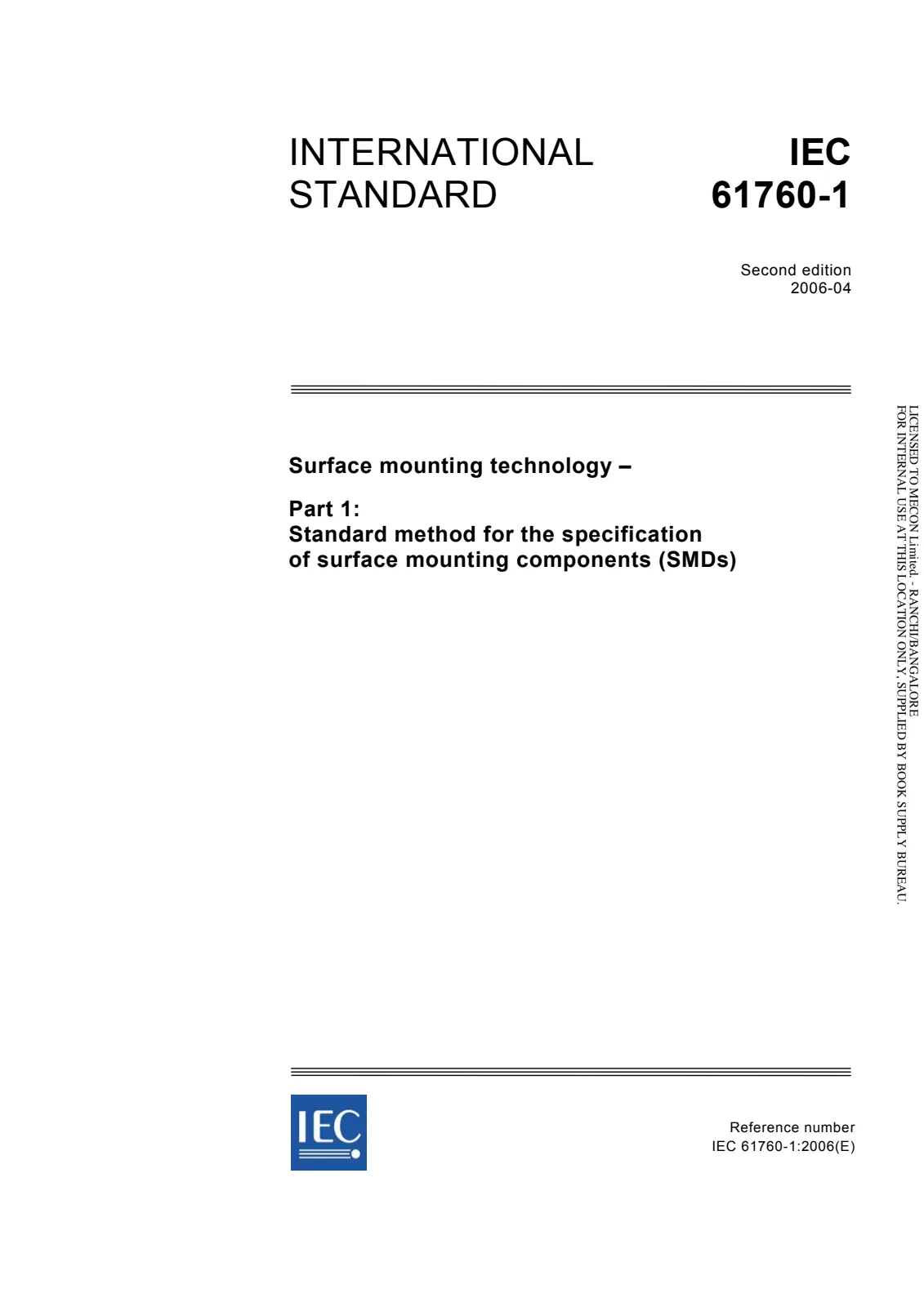

- IEC 61760-1 – Standard specifying surface mounting components (SMDs) requirements.

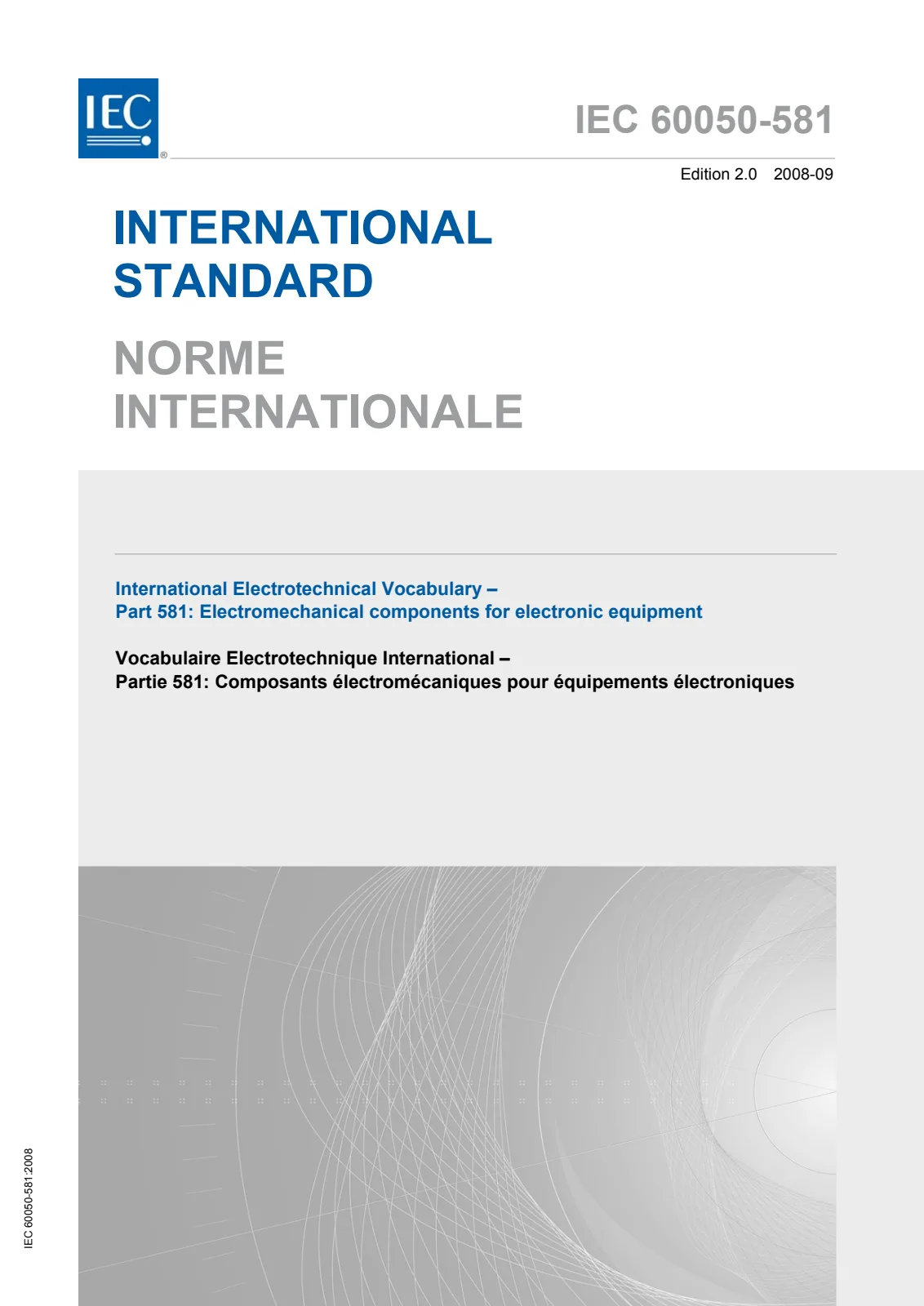

- IEC 60050-581 – Electromechanical components vocabulary relevant to connectors and terminations.
Keywords
whisker growth, external mechanical stress, tin plating, tin-alloy plated connectors, mechanical tests, electronic equipment connectors, soldering, wire termination, IEC 60512, connector reliability, whisker test method, electromechanical components.
By adhering to IEC 60512-16-21:2012, manufacturers and engineers can effectively evaluate and control whisker formation due to mechanical stresses, thereby enhancing the longevity and reliability of electronic connectors in diverse applications.
