Overview
IEC 60512-9-3:2011 is an international standard published by the International Electrotechnical Commission (IEC). It specifies a standardized method for endurance testing of connectors used in electronic equipment. The focus of this part (Part 9-3) is on Test 9c, which evaluates the mechanical operation of connectors during engaging and separating cycles while subjected to an electrical load. This test assesses the functional mechanical and electrical endurance of connectors under normal operating conditions, simulating real-world usage where connectors repeatedly mate and unmate under electrical stress.
This second edition replaces the earlier 1992 edition (Test 9c of IEC 60512-5), and introduces technical revisions including circuit wiring in parallel for multi-circuit connectors, and updated test procedure clauses.
Key Topics
-
Test Scope and Objective
The test measures the durability of connectors when subjected to mechanical engagement and separation cycles combined with electrical load, ensuring connectors maintain performance throughout their service life.
-
Preparation of Specimens
Specimens include connectors fully assembled with terminations and cables as per detailed specifications. Mounting follows manufacturer instructions or specific test details.
-
Electrical Loading
The test requires connectors to be engaged and separated while carrying a specified electrical load. The load parameters-current, voltage type (AC/DC), and frequency-are defined in the detail specification for the connector. Typical circuits include resistive, capacitive, and inductive elements to simulate real operational conditions.
-
Mechanical Operation Parameters
Connectors are cycled at a controlled speed of 50 ± 5 mm/s for engaging and separating unless otherwise specified. Each full cycle consists of one engagement and one separation with a pause of at least 20 seconds between operations.
-
Environmental Conditions
Tests are normally conducted under IEC standard conditions (IEC 60068-1). If required, tests can be performed at low air pressure simulating high-altitude environments, consistent with IEC 60068-2-13.
-
Measurements and Assessments
The testing process includes:
- Initial visual inspections and measurements for contact resistance, insulation resistance, voltage proof, and sealing performance.
- Monitoring contact resistance during cycling.
- Final evaluations to verify connector integrity and performance after endurance testing.
-
Specification and Documentation
Detail specifications must include parameters such as specimen preparation, applied electrical loads, mechanical operation speeds, number of cycles, and environmental conditions.
Applications
IEC 60512-9-3:2011 is widely applicable to manufacturers, testing laboratories, and quality assurance teams involved in the design and validation of electrical connectors for electronic devices. It is crucial for ensuring:
-
Reliability of Connectors in Electronics
The standard ensures connectors can withstand repetitive mechanical operations and electrical loads without degradation, a key requirement for connectors in consumer electronics, industrial machinery, telecommunications equipment, and aerospace applications.
-
Product Qualification
Assists manufacturers in qualifying connector designs to meet specified endurance and operational performance criteria.
-
Quality Control
Provides a repeatable, standardized test method for quality control during production and before product release.
-
Safety and Compliance
Helps ensure that connectors meet international safety and performance standards, reducing the risk of electrical failures and associated hazards.
Related Standards
IEC 60512-9-3:2011 is part of the broader IEC 60512 series titled "Connectors for electronic equipment – Tests and measurements." It should be used alongside:
- IEC 60512-1:2001 – General tests and measurements for connectors, including structural test methods.
- IEC 60512-1-100:2006 – Overview of applicable publications and test methods within the IEC 60512 series.
- IEC 60068-1 – Environmental testing general guidance.

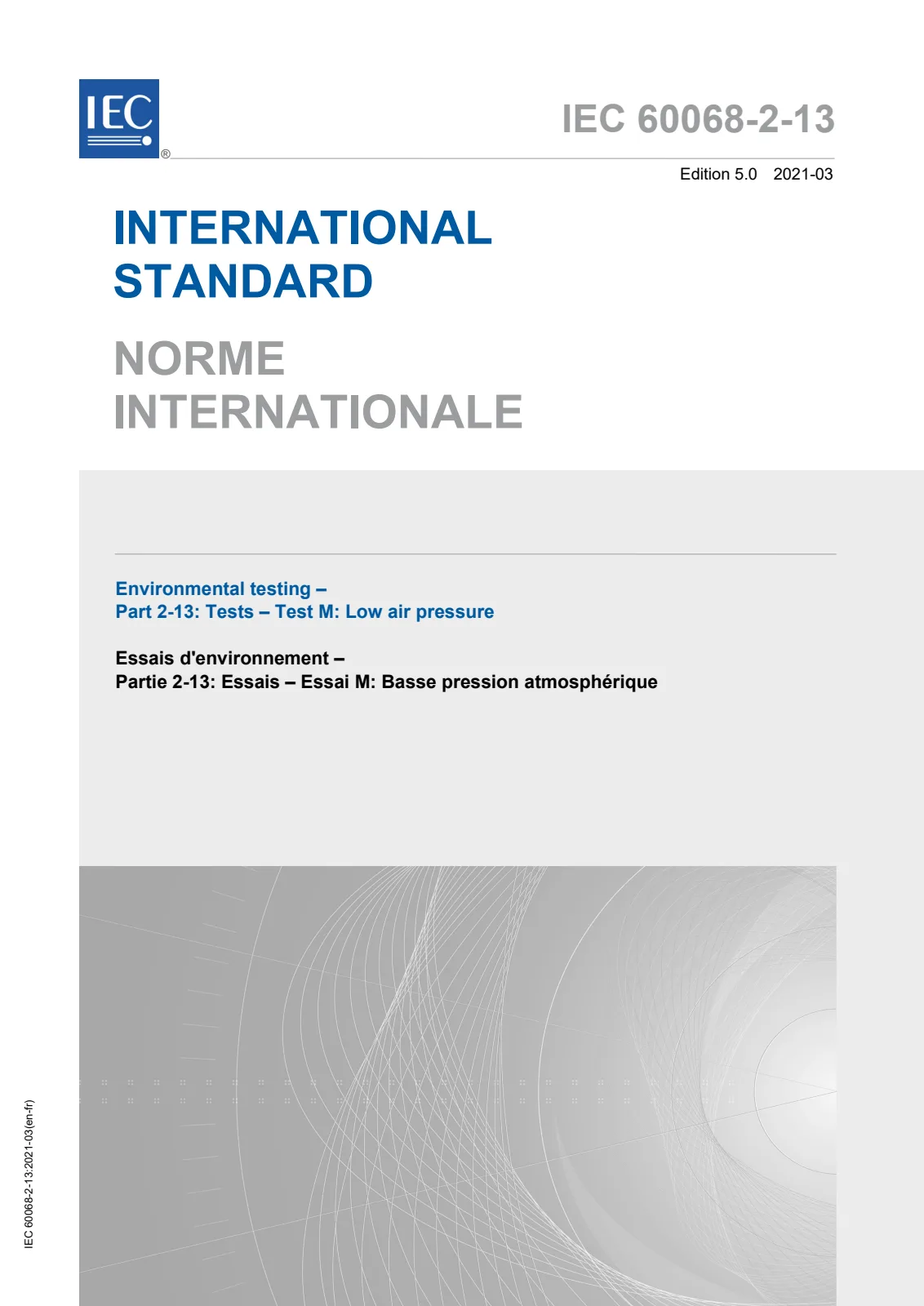

- IEC 60068-2-13 – Environmental test methods, specifically low air pressure testing.
- Auxiliary tests related to electrical performance such as:
Following these standards ensures a comprehensive testing regime covering mechanical, electrical, and environmental endurance of electronic connectors.
By implementing IEC 60512-9-3:2011 test methods, manufacturers and engineers can enhance connector reliability, improve product lifecycles, and achieve compliance with global quality and safety requirements. This standard is integral for advancing connector technology in increasingly demanding electronic environments.
