Overview
IEC 60549:2013 is an international standard developed by the International Electrotechnical Commission (IEC) addressing high-voltage fuses for the external protection of shunt capacitors in AC power systems. This standard applies to external fuses used with high-voltage capacitor units or banks rated above 1,000 V, particularly those used for power-factor correction and power filter circuits as defined in IEC 60871-1.
The standard's main objective is to ensure the reliable and safe clearing of faults, either within individual capacitor units (using unit fuses) or the entire capacitor bank (using line fuses), thereby protecting power systems from damage and maintaining operational continuity. IEC 60549:2013 is a technical revision of the original 1976 edition, aligned with updated IEC document structures and clarifying test requirements.
Key Topics
Scope and Application
- Applicable to high-voltage shunt capacitors above 1,000 V AC.
- Covers fuses used externally to protect both capacitor units and capacitor banks.
- Fuses are designed to interrupt capacitive breaking currents arising from faults in capacitor elements or banks.
Fuse Types
- Unit fuses: Protect individual capacitor units within banks, allowing other units to continue operation.
- Line fuses: Protect the entire capacitor bank by isolating it from the system during faults.
Performance and Testing
- Compliance with IEC 60282-1 (current-limiting fuses) or IEC 60282-2 (expulsion fuses) standards is required, except where excluded in IEC 60549.
- Key test requirements include:
- Rated maximum capacitive breaking current.
- Rated capacitor discharge energy the fuse can safely withstand.
- Power frequency inductive current tests.
- Capacitive breaking current tests using specified test circuits and procedures.
- Tests verify fuse capability to withstand fault conditions without compromising system stability.
Terms and Definitions
- Capacitor unit: Assembly of capacitor elements in a single container.
- Capacitor bank: Multiple capacitor units connected to act together.
- Capacitive current: Current that leads voltage caused by capacitive components.
- Inductive current: Current that lags voltage due to inductive components.
Applications
IEC 60549:2013 is essential for manufacturers, engineers, and operators dealing with:
- Power-factor correction in AC power systems, where shunt capacitors are widely used to improve system efficiency.
- Power filter circuits, benefiting from reliable capacitor protection to maintain power quality and reduce harmonic distortion.
- High-voltage capacitor banks in industrial, utility, and commercial electrical installations requiring dependable fault clearing and isolation.
- Integration of fuses in fused switches and fused disconnectors providing both mechanical switching and electrical protection.
Using fuses compliant with IEC 60549 helps to mitigate risks of capacitor damage, minimize downtime, and ensure safer maintenance by isolating only the faulted parts without unnecessarily tripping the entire system.
Related Standards
- IEC 60871-1: Defines general requirements for shunt capacitors above 1,000 V AC, setting the context for fuse application.
- IEC 60282-1: Specifies the requirements for current-limiting high-voltage fuses, which IEC 60549 references for fuse performance criteria.

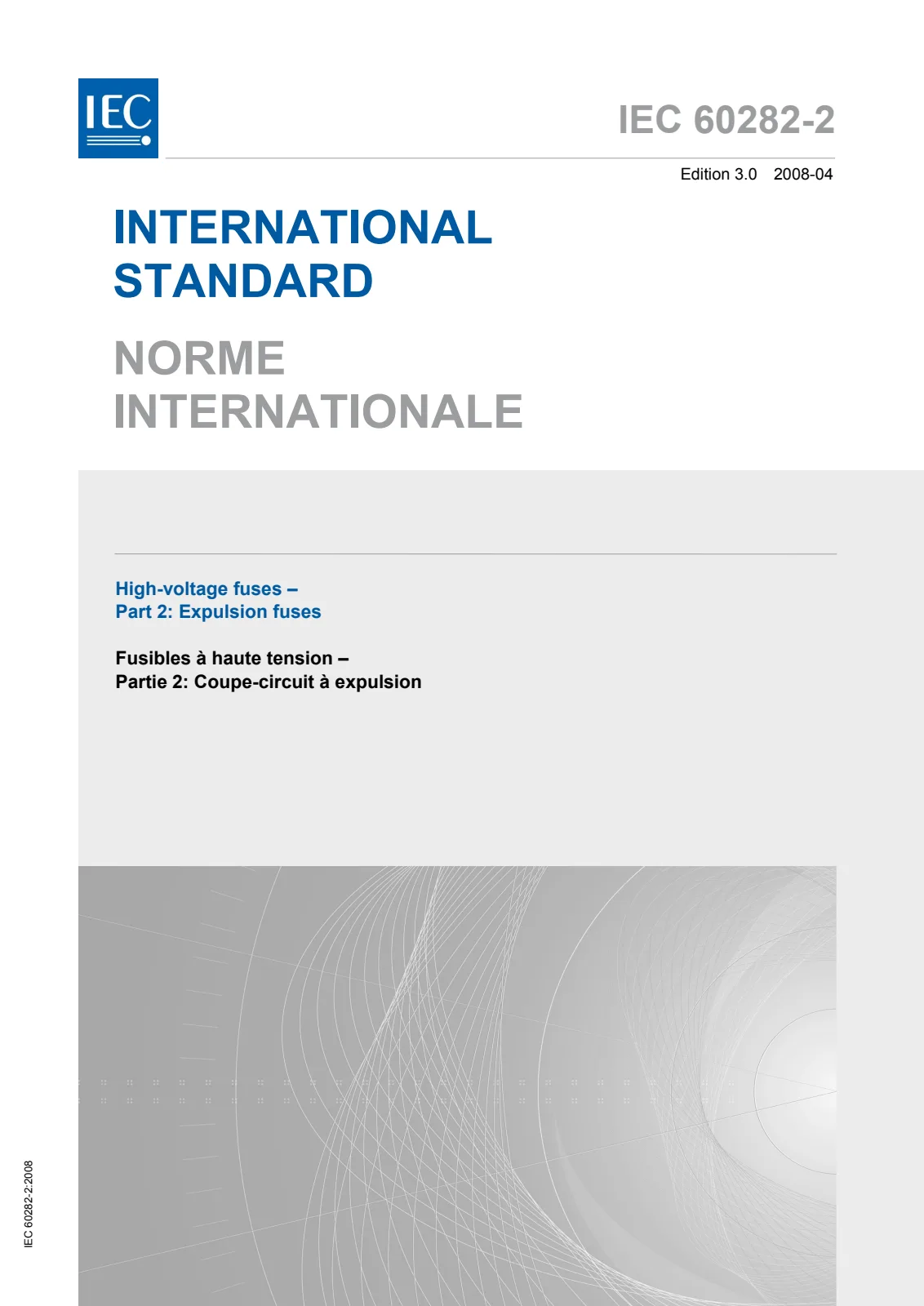

- IEC 60282-2: Covers expulsion fuses for high voltage applications, also referenced by IEC 60549.

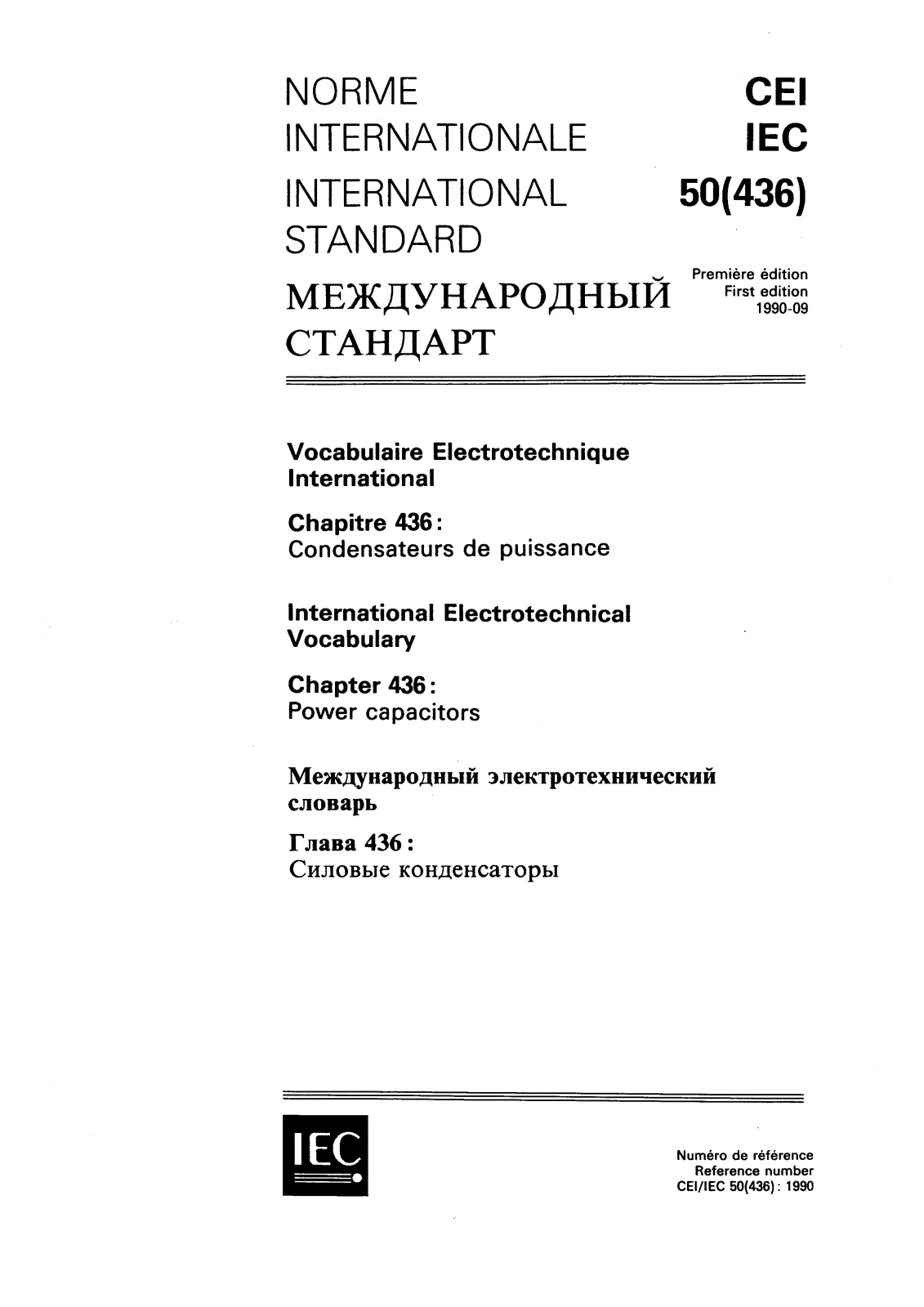

- IEC 60050-436: Electrotechnical vocabulary terms for capacitors, providing standard definitions used in IEC 60549.
Summary
IEC 60549:2013 is a critical standard for ensuring the safe and effective external protection of shunt capacitors operating at high voltages in AC power systems. By defining performance requirements, testing procedures, and application guidelines for external fuses, it promotes enhanced reliability and safety in power-factor correction and filtering equipment. Compliance with IEC 60549 contributes to longevity of capacitor banks, improved system stability, and effective fault management in modern electrical networks.
