Overview
IEC 60587:2022 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies test methods for evaluating electrical insulating materials under severe ambient conditions. This standard focuses on assessing the material's resistance to tracking and erosion at power frequencies ranging from 45 Hz to 65 Hz. Tracking refers to the progressive formation of conductive paths on or within insulating materials due to electrical stress and contamination, while erosion covers the electrical loss of material by leakage current or electrical discharge.
The standard outlines two primary test methods using inclined plane specimens contaminated with liquid to simulate harsh environmental conditions:
- Method 1: Testing at constant voltage, the more widely adopted method due to reduced need for continuous monitoring.
- Method 2: Testing with stepwise increased voltage.
IEC 60587:2022 provides an enhanced and detailed approach compared to previous editions, including improved specimen preparation, electrode material descriptions, and modifications in evaluation criteria.
Key Topics
-
Test Methods for Resistance Evaluation
The two methods in IEC 60587 utilize inclined plane specimens wetted with a liquid contaminant to accelerate tracking and erosion phenomena.
- Method 1 (Constant Voltage): Applies a continuous voltage to the specimen, monitoring the resistance to tracking over time.
- Method 2 (Stepwise Voltage Increase): Involves incrementally raising the voltage in steps, designed for detailed voltage endurance assessment but requires more intensive inspection.
-
Specimen Preparation and Dimensions
Specimens are flat, sized at least 50 mm by 120 mm, with a preferred thickness of 6 mm, and include boreholes for electrode mounting. Proper cleaning with solvents and rinsing with distilled water is mandatory to avoid residual contamination affecting results.
-
Electrode and Apparatus Requirements
Detailed specifications for electrode material, surface quality, and assembly ensure repeatable conditions. The test setup includes a filter-paper stack to simulate contamination and apparatus to maintain constant or stepwise applied voltages and environmental controls like ventilation.
-
Evaluation Criteria
Method 1 measures leakage current and visually inspects erosion, while Method 2’s evaluation no longer includes track length (criterion B), focusing instead on voltage endurance and current flow.
-
Accelerated Aging but Real-World Limitations
The test accelerates the effects of tracking and erosion for timely assessment but does not reproduce all service conditions a material might experience in actual installations.
Applications
IEC 60587:2022 is indispensable for manufacturers, researchers, and quality assurance professionals involved in the development and qualification of electrical insulating materials used in demanding environments. Typical applications include:
-
Power Industry
Insulating materials for equipment exposed to humid, contaminated, or polluted environments where high voltage tracking and erosion risks are significant.
-
Electrical Component Testing
Routine qualification and validation of insulators, bushings, cable jacketing, and other insulating products intended for outdoor or industrial use.
-
Material Research and Development
Establishing baseline resistance levels and enhancing the performance of novel insulating materials.
-
Safety and Compliance
Ensuring products meet internationally recognized performance criteria to prevent failures related to electrical tracking and material degradation.
Related Standards
Relevant to IEC 60587:2022 are other IEC and ISO standards focused on electrical insulation and testing, including:

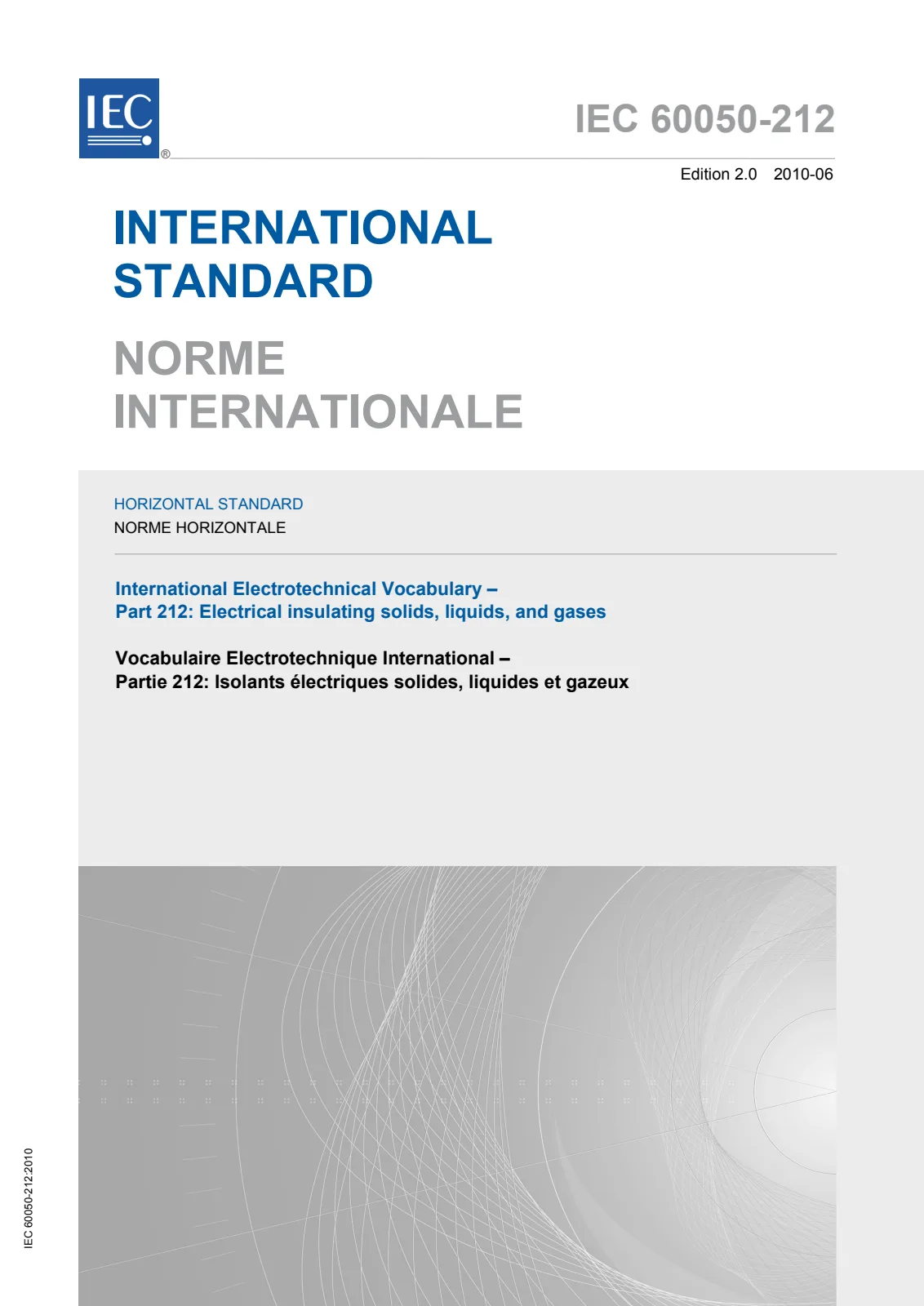

- IEC 60050-212:2010 – International Electrotechnical Vocabulary chapter related to tracking and erosion terms.
- IEC 60216 – Electrical insulating materials - Thermal endurance properties and classification.
- IEC 61109 – Insulated cables for electricity supply – Test methods for resistance to tracking and erosion of cable materials.
- ISO/IEC Directives – Framework guiding the development and publication of international standards.
By aligning with IEC 60587:2022, stakeholders can ensure global consistency in testing methods and material performance evaluation under severe ambient conditions, enhancing reliability and safety of electrical insulating products.
