Overview
IEC 60751:2022 is the international standard for industrial platinum resistance thermometers and platinum temperature sensors, developed by the International Electrotechnical Commission (IEC). This standard defines the requirements, characteristics, and test methods for both industrial platinum resistance thermometers (PRTs) and platinum resistance temperature sensors (often called platinum resistors), focusing on their electrical resistance as a function of temperature. The standard uses the International Temperature Scale of 1990 (ITS-90) as a reference, facilitating high-precision temperature measurements in industrial process control and automation.
Key Topics
- Scope and Definitions: IEC 60751:2022 applies to platinum resistors with specific temperature coefficients, ensuring compatibility with a defined resistance-temperature relationship across the temperature range of −200 °C to +850 °C.
- Nominal Resistance versus Temperature: The standard specifies formulas for calculating resistance at any temperature, supporting industry-standard Pt100, Pt500, and Pt1000 sensor elements.
- Tolerance Classes: Multiple tolerance classes (AA, A, B, C) are defined, enabling manufacturers and users to select sensors based on required accuracy and application needs.
- Compliance and Testing: Strict procedures for compliance, including routine production tests and type tests, ensure each thermometer or sensor meets the required specification prior to use.
- Marking and Documentation: The marking system ensures clear identification of key sensor information, including construction type, tolerance class, wire configuration, and operational temperature range.
- Testing Procedures: Comprehensive test categories are provided, covering tolerance acceptance, insulation resistance, physical integrity, response time, hysteresis, vibration, and more.
Applications
Platinum resistance thermometers and temperature sensors standardized by IEC 60751:2022 play a crucial role in a wide range of industrial sectors, including:
- Process Automation: Accurate temperature measurement for process control in industries such as chemical, pharmaceutical, and food processing.
- Energy and Power Generation: Ensuring safe and efficient plant operation by precisely monitoring temperatures in boilers, turbines, and reactors.
- Manufacturing: Quality assurance and process optimization through tight temperature control during fabrication and assembly.
- HVAC and Environmental Monitoring: Reliable temperature sensing in heating, ventilation, and air-conditioning systems.
- Scientific Research: High-stability, low-uncertainty measurements essential for laboratories requiring traceable temperature data.
By adhering to IEC 60751:2022, end users and manufacturers both benefit from global compatibility, proven performance, and simplified integration of temperature sensors in control systems.
Related Standards
For complete compliance and optimal sensor selection, users should be aware of related international standards:
- IEC 60068-2-6: Environmental testing - Vibration (sinusoidal)
- IEC 61152: Dimensions of metal-sheathed thermometer elements

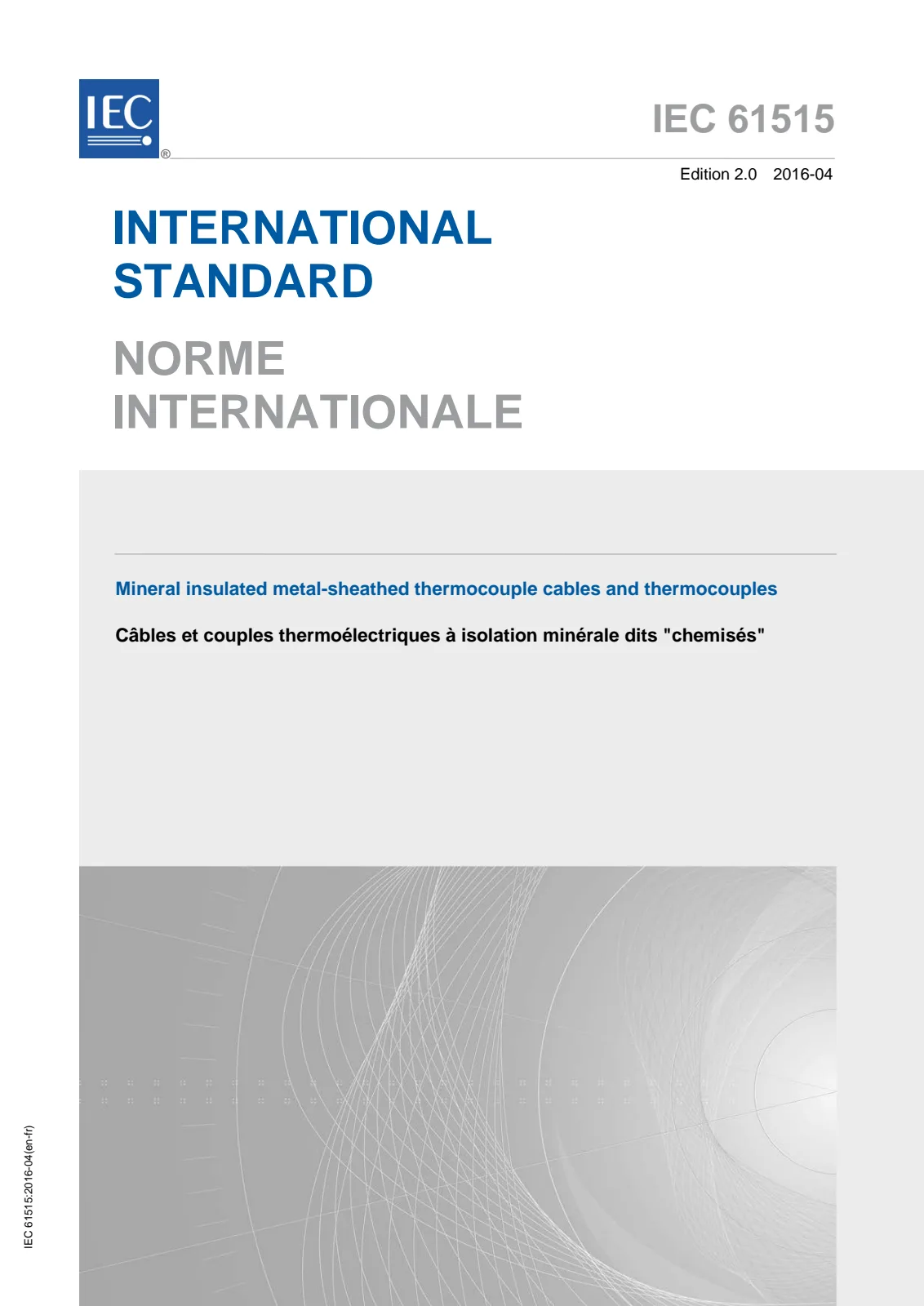

- IEC 61515: Mineral insulated metal-sheathed thermocouple cables and thermocouples
Additionally, users are encouraged to consult IEC Electropedia (the International Electrotechnical Vocabulary) for up-to-date technical terms relevant to temperature sensors and industrial instrumentation.
By following IEC 60751:2022, organizations ensure that platinum resistance thermometers and temperature sensors deliver reliable, precise, and globally recognized performance throughout their lifecycle in demanding industrial applications.
