Overview
IEC 60884-2-6:1997 is an international standard published by the International Electrotechnical Commission (IEC) that specifies particular requirements for switched socket-outlets with interlock intended for fixed electrical installations in household and similar environments. This standard applies to switched socket-outlets designed exclusively for alternating current (a.c.) with rated voltages exceeding 50 V but not more than 440 V, and rated currents up to 32 A. It covers devices both with and without earthing contacts, suitable for indoor and outdoor fixed installations.
The standard is part 2-6 of the IEC 60884 series, which deals with plugs and socket-outlets for household and similar purposes. It defines the essential criteria related to construction, safety, testing, and performance for interlocked switched socket-outlets, ensuring reliable operation and protection against electrical hazards.
Key Topics
-
Scope and Application
Focuses on switched socket-outlets with an interlocking system which ensures that the plug cannot be removed when the socket is switched on. Suitable for fixed installations in residential and similar settings.
-
Safety and Shock Protection
Provides stringent measures to protect users from electrical shock by specifying requirements for isolation, grounding, and interlocking functions to prevent accidental contact with live parts.
-
Construction Requirements
Details the materials, mechanical strength, dimensions, and durability criteria to withstand regular use, exposure to moisture, and environmental conditions indoors or outdoors.
-
Interlock Mechanism
Defines the operational requirements of the interlock system that prevents removal of the plug when the socket is energized, enhancing user safety during maintenance or plug insertion and withdrawal.
-
Testing and Performance
Comprehensive test methods for verifying insulation resistance, dielectric strength, mechanical endurance, temperature rise, breaking capacity, and resistance to aging, moisture, and corrosion.
-
Marking and Identification
Specifies clear marking rules for product identification, electrical ratings, and safety information to ensure correct and safe use of socket-outlets.
Applications
IEC 60884-2-6:1997 standard is widely applicable in the design, manufacture, and installation of switched socket-outlets with interlock systems in:
- Residential homes and apartment buildings
- Commercial buildings with household-type electrical fittings
- Outdoor fixed electrical installations requiring enhanced safety features
- Electrical accessories manufacturers aiming to comply with international safety standards
- Electrical installation professionals who require guidance on proper socket-outlet specifications
Adherence to this standard helps prevent electrical accidents, improves installation safety, and ensures compatibility with household electrical systems up to 440 V and 32 A.
Related Standards
To fully comply with the requirements for plugs and socket-outlets, IEC 60884-2-6:1997 should be used in conjunction with:
-
IEC 60884-1: General rules for plugs and socket-outlets for household and similar purposes. This part sets out the overarching requirements applicable to all plugs and socket-outlets.
-
IEC 60050 (IEV): International Electrotechnical Vocabulary, providing definitions and terminology relevant to electrical installations and accessories.
-
IEC 60027, IEC 60417, IEC 60617: Standards covering electrical symbols and graphical representations used on equipment and in technical documentation.
These standards collectively ensure comprehensive international guidelines regarding safety, consistency, and interoperability for electrical accessories.
By complying with IEC 60884-2-6:1997, manufacturers and installers ensure switched socket-outlets with interlock meet internationally recognized safety and performance benchmarks, thereby enhancing user protection against electrical hazards in fixed household and similar installations.

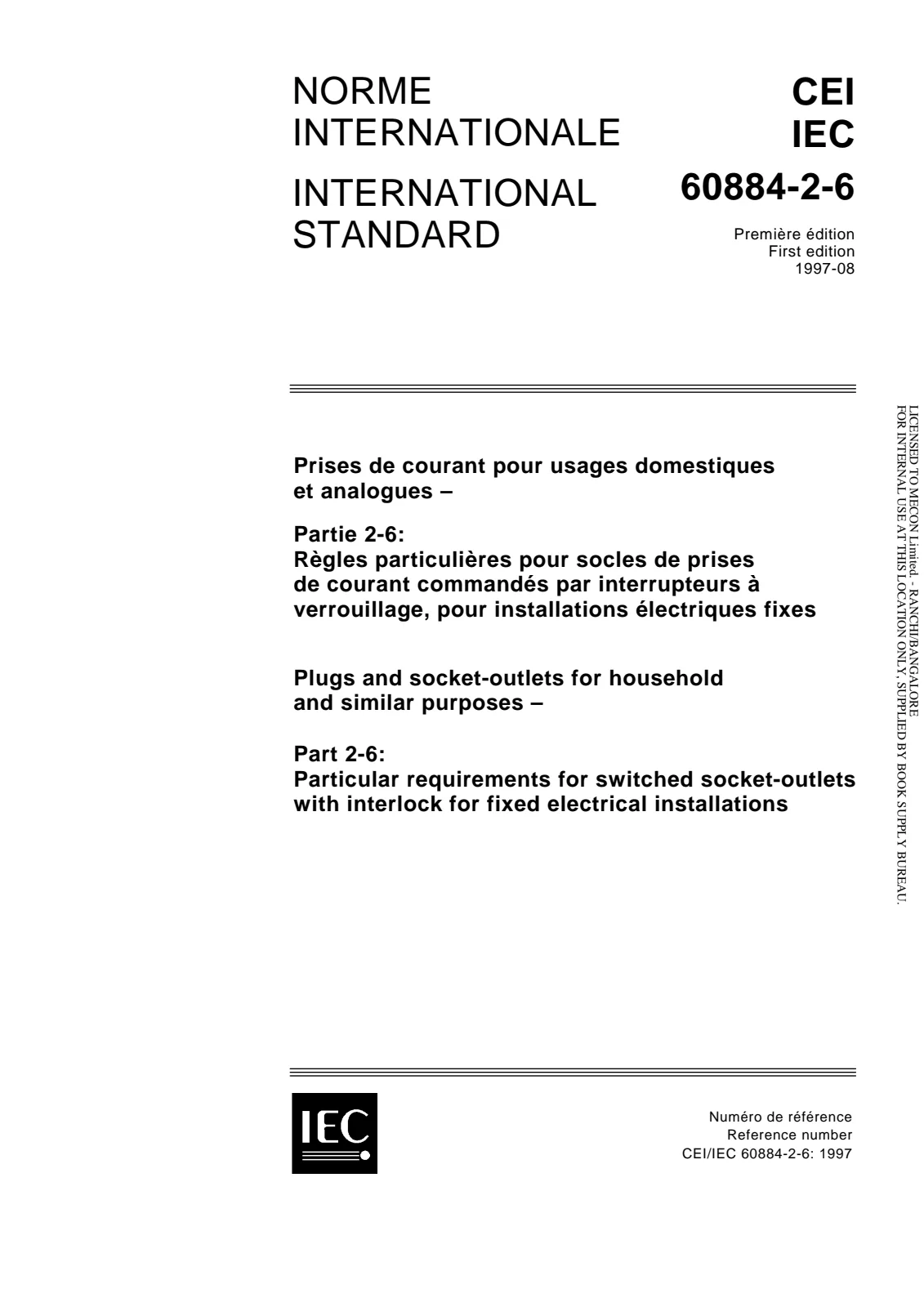

Open preview (PDF)Plugs and socket-outlets for household and similar purposes - Part 2-6: Particular requirements for switched socket-outlets with interlock for fixed electrical installations
