Overview
IEC 61000-3-8:1997 is an international standard by the International Electrotechnical Commission (IEC) addressing electromagnetic compatibility (EMC) specifically for signalling on low-voltage electrical installations. It applies to equipment using signals in the frequency range from 3 kHz up to 525 kHz for information transmission over public supply systems or within customer premises. This standard establishes limits for emission levels, frequency band allocations, and electromagnetic disturbance levels to ensure reliable and interference-free operation of electrical signalling over low-voltage networks.
Key Topics
- Scope and Frequency Range: Covers signalling on low-voltage electrical installations transmitting signals from 3 kHz to 525 kHz, with disturbance limits given up to 400 GHz for comprehensive EMC considerations.
- Frequency Allocation: Specifies frequency bands allocated to different signalling applications within ITU region 1, ensuring organized and interference-minimized use of frequencies.
- Emission Limits: Defines limits on the terminal output voltage levels in the operating frequency bands to control conducted emissions from signal transmitters.
- Disturbance Limits: Establishes maximum allowable conducted and radiated electromagnetic disturbances to mitigate electromagnetic interference (EMI) risks.
- Measurement Methods: Provides test conditions, measurement techniques, and examples including artificial mains networks, spectral bandwidth measurements, and test arrangements for equipment dependent on transmitter presence.
- Inadvertent Operation: Addresses potential malfunction scenarios due to electromagnetic disturbances, emphasizing robustness in practical installations.
Applications
IEC 61000-3-8 is critical for manufacturers, system designers, and facility operators involved in:
- Low-Voltage Power Line Communication (PLC): Guiding signal transmissions that use power cabling infrastructure for communication and control signals.
- Smart Grid and Home Automation: Facilitating reliable signalling over existing electrical wiring for smart meters, remote control devices, and energy management systems.
- Industrial Control Systems: Ensuring EMC compliance for signalling devices operating within industrial low-voltage distribution networks.
- EMC Testing Laboratories: Providing standardized procedures and limits for certification and compliance testing of signalling equipment.
By adhering to this standard, stakeholders can reduce interference risks, improve device interoperability, and maintain the integrity of communication signals on power systems.
Related Standards
IEC 61000-3-8 is part of the broader IEC 61000 series on EMC, complementing:
- IEC 61000-3-2 and 3-3: Limits for harmonic current emissions and flicker in low-voltage supply systems, related to power quality aspects.
- IEC 61000-4 series: EMC testing and measurement techniques essential for verifying compliance with emission and immunity limits.
- IEC 60050: The International Electrotechnical Vocabulary provides terminology referencing EMC concepts used in IEC 61000-3-8.
- ITU Recommendations: Frequency band allocations and signalling guidelines, especially in ITU region 1, which this standard references for spectrum management.
Implementing IEC 61000-3-8:1997 ensures well-defined emission and disturbance levels for signalling on low-voltage electrical installations, fostering improved electromagnetic compatibility and minimizing communication disruptions across diverse electrical environments. It is an essential reference for professionals focusing on power line signalling technology and EMC compliance.

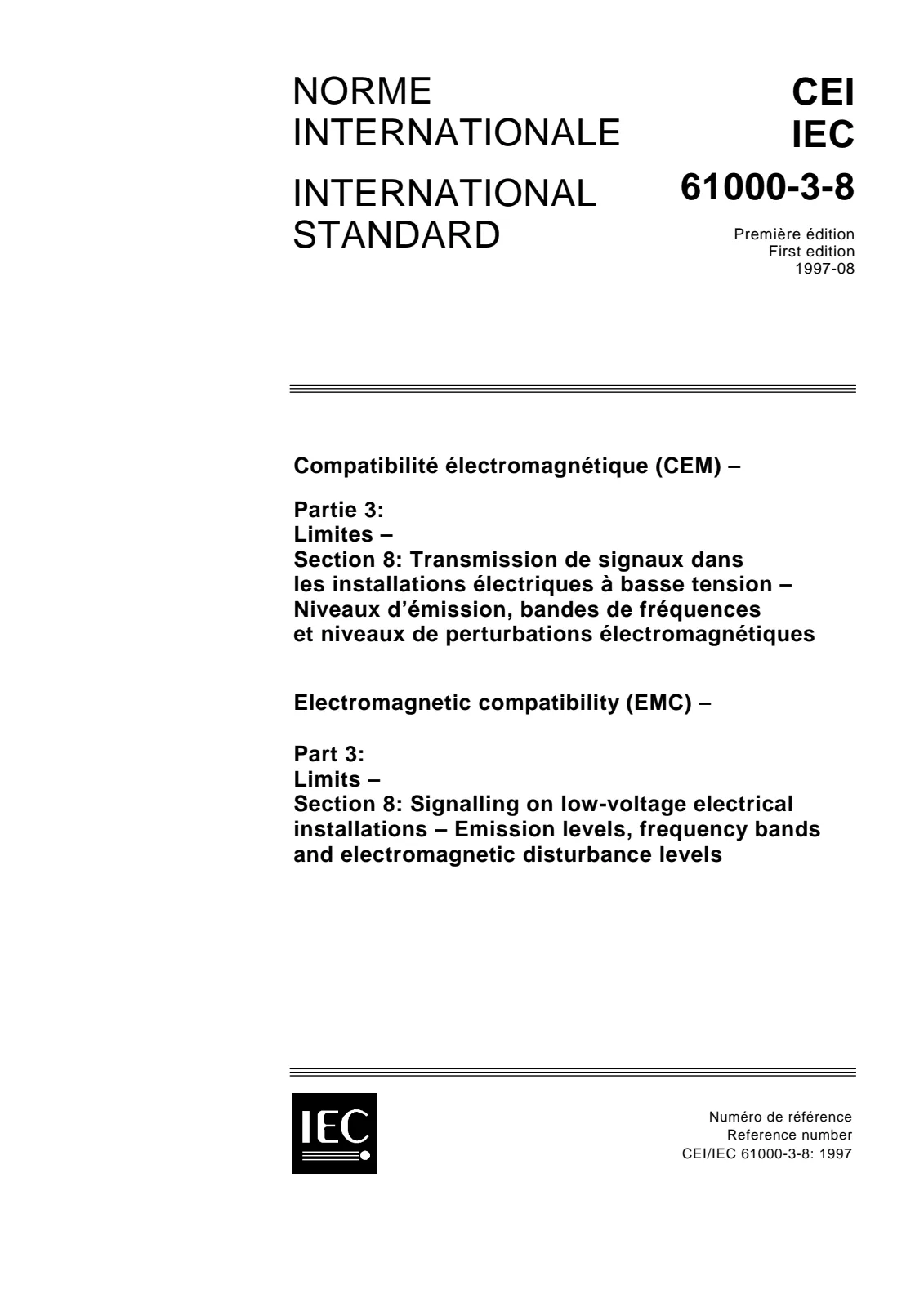

Open preview (PDF)Electromagnetic compatibility (EMC) - Part 3: Limits - Section 8: Signalling on low-voltage electrical installations - Emission levels, frequency bands and electromagnetic disturbance levels
