Overview
IEC 61078:2006 is an international standard published by the International Electrotechnical Commission (IEC) providing comprehensive analysis techniques for dependability of systems, focusing on Reliability Block Diagram (RBD) and Boolean methods. This standard defines systematic procedures for modeling system dependability and calculating key dependability metrics such as reliability and availability. It is primarily intended for use in systems without repair actions and where failure sequence does not influence outcomes.
Understanding and applying IEC 61078:2006 helps engineers and reliability professionals accurately evaluate and predict system performance under failure conditions using standardized and proven analytical tools.
Key Topics
- Dependability Modeling: The standard describes the process to build dependability models using the Reliability Block Diagram approach, enabling a structured visualization and analysis of system components and their impact on overall reliability.
- Reliability Block Diagrams (RBDs): IEC 61078 details how to construct and interpret RBDs for various system configurations, including series, parallel, mixed redundancy, and complex arrangements that cannot be simply reduced to series/parallel blocks.
- Boolean Methods: The document covers Boolean algebra techniques applied to RBDs for precise evaluation of system failure and success states, including methods for managing disjoint events and truth table applications.
- Assumptions & Limitations: Key assumptions such as independence of events, distribution of failure times, and limitations regarding systems with repair or sequential failures are clearly defined.
- Model Evaluation: Procedures are outlined for both elementary models and more complex systems, including approaches to reduce complex diagrams and handle common blocks.
- Availability Calculations: Extensions of RBD and Boolean methods are provided for availability analysis, allowing practitioners to assess system uptime considering failure and repair scenarios indirectly.
- Mathematical Formulas and Examples: IEC 61078 includes detailed formula summaries and illustrative figures demonstrating common modeling scenarios and their analytical solutions.
Applications
IEC 61078:2006 is widely applicable in sectors where dependability and reliability assessments of non-repairable or non-sequential failure systems are critical. Typical applications include:
- Electrical and Electronics Systems: Ensuring dependable operation of components and subsystems in power generation, distribution, and electronic devices.
- Industrial Automation: Modeling reliability of control systems and machinery to reduce downtime risks.
- Transportation Systems: Analysis of reliability for vehicle electronic systems or infrastructure components which operate without immediate repair.
- Defense and Aerospace: Design and evaluation of mission-critical systems requiring rigorous dependability models.
- Manufacturing: Assessing reliability of manufacturing equipment and processes to optimize maintenance and reduce failures.
- Safety-Critical Systems: Supporting safety verification through clear dependability models to comply with regulations.
Professionals use this standard to improve system design, perform risk assessments, optimize system availability, and support maintenance planning.
Related Standards
To complement IEC 61078:2006 for broader dependability analysis needs, the following standards may be referenced:
- IEC 61508 (Functional Safety of Electrical/Electronical/Programmable Electronic Safety-Related Systems): Covers safety lifecycle and risk assessments.
- IEC 61025 (Fault Tree Analysis): Focused on fault tree methods, better for systems with repair and sequential failure dependencies.

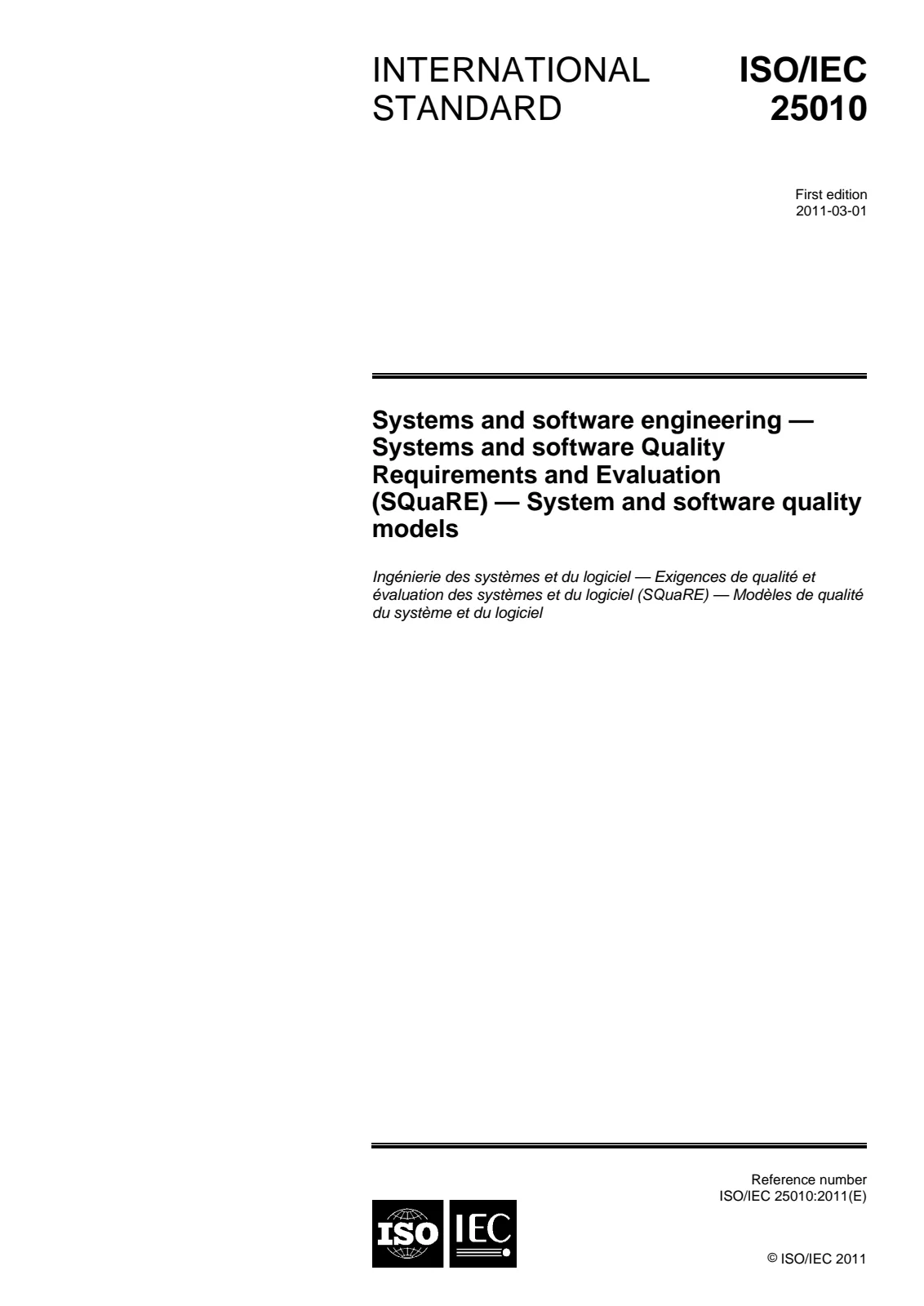

- ISO/IEC 9126 and ISO/IEC 25010: For software reliability and quality standards.
- IEEE Standards on Reliability: Such as IEEE 1413 for reliability modeling and evaluation.
- Markov Analysis Techniques: Recommended in IEC 61078 for systems where order of faults or repair processes affect dependability outcomes.
Integrating IEC 61078 with these standards provides robust, multi-faceted approaches for dependability and safety engineering.
Adopting IEC 61078:2006 ensures consistent, reliable dependability evaluations using standardized Reliability Block Diagrams and Boolean methods, essential for engineering high-quality, failure-resilient systems across many industries.
