Overview
IEC 61169-29:2005 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies sectional requirements for miniature radio-frequency (RF) coaxial connectors. This standard covers connectors with coupling mechanisms such as screw, snap-on, push-pull, quick-lock, and slide-in types designed primarily for rack and panel applications. The connectors discussed in IEC 61169-29 have a characteristic impedance of 50 Ω (type 1.0/2.3), and are applicable to both 50 Ω and 75 Ω systems.
This standard aims to provide comprehensive guidance for the preparation of detailed specifications for RF coaxial connectors used in high-frequency electrical and electronic applications. It ensures compatibility, performance consistency, and reliability in communication and measurement systems where miniature coaxial connectors are essential components.
Key Topics
- Connector Types and Coupling Mechanisms: Defines various coupling styles including screw, snap-on, push-pull, quick-lock, and slide-in to accommodate different mechanical and operational needs in rack and panel environments.
- Characteristic Impedance: Specifies a nominal impedance of 50 Ω, with support for both 50 Ω and 75 Ω applications, ensuring consistent signal integrity across RF systems.
- Interface Dimensions and Gauging: Detailed dimensions and interface configurations are provided to standardize physical compatibility and interchangeability between mating connectors.
- Quality Assurance Procedures: Covers requirements such as ratings, electrical and mechanical characteristics, test procedures, inspection criteria, and documentation practices to guarantee reliable connector performance.
- Preparation of Detailed Specifications: Offers instructions and templates for manufacturers and users to develop specific detail specifications reflecting application-specific requirements and quality control measures.
- Locking and Retention Devices: Includes specifications for mechanical locking systems to assure secure, vibration-resistant connections critical in demanding environments.
- Testing and Compliance: Describes test sequences, environmental conditioning, and pass/fail criteria to ascertain compliance and endurance of connectors.
Applications
IEC 61169-29 connectors are widely used in industries and systems where miniature RF coaxial connectors are essential, including:
- Telecommunications: For ensuring reliable signal transmission in base stations, antenna systems, and communication racks.
- Broadcasting Equipment: Used in both professional studio environments and transmission infrastructure where low-loss, high-frequency connections are critical.
- Test and Measurement Devices: In laboratory and field test equipment requiring precise impedance matching and reproducibility.
- Military and Aerospace: Where robust, quick-lock and push-pull connectors provide secure connections under harsh conditions.
- Data Centers and Networking: Rack and panel mount connectors facilitate modular and maintainable infrastructure for high-speed data transmission.
- Consumer Electronics: Miniature RF connectors conforming to this standard promote interoperability in various RF-enabled devices.
Related Standards
- IEC 61169 Series: Other parts of this series detail specifications for different types and sizes of RF connectors, ensuring a broad coverage of application-specific connector solutions.
- IEC 60068: Environmental testing standards that complement IEC 61169-29 by providing protocols to test resiliency of connectors under varying temperature, humidity, vibration, and shock conditions.
- ISO/IEC 14763-2: Guidelines for cabling infrastructure including connectors used in information technology systems.
- IEEE Standards: For RF connectors related to IEEE-defined frequency bands and measurement techniques relevant to connector performance assessment.
By adhering to IEC 61169-29, manufacturers and system integrators can ensure that miniature RF coaxial connectors meet international performance, interchangeability, and safety standards, facilitating global compatibility and enhancing system reliability in RF applications.

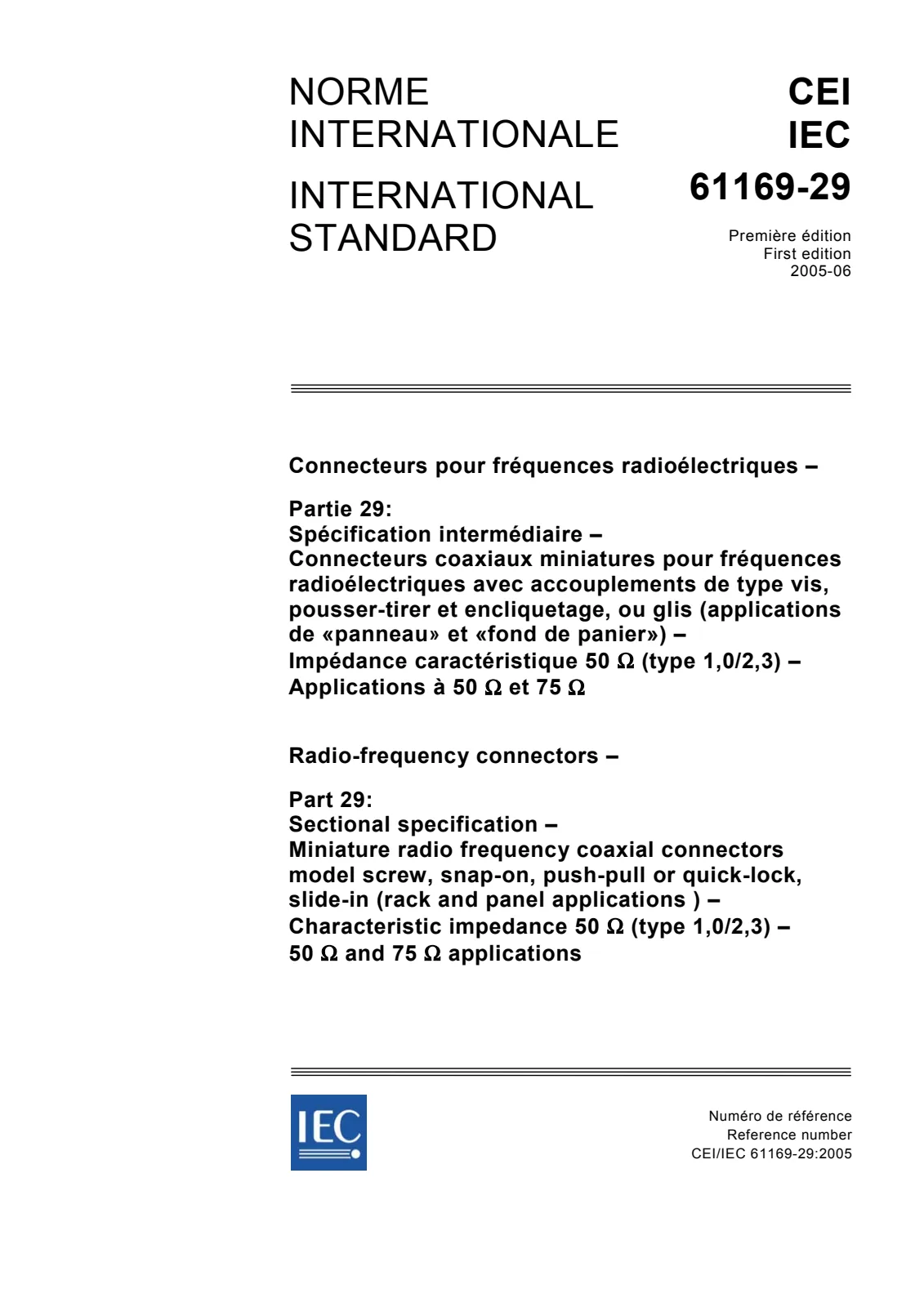

Open preview (PDF)Radio-frequency connectors - Part 29: Sectional specification - Miniature radio frequency coaxial connectors model screw, snap-on, push-pull or quick-lock, slide-in (rack and panel applications) - Characteristic impedance 50 Ω (type 1,0/2,3) - 50 Ω and 75 Ω applications
