Overview
IEC 61189-2-720:2024 is an international standard published by the International Electrotechnical Commission (IEC). It specifies a test method for detecting defects in electrical interconnection structures, including circuit boards and assemblies, by measuring capacitance. This standard focuses on evaluating the capacitance between conductor traces and a ground plane to qualitatively compare test specimens against reference boards. Unlike traditional electrical tests that primarily identify open or short circuits, this capacitance measurement method helps detect subtle defects such as mouse bites, delamination, voids, and cracks that affect circuit board reliability.
Key Topics
-
Capacitance Measurement for Defect Detection
The standard introduces a technique to measure capacitance using instruments like LCR meters or impedance testers. By probing pads on the test specimen against a grounded metal plate, capacitance differences caused by defects can be identified. This method complements electrical open/short tests by revealing reliability issues not detectable by standard resistance measurements.
-
Test Specimen and Setup
The test specimen typically includes circuit boards or dedicated test coupons with top and bottom test pads. These specimens must be prepared with minimal warpage (less than 2 mm) to ensure good contact with the ground metal plate. The test setup requires a 2-port capacitance tester connected between each pad and the grounding plate, allowing for capacitance measurement from both top and bottom sides.
-
Qualitative Comparison of Results
Measurements are compared qualitatively rather than quantitatively, assessing differences in capacitance values relative to a reference board. This approach is particularly useful during development stages and reliability testing to detect defects impacting circuit integrity before formal conformity assessments.
-
Defect Identification
Variations in capacitance are indicative of common defects:
- Mouse bite - losses or damages in the conductor pad shape reflected by reduced capacitance.
- Delamination and voids - changes in dielectric properties alter capacitance measurements.
- Cracks and opens - disrupt conductor continuity influencing capacitance values.
-
Limitations
This method is not designed for production line quantitative testing due to longer measurement times. It serves as an additional tool to standard electrical testing methods to ensure higher quality and reliability.
Applications
IEC 61189-2-720:2024 caters to the electronics manufacturing and quality assurance sectors where ensuring the integrity of interconnection structures is critical. Practical applications include:
-
Circuit Board Development and Prototyping
Early-stage evaluation of new designs or materials to identify latent defects impacting long-term reliability.
-
Reliability Testing for Electronics Assemblies
Post-manufacturing assessments complementing electrical resistance tests to detect subtle interconnection faults.
-
Quality Control in Printed Circuit Board (PCB) Fabrication
Providing an advanced diagnostic method to identify manufacturing defects such as pad damage or internal delamination.
-
Research in Electrical Materials and Interconnection Technologies
Instrumental in analyzing the effects of various conditions on circuit board capacitance and integrity.
Related Standards
For comprehensive understanding and application, IEC 61189-2-720:2024 is used alongside the following standards:
-
IEC 61189 Series
A collection of test methods for electrical materials, circuit boards, and interconnection assemblies addressing various electrical and mechanical performance aspects.
-
IEC 60194-2
Providing vocabulary and common terminologies applicable for printed boards design, manufacture, and assembly, ensuring consistent communication across testing procedures.
-
General Electrical Test Standards
Including standards for electrical open and short testing that measure continuity and resistance of circuits but lack detailed capacitance defect detection.
Summary
IEC 61189-2-720:2024 plays a vital role in the identification of defects within electrical interconnection structures through precise capacitance measurement. Its qualitative approach enhances the detection of subtle circuit board faults such as mouse bites, delamination, and cracks, which traditional electrical tests may miss. This standard is indispensable for engineers and quality control professionals during circuit board development and reliability testing, ensuring higher standards of electronic assembly quality and performance. Utilizing this methodology in conjunction with other established IEC standards facilitates a comprehensive quality assurance framework for modern electronic systems.

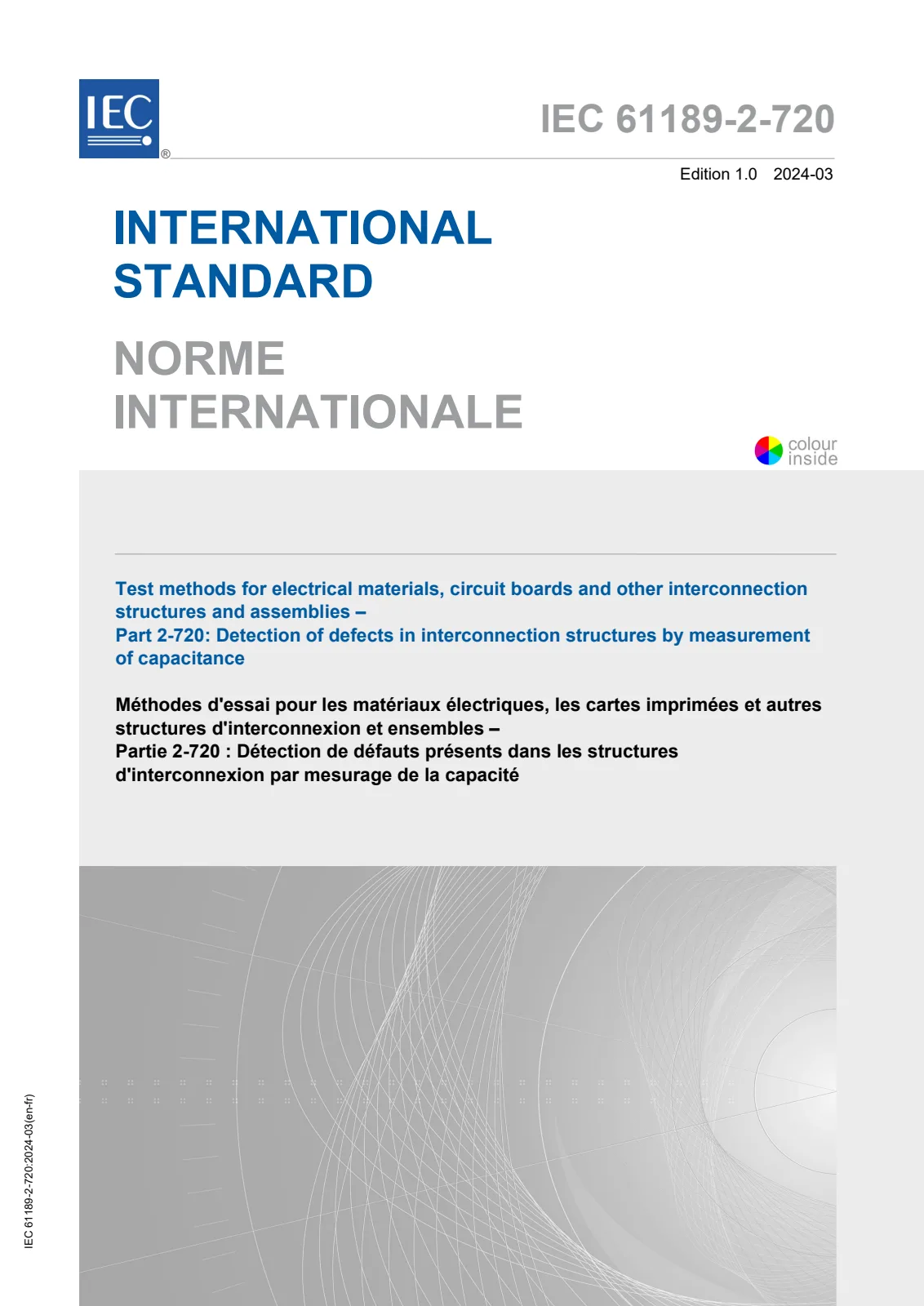

Open preview (PDF)Test methods for electrical materials, circuit boards and other interconnection structures and assemblies - Part 2-720: Detection of defects in interconnection structures by measurement of capacitance
