Overview

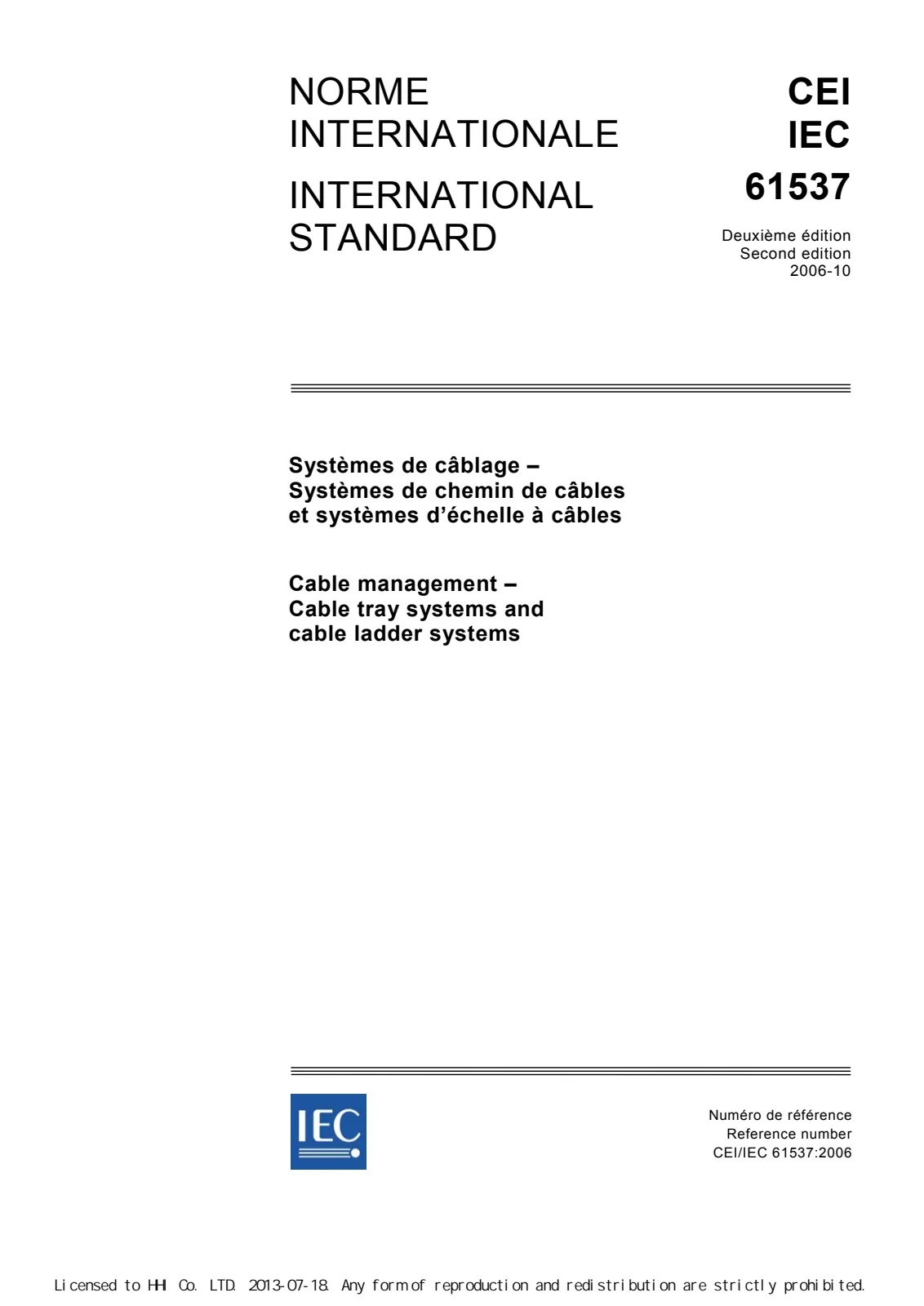

IEC 61537:2006 is an international standard developed by the International Electrotechnical Commission (IEC) that outlines requirements and testing methods for cable tray systems and cable ladder systems. These systems are essential components in cable management, designed to support, protect, organize, and segregate electrical and communication cables in various installations.
This standard addresses both the structural and functional integrity of cable trays and ladders, ensuring safety, durability, and compatibility under different environmental and operational conditions. It is widely recognized for helping manufacturers, installers, and engineers maintain quality and conformity in cable management solutions.
Key Topics
-
Scope and Application
Specifies the criteria for cable tray and ladder systems used in electrical and communication systems, including support capabilities and cable separation.
-
Classification and Marking
Defines classes based on mechanical strength, corrosion resistance, temperature tolerance, and surface type, along with proper product marking and documentation for traceability.
-
Materials and Construction
Guidelines on construction details, such as dimensions, materials, coatings (including galvanization), and design to ensure compliance with load-bearing and environmental conditions.
-
Mechanical and Electrical Properties
Requirements for mechanical strength, impact resistance, electrical conductivity, and bonding to maintain system integrity and safety.
-
Thermal and Fire Safety
Criteria for thermal performance, heat resistance, and fire hazard mitigation to reduce risks in installations.
-
Testing Procedures
Detailed test methods for load-bearing capacity (Safe Working Load), impact resistance, electrical continuity, thermal endurance, electromagnetic compatibility, and other relevant properties.
-
Environmental Influence and Corrosion Protection
Classifies environmental categories and corrosion rates, especially related to zinc galvanizing, to ensure long-lasting performance in diverse conditions.
-
Installation Guidance
Recommendations and informative annexes provide instructions on safe installation practices, including fixing methods and load distribution.
Applications
IEC 61537:2006 plays a critical role in multiple sectors where reliable cable management is paramount:
-
Industrial Facilities
Supports complex electrical and communication wiring in factories and plants ensuring safety and organization.
-
Commercial and Residential Buildings
Provides standardized cable support systems that facilitate neat installations and future scalability.
-
Data Centers and Telecommunication Networks
Organizes high-density cabling with consideration for electromagnetic compatibility and thermal management.
-
Infrastructure Projects
Used in transportation, energy distribution, and public utilities to protect and support extensive cable networks.
Implementing IEC 61537 compliant cable trays and ladders helps improve installation safety, reduces downtime due to mechanical or environmental failures, and enhances overall system reliability.
Related Standards
Integration with other international standards enhances the application of IEC 61537:
-
IEC 60364 Series – Electrical installations of buildings, providing general safety requirements relevant to cable management.
-
IEC 60068 Series – Environmental testing methodologies that complement durability and corrosion assessments.
-
ISO 9001 – Quality management systems employed by manufacturers to ensure compliance with IEC 61537 and other standards.
-
EN 50085 Series – European standards related to cable trunking systems and cable ducts, often harmonized with IEC requirements.
Familiarity with these standards alongside IEC 61537 ensures comprehensive safety, quality, and interoperability in cable management solutions.
