Overview

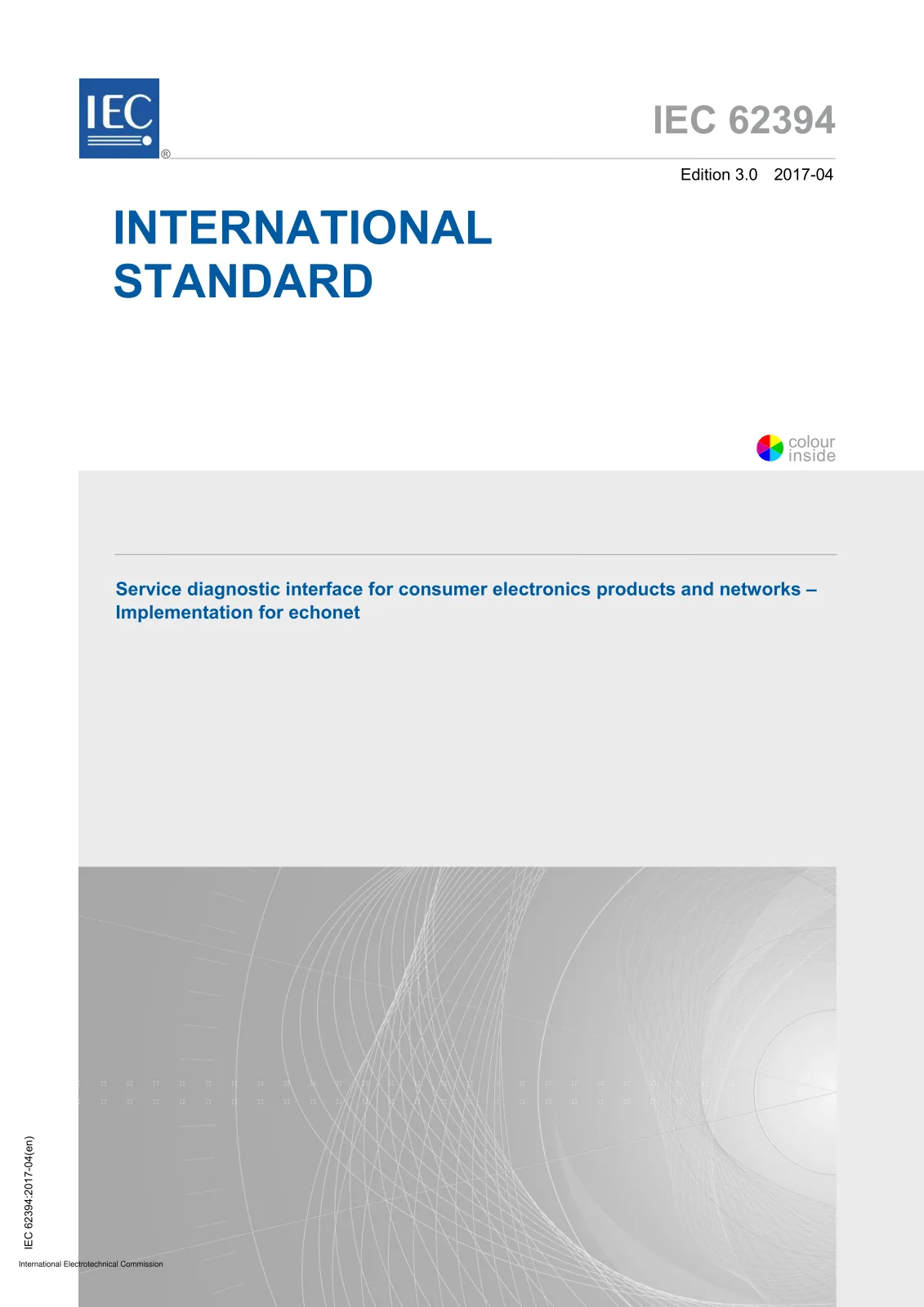

IEC 62394:2017 - Service diagnostic interface for consumer electronics products and networks - Implementation for ECHONET - defines requirements for implementing a Service Diagnostic Interface (SDI) in consumer electronics and networked devices. The standard mandates an external controller (dedicated or general-purpose/PC) to run service diagnostic software, specifies which controller software elements should be standardized versus manufacturer‑specific, and bases the interface on ECHONET specifications (ECHONET v2.11, ECHONET Lite v1.11 and the Release G appendix). The SDI enables low‑cost, flexible, efficient diagnostic implementations using existing communication protocols.
Key Topics and Technical Requirements
- SDI architecture: External controller (tester) and device under test (DUT) roles; support for standalone products, household/facilities networks and remote diagnosis.
- Hardware requirements: Minimum expectations for tester hardware, DUT interfaces and network topology support (local and networked environments).
- Software requirements: Standardized tester software components, manufacturer‑specific modules, and DUT software behaviors to expose diagnostic properties.
- Control protocols: Definitions for two control protocol families - full ECHONET frames and ECHONET Lite frames - including headers, addresses, data counters and service codes.
- ECHONET object model: Detailed object and property specifications (EOJ, EPC, EDT), property data types, required class properties and property maps.
- Device class specifications: Detailed diagnostics for common device classes and sensors (temperature, humidity, illuminance, human detection, energy sensors, open/close sensors, air conditioners, etc.), including operation status, measured values and fault reporting.
- Diagnosis data and services: Product identification, diagnostic unit reading, fault codes, cumulative and instantaneous measurements, and processing counters for compound services.
Practical Applications and Who Uses This Standard
- Consumer electronics manufacturers: Implement standardized diagnostic interfaces in products to simplify field service and warranty support.
- Service and repair centers: Use standardized SDI testers (or software) to diagnose faults, read sensor values and update device settings.
- Firmware and diagnostic software developers: Build compliant tester/client tools and DUT diagnostic modules compatible with ECHONET/ECHONET Lite.
- System integrators and building automation: Integrate device diagnostics into facility management and remote monitoring systems.
- Quality assurance and test labs: Automate device acceptance testing using the SDI and ECHONET object definitions.
Related Standards
- ECHONET specification v2.11
- ECHONET Lite specification v1.11
- IEC family standards on device interoperability and diagnostic interfaces
Keywords: IEC 62394:2017, Service Diagnostic Interface, SDI, ECHONET, ECHONET Lite, service diagnostic software, consumer electronics diagnostics, device diagnostics, tester software.
