Overview

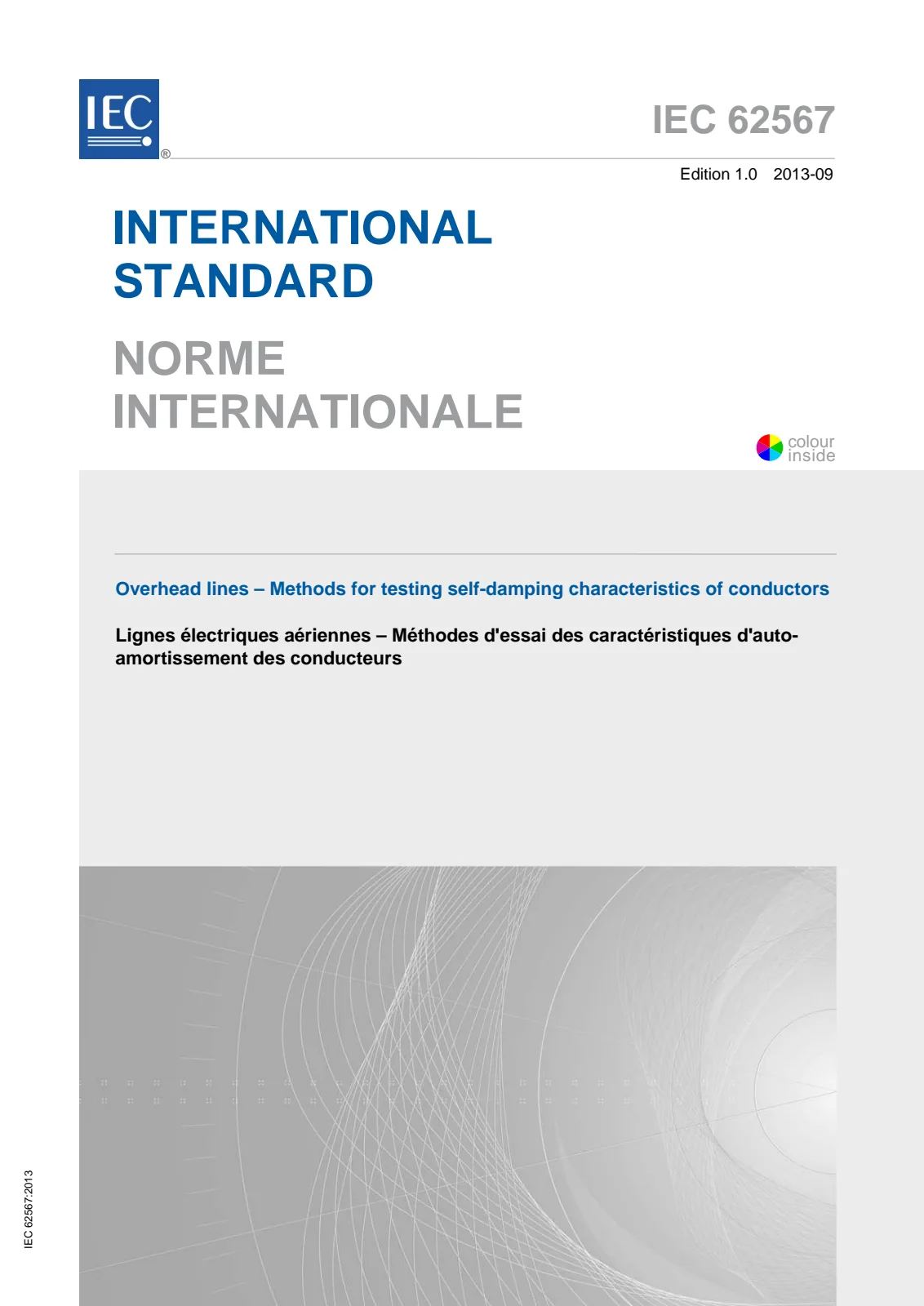

IEC 62567:2013 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies standardized methods for testing the self-damping characteristics of conductors used in overhead power lines. Self-damping is a critical property influencing conductor behavior under wind-induced vibrations and affects the operational reliability and longevity of overhead transmission lines.
The standard provides detailed procedures, apparatus specifications, and data evaluation methods for conducting self-damping tests on conductor samples within controlled indoor laboratory spans. These methodologies are grounded in over 30 years of cumulative experience and aim to harmonize testing results by minimizing discrepancies across different laboratories and practices.
Key Topics
-
Self-Damping in Conductors: Self-damping refers to a conductor's inherent ability to dissipate energy internally during vibrations, primarily attributed to frictional effects between individual wire strands within the conductor and, to a lesser extent, hysteresis at the molecular level.
-
Testing Methods: IEC 62567 outlines three accepted methods for measuring self-damping:
-
Power Method (Forced Vibration): Measures power dissipated by the conductor through forced resonant vibrations at multiple harmonics, analyzing the energy required to maintain vibration.
-
Inverse Standing Wave Ratio (ISWR) Method (Forced Vibration): Assesses nodal and antinodal vibration amplitudes to estimate power dissipation characteristics without direct force measurement.
-
Decay Method (Free Vibration): Observes how vibration amplitude decays over time after initial forced excitation, providing insight into energy dissipation rates.
-
Test Setup and Apparatus: The standard defines key components and arrangements, such as span terminations, types of shakers, and connection methods (rigid or flexible) between the shaker and conductor. It also details transducers and measurement device specifications necessary for accurate data collection.
-
Data Reduction and Reporting: IEC 62567 specifies standardized data formats and provides recommendations for correcting extraneous effects like aerodynamic damping and phase shifts between measurement devices to ensure reliable interpretation of self-damping parameters.
-
Strengths and Weaknesses: The document offers guidance on choosing the appropriate method depending on laboratory capabilities and application needs, acknowledging each method’s advantages and limitations.
Applications
-
Overhead Transmission Line Design: Accurate self-damping data supports the design of conductors and dampers that mitigate wind-induced vibrations, improving the mechanical integrity and reliability of overhead lines.
-
Quality Control and R&D: Manufacturers and researchers use these standardized tests to characterize new conductor types and verify compliance with design specifications, especially important for novel conductor constructions differing from conventional stranded types.
-
Performance Assessment: Power utilities and testing laboratories leverage these methods to evaluate conductor aging effects and performance under varying environmental conditions.
-
Standardization and Industry Harmonization: By unifying testing methodologies, IEC 62567 enables more consistent comparisons of self-damping characteristics across different products, laboratories, and geographic regions.
Related Standards
-
CIGRE Technical Brochures: The IEC standard references comprehensive technical documents produced by CIGRE (International Council on Large Electric Systems) that align with and complement its methodologies.
-
IEEE Std. 563-1978: An earlier guide on conductor self-damping measurements jointly developed by IEEE and CIGRE, providing foundational test methods later incorporated and refined in IEC 62567.
-
IEC Standards on Overhead Lines: Other IEC standards dealing with overhead conductor specifications, vibration mitigation devices, and mechanical testing complement IEC 62567 to ensure comprehensive assessment of conductor performance.
IEC 62567:2013 plays a pivotal role in advancing the precision and uniformity of self-damping measurements for overhead line conductors, fostering enhanced understanding and better-performing transmission infrastructure worldwide. It is an essential reference for test engineers, manufacturers, utilities, and research institutions focused on overhead power line reliability and innovation.
