Overview
IEC 62680-1-6:2019 is an international standard developed by the International Electrotechnical Commission (IEC) for defining the Universal Serial Bus (USB) Audio 3.0 Device Class basic functions. This standard aims to improve interoperability between hosts (such as computers and mobile devices) and USB audio devices (such as headsets, speakers, and microphones) by clarifying baseline requirements and essential features. Following this standard enables device manufacturers to deliver consistent user experiences and helps streamline host driver development.
Key Topics
-
Interoperability and Consistency:
The standard establishes a framework for higher-level compatibility among USB Audio devices and host systems by specifying essential audio features and behaviors for Audio Device Class (ADC) 3.0 compliant hosts and devices.
-
Basic Audio Device Definition (BADD):
IEC 62680-1-6 introduces the concept of the Basic Audio Device Definition, which restricts and clarifies subsets of the broader Audio 3.0 specification. It focuses on three main audio function types:
- Basic Audio Output Function (BAOF): Converting digital signals received over USB into sound.
- Basic Audio Input Function (BAIF): Capturing audio and transferring it via USB as digital signals.
- Basic Audio Input/Output Function (BAIOF): Combining input and output capabilities, including features like sidetone (mixing input audio into the output).
-
Profiles and Descriptors:
The specification outlines predetermined audio profiles (such as Speaker, Microphone, Headset) with unique identifiers. By referring to these profiles, host systems can accurately identify device capabilities and requirements, enabling driver simplification.
-
Baseline Compliance and Restrictions:
Devices adhering to BADD must follow standardized requirements, configurations, and limitations set out in this document. Deviations lead to non-compliance, ensuring that all BADD-compliant devices exhibit uniform behavior.
-
USB AudioStreaming Interfaces:
The document provides requirements and guidelines on USB AudioStreaming interfaces, including supported USB speeds, synchronization types (Synchronous or Asynchronous), and restrictions on alternate settings for isochronous transfers.
Applications
IEC 62680-1-6:2019 is valuable for:
-
USB Audio Device Manufacturers:
Manufacturers can rely on the standard to design products like headsets, headphones, microphones, speakers, and speakerphones that guarantee seamless operation with a wide variety of host devices. The defined USB audio device class profiles reduce design complexity and support faster time to market.
-
Host System Developers:
Developers of operating systems or device drivers can use the consistent set of requirements and profiles to create simpler, more robust drivers that work reliably with all compliant USB Audio 3.0 devices.
-
Testing and Certification Labs:
Certifying products against a clear, IEC-approved baseline allows for consistent quality metrics in USB audio hardware, fostering greater interoperability and end-user satisfaction.
-
End Users:
Consumers benefit from predictable, plug-and-play USB audio experiences, regardless of device brand or model, due to adherence to the common specification.
Related Standards
IEC 62680-1-6:2019 complements other important USB and audio standards, including:
-
Universal Serial Bus Specification, Revision 2.0 & 3.1:
The foundational documents for USB physical and logical layers.
-
USB Device Class Definition for Audio Devices Release 3.0:
The comprehensive audio class specification on which BADD is based.
-
USB Audio Data Formats and Terminal Types Release 3.0:
Specifications related to supported data formats and terminal classifications for USB audio products.
-
USB Human Interface Device (HID) Specifications:
For USB devices integrating control and input functions in addition to audio.
Adherence to IEC 62680-1-6:2019 within the USB ecosystem contributes substantially to device interoperability, reduces support burdens, and enhances user experience across diverse audio applications.

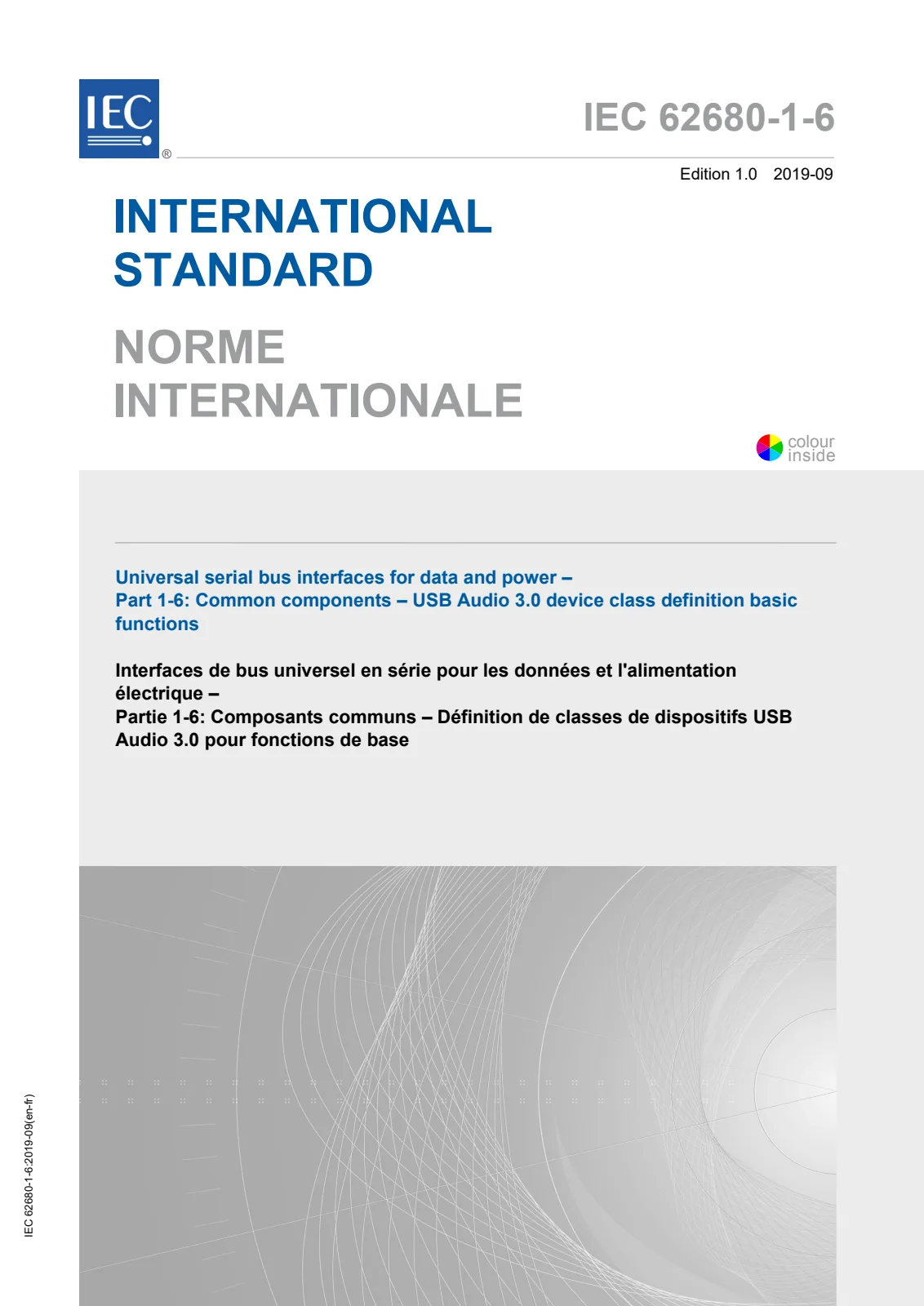

Open preview (PDF)Universal serial bus interfaces for data and power - Part 1-6: Common components - USB Audio 3.0 device class definition basic functions
