Overview
IEC TS 62771:2012 is a technical specification published by the International Electrotechnical Commission (IEC). It provides a formal reference information model for the concepts and methods outlined in several key IEC standards: IEC 81346-1, IEC 81346-2, IEC 61175, IEC 61666, and IEC 81714-3. The specification is designed to harmonize and support the consistent exchange of information related to the structuring and designation of industrial systems, installations, equipment, objects, signals, and graphical symbols.
By offering a unified reference information model, IEC TS 62771:2012 facilitates data consistency and interoperability in the electrotechnical domain. This is especially critical for organizations and professionals engaged in the design, documentation, classification, and management of complex industrial and automation systems.
Key Topics
- Reference Information Model: Outlines the relationships and constraints between primary entities such as objects, terminals, signals, aspects, classes, and classification systems.
- Normative Basis: Integrates foundational concepts from IEC 81346-1/2 (structuring principles and reference designations), IEC 61175 (designation of signals), IEC 61666 (identification of terminals), and IEC 81714-3 (graphical symbol classification).
- Data Exchange Standardization: Provides a normative model for data exchange, ensuring that transferred information adheres to recognized international standards.
- EXPRESS Language: Utilizes the EXPRESS modeling language (ISO 10303-11) for formal definition and EXPRESS-G for graphical representation of the information model.
- Data Element Types (DETs): Standardized definitions for characteristic properties and attributes, enabling unambiguous communication in electronic business and documentation.
- Multiple Views and Aspects: Supports different perspectives (e.g., function, product, location) through the aspect entity, enhancing flexibility in system documentation and management.
Applications
The information model of IEC TS 62771:2012 has broad practical value in various electrotechnical and industrial domains, including:
- System Design and Documentation: Provides a unifying framework for representing and relating objects, signals, and terminals across various industrial standards, making system documentation more robust.
- Interoperable Data Exchange: Enables seamless data transfers between enterprise systems, engineering tools, and databases by adhering to internationally recognized reference models.
- Lifecycle Management: Facilitates the coherent representation and tracking of objects, signals, and terminals throughout their lifecycle, from initial design through installation and operation.
- Digital Transformation Initiatives: Supports digitalization by structuring data in a way compatible with modern engineering tools, digital twins, and industrial automation platforms.
- Standardized Communication: Helps manufacturers, integrators, and customers work together more efficiently, using a common language for technical attributes, classification, and reference designations.
Related Standards
IEC TS 62771:2012 draws its core concepts from several pivotal IEC standards that collectively provide comprehensive guidance for the identification and documentation of industrial systems and components:
- IEC 81346-1: Structuring principles and reference designations – Basic rules.
- IEC 81346-2: Classification of objects and codes for classes.
- IEC 61175: Designation of signals in industrial systems, installations, and equipment.
- IEC 61666: Identification of terminals within industrial systems.
- IEC 81714-3: Classification and encoding for graphical symbols used in technical documentation.

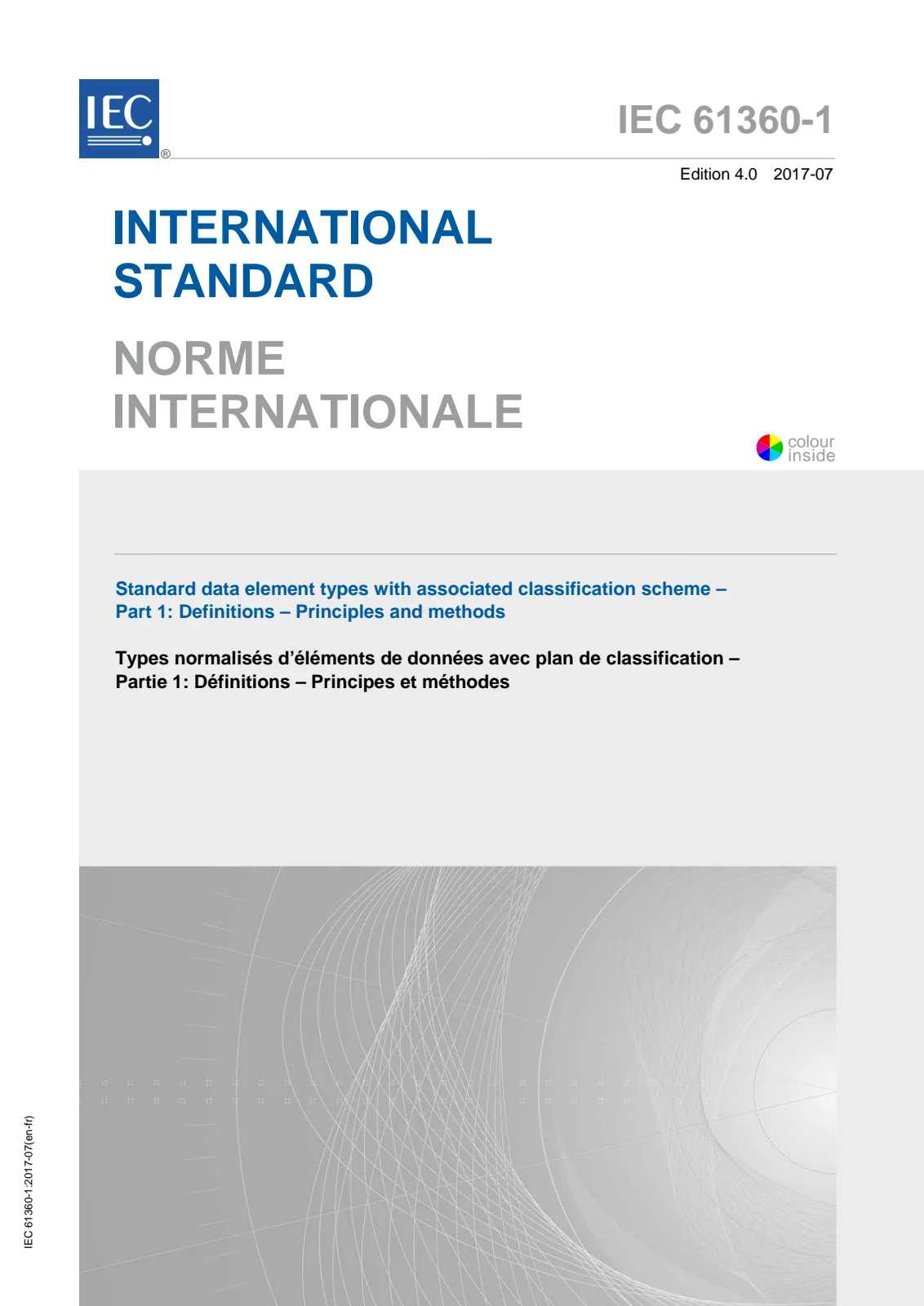

For interpreting data element types and managing properties in digital dictionaries, IEC 61360-1 (based on the IEC Common Data Dictionary) is also relevant.
Conclusion
IEC TS 62771:2012 is instrumental in advancing standardization, interoperability, and digitalization in the industrial and electrotechnical sectors. By providing a unified, formal information model based on leading IEC standards, it ensures consistent, unambiguous data exchange, supporting modern engineering workflows and efficient life-cycle management of complex systems. Organizations seeking to improve their documentation practices, streamline design processes, and engage in global collaborations will benefit from implementing this standard.
