Overview

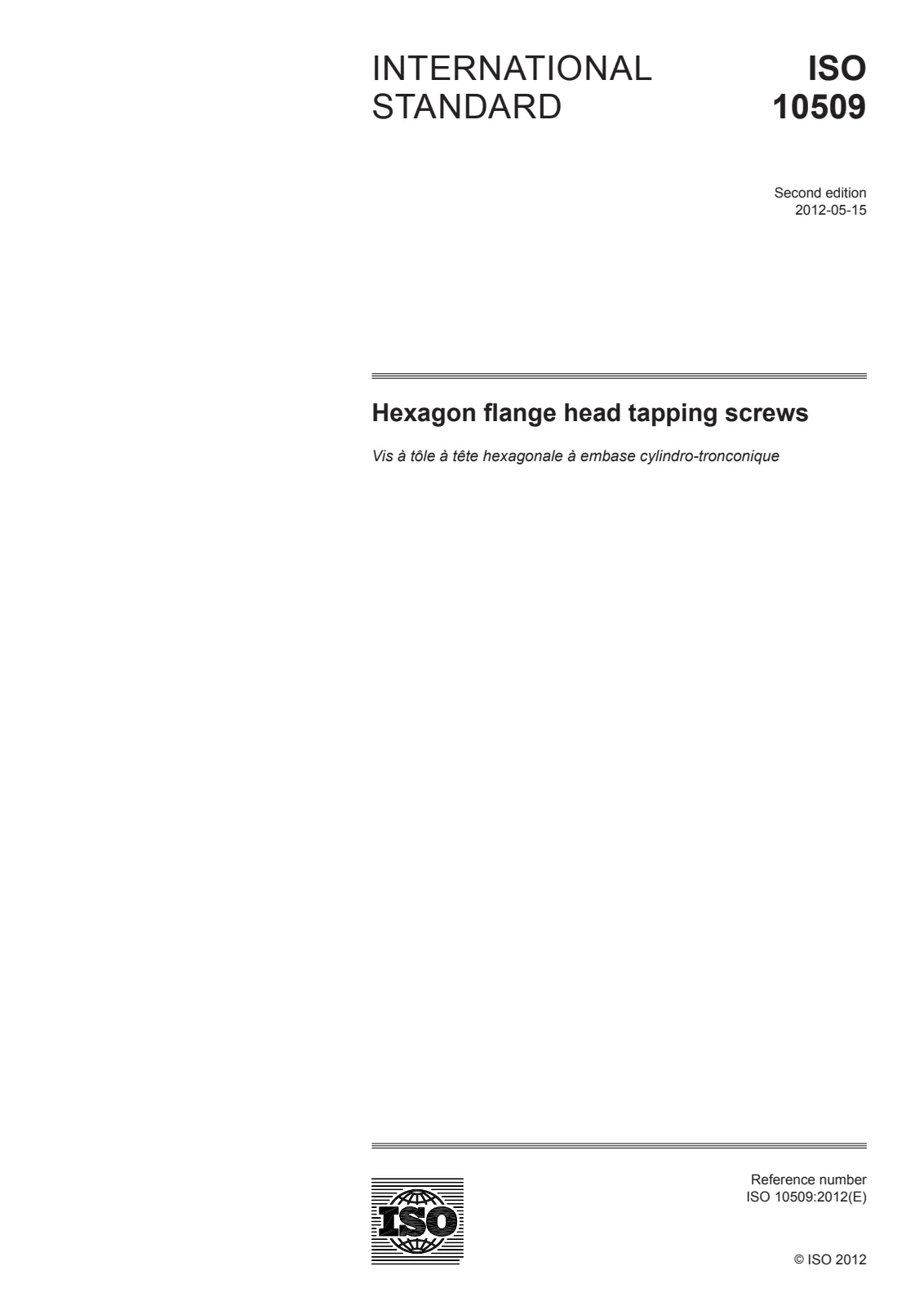

ISO 10509:2012 is the International Standard that specifies hexagon flange head tapping screws. The standard covers thread sizes from ST2,2 up to and including ST9,5, and provides the dimensional, material and acceptance framework required for consistent manufacture, inspection and designation.
Key elements in the standard include references to drawings and tables (Figure 1 and Table 1) for dimensions, normative references to related ISO documents for materials and coatings, and a normative annex for head and flange gauging.
Key Topics
- Scope and sizes: Thread sizes ST2,2 through ST9,5 are covered; dimensional details are provided in Figure 1 and Table 1.
- Types and form: The document includes head/end types (for example Type C, Type F and Type R) and specifies where dimensions such as chamfer/radius and flange details are to be measured.
- Materials and mechanical properties: Steel tapping screws are referenced to ISO 2702; corrosion‑resistant stainless steel tapping screws reference ISO 3506-4.
- Thread and tolerances: Thread form and requirements refer to ISO 1478; product tolerances follow ISO 4759-1 (product grade A referenced in the document).
- Surface finishes and coatings: Electroplating requirements reference ISO 4042; non-electrolytically applied zinc flake coatings reference ISO 10683; passivation for stainless steel references ISO 16048.
- Acceptance and inspection: Acceptance procedure is specified in ISO 3269; general fastener requirements reference ISO 8992.
- Designation examples: The standard gives clear designation formats (example: "Tapping screw ISO 10509 - ST3,5 × 16 - St - R"), making procurement and specification consistent.
- Gauging (Annex A): A normative check describes the use of two ring gauges (A and B) to verify head and flange dimensions; Gauge A seats on the flange while Gauge B is placed on the top of the head and the two must not contact.
Applications
- Specification and procurement of tapping screws for manufacturing and assembly operations.
- Quality control and acceptance testing in fastener production and incoming inspection at assembly plants.
- Engineering design where interchangeability and conformity to international fastener norms are required.
- Coating and corrosion‑resistance decisions, using the referenced ISO documents to select suitable finishes.
Related Standards
ISO 225 - Symbols and descriptions of dimensions
ISO 1478 - Tapping screws thread
ISO 2702 - Heat‑treated steel tapping screws (mechanical properties)
ISO 3506-4 - Mechanical properties of stainless steel tapping screws
ISO 4042 - Electroplated coatings for fasteners
ISO 4759-1 - Tolerances for fasteners (product grades)
ISO 8992 - General requirements for fasteners
ISO 10683 - Zinc flake coatings (non‑electrolytic)
ISO 16048 - Passivation of stainless‑steel fasteners
ISO 3269 - Acceptance inspection procedure
By aligning design, procurement and inspection with ISO 10509:2012 and its referenced standards, organisations ensure consistent dimensions, clear designation, and reliable acceptance criteria for hexagon flange head tapping screws.
