Overview
ISO 10595:2010 defines the specification for semi‑flexible / vinyl composition tiles (VCT) made with a poly(vinyl chloride) (PVC) binder. The standard covers product construction, required performance characteristics, marking and a use classification system (referencing ISO 10874) so consumers and specifiers can judge suitability by intensity of use. Products covered may include a transparent, non‑PVC factory finish.
Keywords: ISO 10595:2010, resilient floor coverings, vinyl composition tile (VCT), PVC floor tiles, floor tile specification.
Key topics and requirements
- Scope and product types: Semi‑flexible PVC tiles including solid‑colour, through‑pattern and surface‑pattern tiles; identification by construction is required.
- Dimensional and tolerance controls: Overall thickness must meet nominal value with a tolerance of ±0.13 mm; side length, straightness and squareness limits are specified and tested per ISO 24342 and ISO 24346.
- Thermal stability: Dimensional stability after heat exposure is limited (≤ 0.20 %) and is tested per ISO 23999.
- Mechanical performance:
- Impact resistance: No cracks beyond limits when tested to ASTM F1265; tiles ≤2.5 mm thickness are dropped from 250 mm, thicker tiles from 500 mm.
- Indentation resistance: Specified range when tested per ISO 24343‑3 (test at 25 °C).
- Flexibility: Tested per ISO 24344 (Method B).
- Classification: Uses ISO 10874 scheme to assign class symbols (domestic, commercial, light industrial) indicating intended intensity of use and minimum wear‑layer/overall thickness requirements.
- Marking and traceability: Packaging and products must be marked with ISO 10595:2010 reference, manufacturer ID, product name, colour/pattern and batch number, class/symbol, tile dimensions and area per package.
Applications and who uses it
ISO 10595:2010 is intended for:
- Flooring manufacturers designing and certifying PVC VCT products.
- Architects, interior designers and specifiers selecting floor coverings for domestic, commercial or light‑industrial spaces.
- Quality and test laboratories carrying out dimensional, mechanical and classification tests.
- Procurement and facilities managers requiring compliance information and product marking for lifecycle planning and warranties.
Practical applications include schools, retail, healthcare corridors, offices and other spaces where resilient, durable tile flooring is required and classification by intensity of use informs long‑term performance.
Related standards
- ISO 10874 (classification of resilient, textile and laminate floorings)
- ISO 24340 / 24342 / 24343‑3 / 24344 / 24346 / 23999 (test methods referenced by ISO 10595)
- ASTM F1265 (impact test)
- Optional test references in Annex A (electrical resistance, reaction to fire, staining, light/heat resistance)
Using ISO 10595:2010 helps ensure VCT products meet consistent dimensional and performance criteria and supports informed specification and procurement decisions.

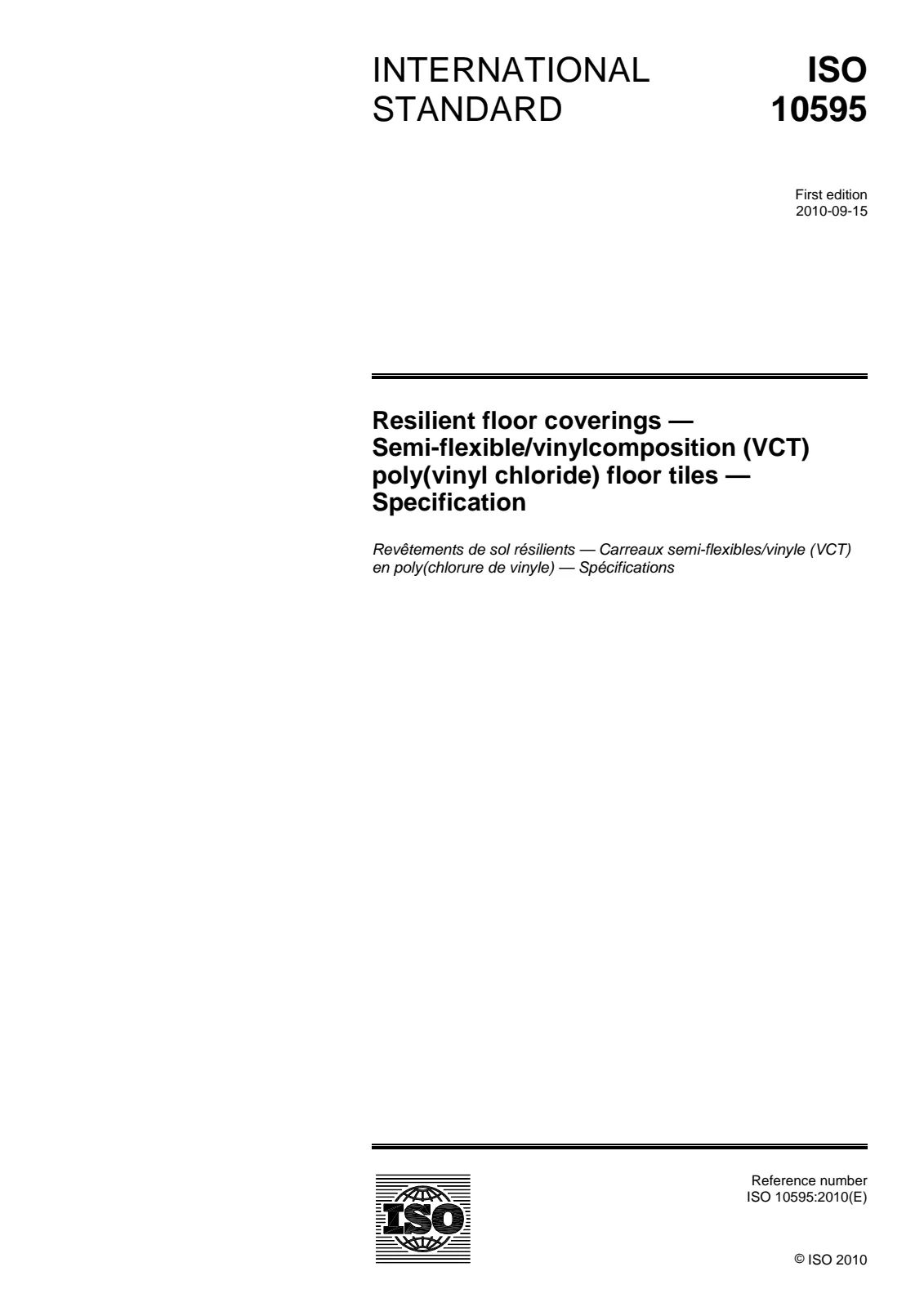

Open preview (PDF)Resilient floor coverings — Semi-flexible/vinylcomposition (VCT) poly(vinyl chloride) floor tiles — Specification
