Overview
ISO 10632:2000 specifies a rapid laboratory method for the simultaneous determination of oil and water contents in oilseed residues using pulsed nuclear magnetic resonance (NMR) spectroscopy. It applies to residues (flour, plates, agglomerates) obtained after oil extraction by pressure or solvents, provided particles are smaller than 2 mm and water content does not exceed the standard’s conversion threshold. The method gives fast, non-destructive measurements after appropriate calibration against reference methods.
Key topics and requirements
- Measurement principle: Pulsed low‑resolution NMR using a 90° RF pulse (total proton signal) and a 180° pulse (spin‑echo dominated by oil). Oil and water contents are derived from these amplitudes; difference corresponds to water.
- Apparatus: Pulsed NMR spectrometer, glass sample tubes, analytical balance (0.01 g accuracy), drying oven (103 °C ±2 °C), grinders, desiccator. Remove metallic objects near the NMR instrument.
- Calibration: Mandatory calibration with homogeneous reference samples. Procedures A (three known-content samples) or B (varying fill heights of one sample) are provided for both oil and water calibration. Calibration curves should show a correlation coefficient normally > 0.95.
- Sample preparation & conditioning: Follow ISO 5502 for sample prep; condition samples in the test room (17–28 °C) for at least 60 minutes prior to measurement. Test portions should be of constant volume (recommended fill height ~30 mm ±5 mm).
- Measurement details: Minimum total measurement time ~25 s. Perform at least two determinations per test sample and report the arithmetic mean.
- Reporting: Test reports must identify the sample, sampling method, NMR instrument, method reference, operating details, and results. Note that interlaboratory precision data were not calculated due to insufficient participants.
Applications and users
ISO 10632:2000 is practical for:
- Quality control in oilseed crushing plants and solvent extraction operations (monitoring residual oil in meals/cakes)
- Feed and food laboratories assessing moisture and oil levels in by‑products
- Research and development in oilseed processing and NMR method validation
- Instrument manufacturers and calibration service providers
Keywords: ISO 10632:2000, pulsed NMR spectroscopy, oilseed residues, oil content determination, water content, NMR calibration, rapid oil/water analysis.
Related standards
This standard provides a fast, repeatable NMR‑based procedure for simultaneous oil and water analysis, suitable for routine process control when properly calibrated and applied.

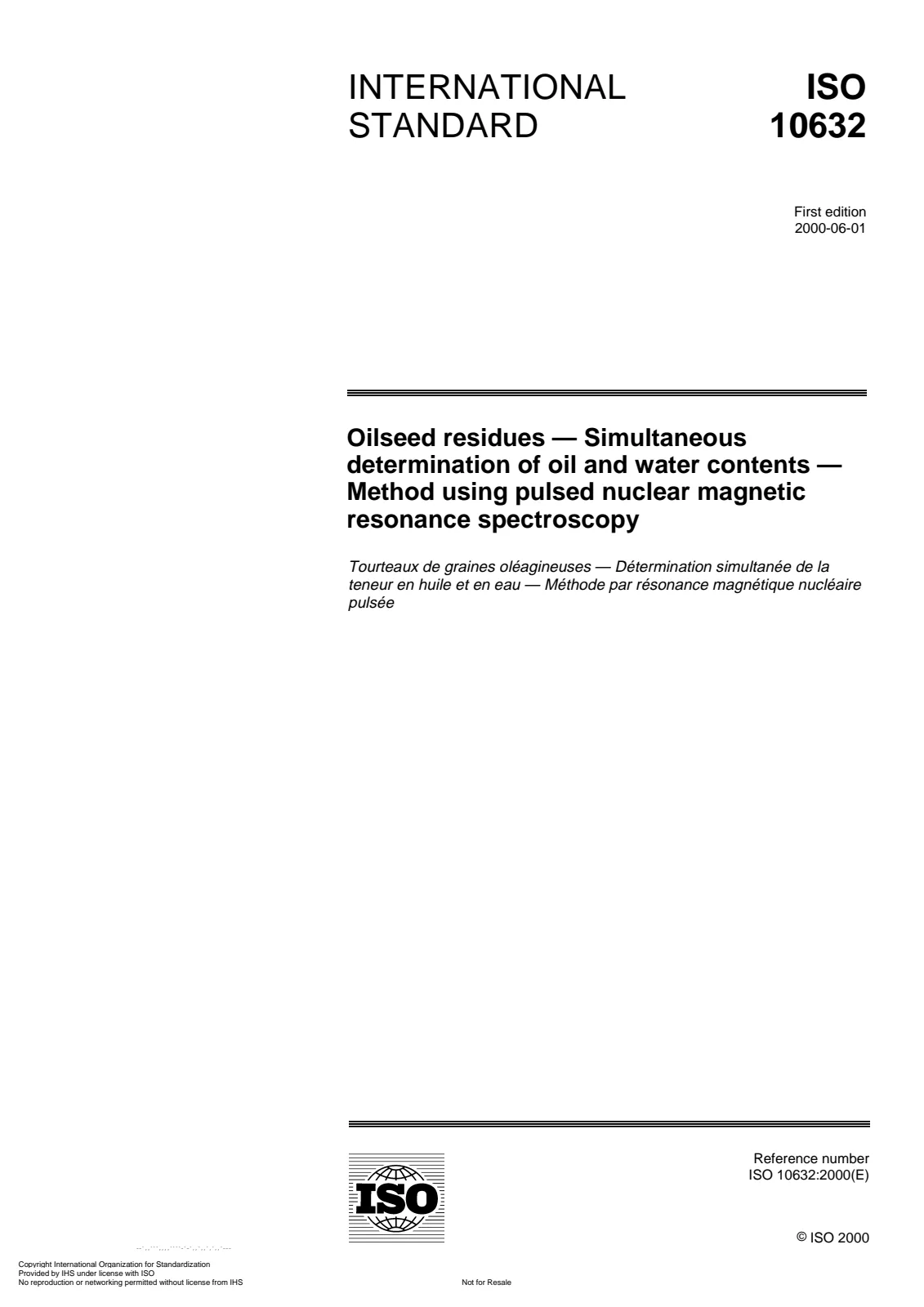

Open preview (PDF)Oilseed residues — Simultaneous determination of oil and water contents — Method using pulsed nuclear magnetic resonance spectroscopy
