Overview - ISO 12029:2010 (machine-readable forms, EDMS)
ISO 12029:2010 provides guidance and requirements for the optimal design of paper forms that are both user-friendly and machine-readable for processing by Electronic Document Management Systems (EDMS). The standard focuses on forms using Roman characters and addresses the design trade-offs between human usability (layout, instructions, colour) and automated capture (scannability, OCR/ICR reliability, data storage).
Key topics and technical requirements
- Design trade-offs: Balancing aesthetic/user needs (large print, colour cues) against scanner/EDMS constraints (segregated entry fields, dropout colours).
- Layout and page format:
- Minimum margins: 10 mm all around; ≥25 mm on bound/punched edges.
- Keep text/entry fields at least 6.5 mm from creases or perforations.
- Place logically connected information on the same page.
- Typeface, spacing and sizing:
- Prefer sanserif typefaces for scanning and OCR; serif increases compressed image storage (≈10% more).
- Minimum gap between characters: at least the width of the font’s vertical stroke.
- Character pitch limit: ≤ 0.4 characters/mm.
- Minimum height guidance: lower-case “e” should be at least 1.4 mm to ensure scannability.
- Vertical spacing: ~4.2 mm often sufficient for typewritten entries; allowance of at least twice that spacing for hand-printed entries or OCR separation.
- Machine-readable elements:
- Guidance for OCR (OCR-A, OCR-B), ICR (hand-printed recognition), MICR, OMR, and bar codes - including placement in clear recognition zones and use of quiet zones for bar codes.
- OCR characters: print at highest resolution (laser preferred); black on light background recommended.
- Data storage and imaging:
- Large areas of reversed print, screened tints, logos and heavy graphics increase image data storage; designers must consider system capacity.
- Form testing & new technology:
- The standard includes provisions for form testing and notes on emerging capture technologies to ensure reliable EDMS processing.
Practical applications and who uses ISO 12029
ISO 12029 is relevant for organizations that design, print, capture or automate paper-based information:
- Form designers and graphic designers creating customer-facing forms
- EDMS/Document imaging specialists optimizing capture workflows
- Business process analysts converting paper workflows to digital
- Printers and prepress specialists ensuring print settings meet capture needs
- Finance, healthcare, government agencies that rely on high-volume form capture (surveys, claims, cheques)
Using ISO 12029 helps reduce recognition errors, lower manual data-entry, and improve throughput when integrating paper forms with EDMS, OCR/ICR, MICR and barcode systems.
Related standards
Keywords: ISO 12029, machine-readable forms, EDMS, form design, OCR, ICR, MICR, bar codes, document management.

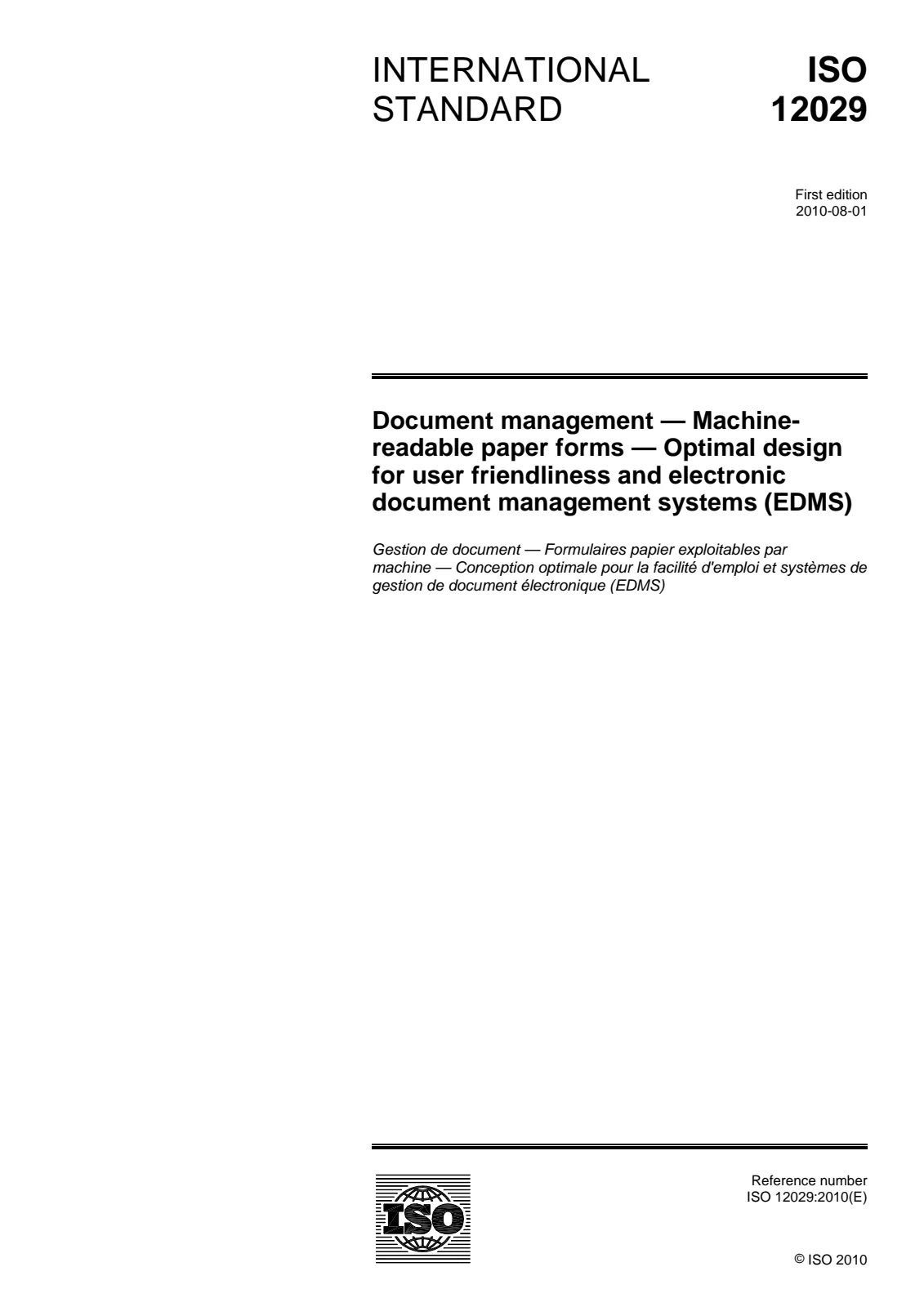

Open preview (PDF)Document management — Machine-readable paper forms — Optimal design for user friendliness and electronic document management systems (EDMS)
