Overview

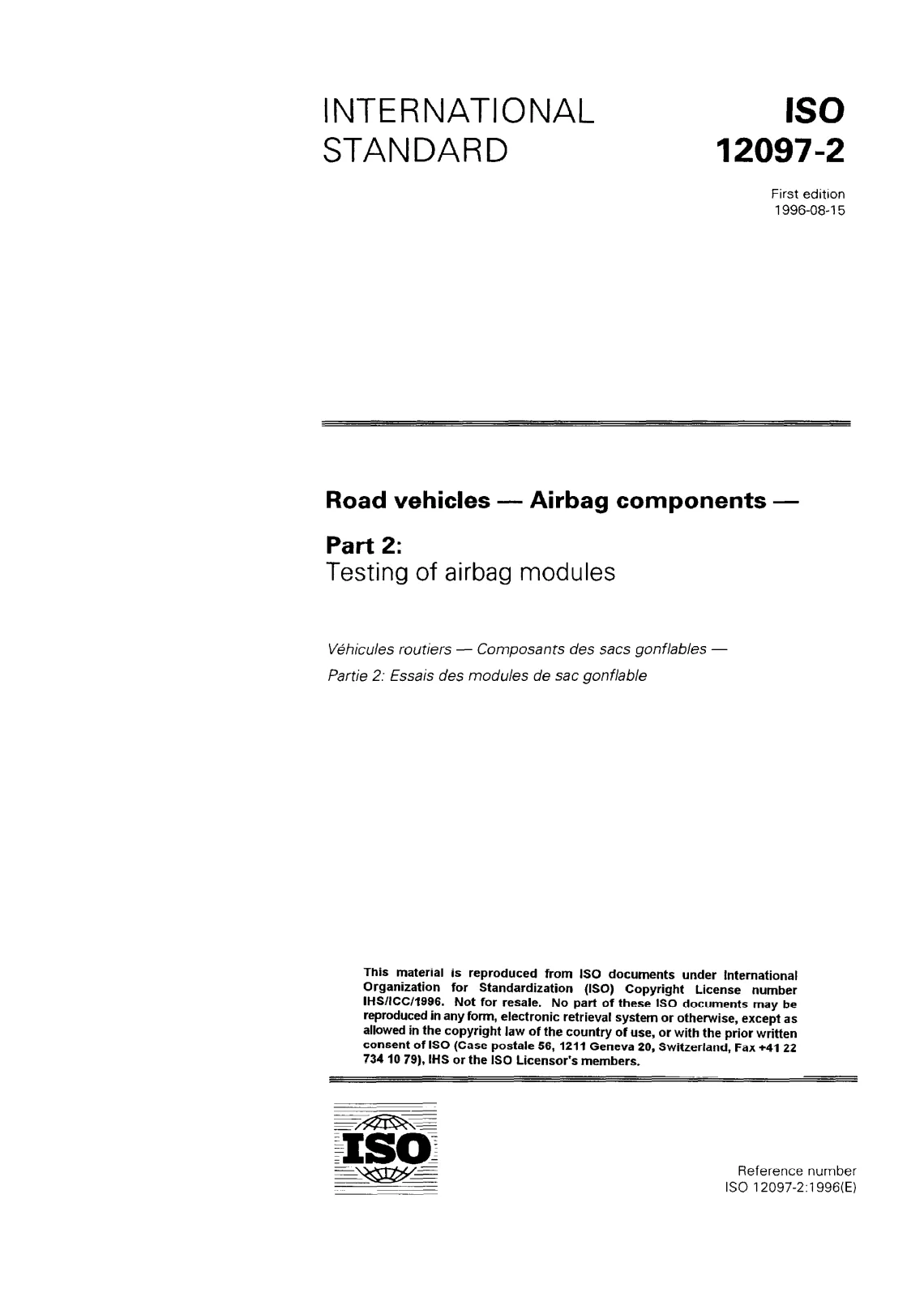

ISO 12097-2:1996 - Road vehicles - Airbag components - Part 2: Testing of airbag modules - defines uniform test methods, environmental procedures and performance requirements for complete airbag modules used in road vehicles. It is part of the ISO 12097 suite (Part 1: Vocabulary; Part 3: Testing of inflator assemblies). The standard specifies a comprehensive test programme (19 identical samples) to simulate the airbag module life cycle: shipping, storage, mounting, operation, maintenance and repair.
Key topics and technical requirements
- Environmental test programme: A prescribed sequence of tests applied to 19 samples (10 exposed, 9 unexposed) to assess robustness over the service life.
- Drop test: Verifies module integrity after free-fall impacts (drop height referenced as 1 m). Modules must remain intact and continue subsequent tests.
- Mechanical impact test: Simulates shock loads at multiple temperatures. Key points include:
- Total of 36 shocks per module (12 shocks at each of three temperatures: −35 °C, 23 °C, 85 °C).
- Nominal pulse shape is a half-sine; velocity-change tolerance ±15%; transverse peak ≤30% of intended direction.
- Dust test: Performed before vibration tests to assess abrasive particle ingress and damage to seals and materials.
- Simultaneous vibration/temperature test: Broadband random vibration applied at various temperatures to reveal fatigue, abrasion and friction failures.
- Thermal humidity cycling: Assesses water ingress, corrosion, swelling and electrical degradation when module temperature crosses ambient dew point.
- Salt spray, solar radiation simulation and temperature shock tests: Accelerated ageing and material compatibility checks (corrosion, polymer degradation, thermal expansion).
- Performance testing: Static deployment, tank tests and bag testing at specified temperatures (e.g., −35 °C, 23 °C, 85 °C) to confirm functional performance after environmental exposure.
- Safety note: The standard warns of potential accidental squib firing; appropriate handling and disarming procedures are required.
Practical applications and users
ISO 12097-2 is used to:
- Validate design and durability of complete airbag modules (OEMs and Tier‑1 suppliers).
- Develop test plans and acceptance criteria in vehicle safety laboratories and independent test houses.
- Support regulatory compliance, product development, and supplier qualification for automotive restraint systems.
- Inform quality assurance, failure analysis and corrective actions after field issues.
Typical users: vehicle manufacturers, airbag module and inflator suppliers, automotive test laboratories, safety engineers and homologation authorities.
Related standards
- ISO 12097-1: Vocabulary for airbag components (companion document).
- ISO 12097-3: Testing of inflator assemblies (complements module testing).
- Normative references cited include ISO 6487 (impact test instrumentation) and ISO 12103-1 (Arizona test dust).
Keywords: ISO 12097-2, airbag module testing, road vehicles, environmental testing, mechanical impact, drop test, vibration temperature test, thermal humidity cycling, performance testing.
