Overview
ISO 12278:1999 is an international standard developed by the International Organization for Standardization (ISO) for the aerospace industry. It specifies the dimensions of self-locking, floating, self-aligning barrel nuts with MJ threads for use in aerospace fastener applications. The standard covers several strength classifications, designated by their minimum tensile stress (900 MPa, 1100 MPa, 1250 MPa, and 1550 MPa at ambient temperature) and a maximum operating temperature of 235°C.
ISO 12278:1999 serves as a vital reference for the creation of component standards within aerospace manufacturing, ensuring dimensional consistency, compatibility, and safety in high-performance aerospace assemblies.
Key Topics
- Barrel Nut Types: Focuses on nuts that are self-locking, floating, and self-aligning. These features provide enhanced resistance to loosening due to vibration, accommodate misalignment, and allow for slight movement within the assembly.
- Thread Specification: All nuts are designed with MJ threads, which are standard metric threads optimized for aerospace fasteners according to ISO 5855-2.
- Strength Classifications: The nuts are classified by their minimum tensile stress ratings (900, 1100, 1250, and 1550 MPa at ambient temperature) and their maximum temperature rating (235°C).
- Dimensional Consistency: Specifies detailed dimensions in millimetres, ensuring uniformity after coating or lubrication, as required for precise and reliable installation.
- Procurement Alignment: Dimensions are set to comply with requirements found in ISO 5858 for the procurement of self-locking nuts.
Applications
ISO 12278:1999 is used throughout the aerospace industry for product standardization and component design, particularly in applications where:
- Vibration Resistance is Critical: The self-locking feature prevents unintentional loosening under vibration, vital for airframe and engine environments.
- Assembly Flexibility is Required: The floating and self-aligning properties simplify installation in structures where perfect alignment is difficult due to tolerances or structural movement.
- High Strength & Temperature Resistance: The multiple strength classes and temperature rating (up to 235°C) allow for use in a range of demanding aerospace environments, such as:
- Aircraft primary and secondary structures
- Engine assemblies
- Spacecraft components
- Avionics and instrumentation mounts
Manufacturers, suppliers, and engineers apply this standard to select or design fasteners compatible with aerospace systems, ensuring both product reliability and regulatory compliance.
Related Standards
Understanding and using ISO 12278:1999 in context often involves consideration of other associated standards:
- ISO 5855-2:1999 - Aerospace - MJ threads - Part 2: Defines the limit dimensions for bolts and nuts with MJ threads, forming the foundation for the thread requirements in ISO 12278.
- ISO 5858:1999 - Aerospace - Self-locking nuts with maximum operating temperature ≤425°C - Procurement specification: Provides procurement criteria and performance requirements for self-locking nuts, of which ISO 12278 specifies the dimensional aspects.
- Other Aerospace Fastener Standards: Including ISO/TC 20/SC 4 standards for aerospace fastener systems, which address performance, testing, and material requirements.
By adhering to ISO 12278:1999 and related standards, aerospace industry stakeholders can ensure the interchangeability, safety, and performance of fastener products in global markets. This standard is a cornerstone for quality control and harmonization in the design and certification of aerospace components.

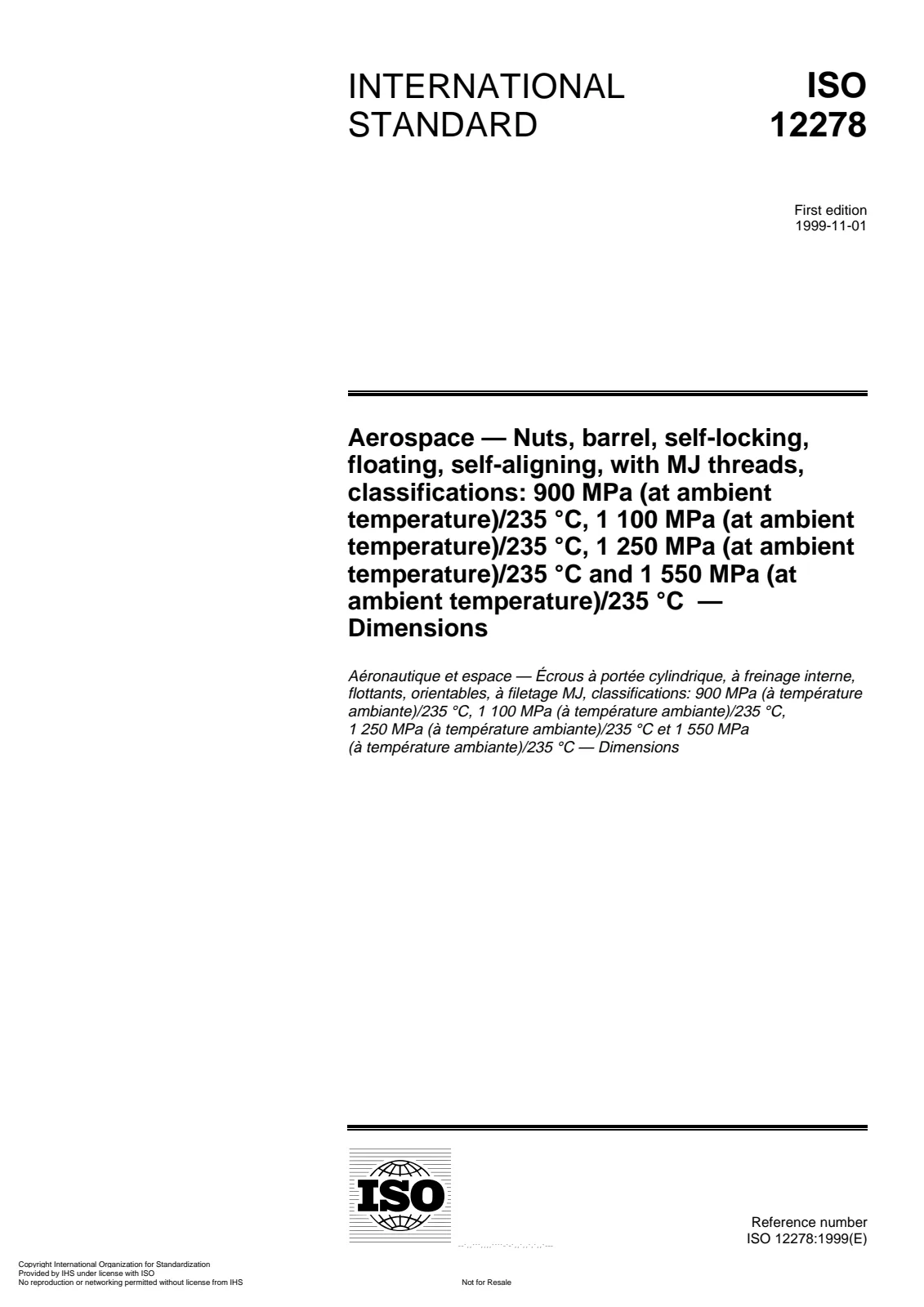

Open preview (PDF)Aerospace — Nuts, barrel, self-locking, floating, self-aligning, with MJ threads, classifications: 900 MPa (at ambient temperature) / 235 degrees C, 1100 MPa (at ambient temperature) / 235 degrees C, 1250 MPa (at ambient temperature) / 235 degrees C and 1550 MPa (at ambient temperature) / 235 degrees C — Dimensions
