ISO 13007-5:2015 PDF

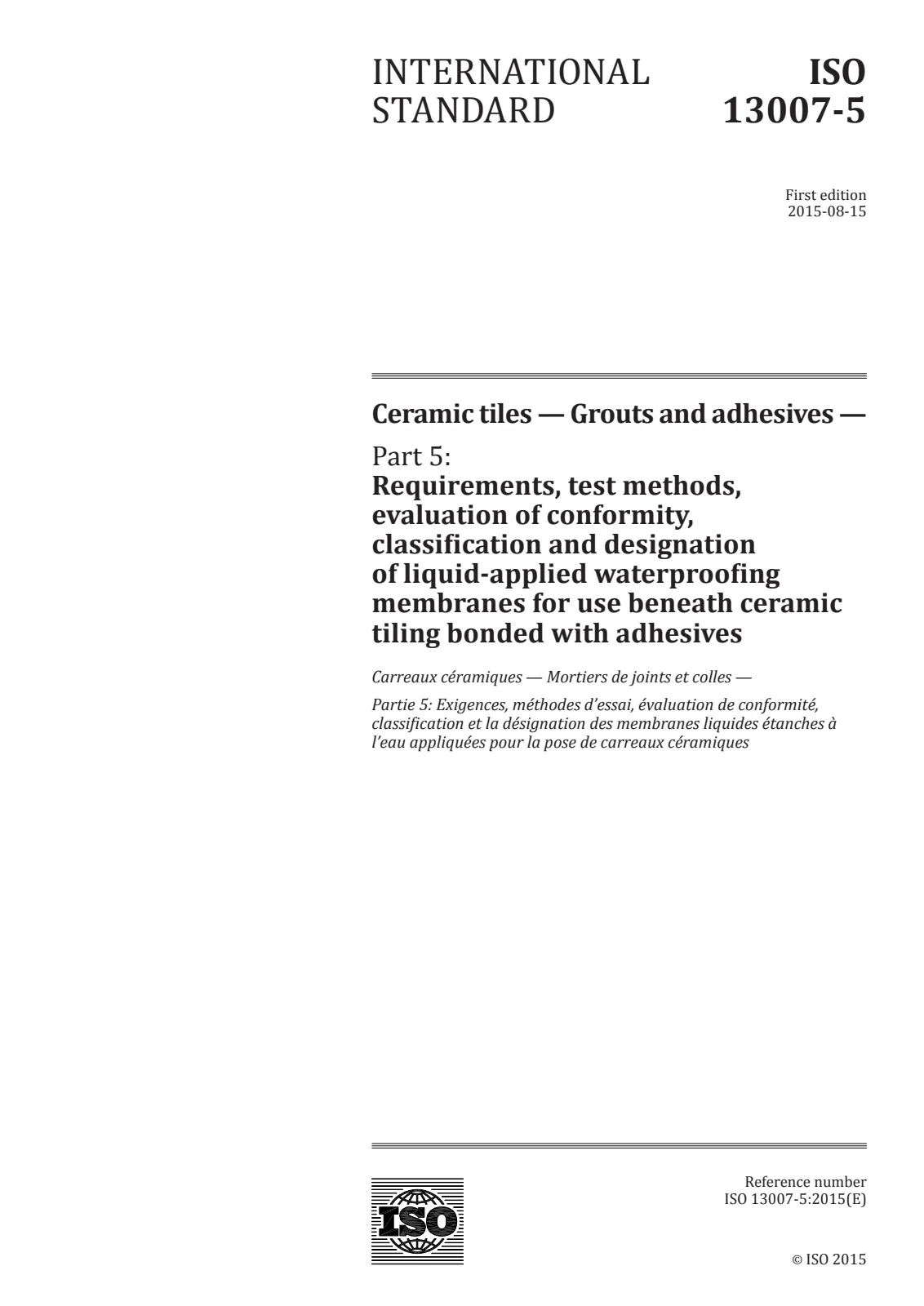

Ceramic tiles — Grouts and adhesives — Part 5: Requirements, test methods, evaluation of conformity, classification and designation of liquid-applied waterproofing membranes for use beneath ceramic tiling bonded with adhesives

Open preview (PDF)

Title (English):

ISO 13007-5:2015

Document status:: Active
Format:: Electronic (PDF)
Number of pages:: 19
Publication date:: August 14, 2015
Edition:: ISO IS 13007 edition 1 version 1
ICS:: 91.100.10

Delivery type:

Full version25 €Read online 24h10 €Read online 72h15 €

Document language:

enru

Delivery time:Immediate download

Price:25 €

Description (English):

ISO 13007-5:2015 gives terminology concerning the products, and specifies test methods (see Annex A) and values of performance requirements, for liquid-applied waterproofing products associated with tile adhesives. It specifies the evaluation of conformity and the classification and designation of liquid-applied waterproofing products beneath ceramic tiling. It is applicable to all liquid-applied waterproofing membranes ? including polymer modified cementitious coatings, dispersions and reaction resin coatings ? used beneath ceramic tiling for internal and external tile installations on walls and floors. NOTE Liquid-applied waterproofing products can also be used beneath other types of tiles (natural and agglomerated stones, etc.), as long as an adverse reaction does not occur between the membrane and the alternative tile.

Technical details

Technical committee: ISO/TC 189 - Ceramic tile
SKU: ISO 13007-5:2015

Abstract

Overview

ISO 13007-5:2015 specifies requirements, test methods, conformity evaluation, classification and designation for liquid-applied waterproofing membranes used beneath ceramic tiling bonded with adhesives. Applicable to polymer-modified cementitious coatings, dispersions and reaction-resin coatings, the standard sets terminology, performance values and labelling rules for membranes used on internal and external walls and floors. Annex A contains the normative test methods referenced in the standard.

Key Topics and Technical Requirements

Product types and terminology: three types are defined - CM (cementitious), DM (dispersion) and RM (reaction resin).
Fundamental performance characteristics (examples):
- Tensile adhesion strength: initial and after exposures (water contact, heat ageing, freeze–thaw, contact with lime water) - minimum ≥ 0.5 N/mm.
- Waterproofing: no visual penetration below the membrane and maximum ≤ 20 g weight gain.
- Crack bridging ability: ≥ 0.75 mm under standard conditions.
Optional characteristics (for special service conditions):
- Resistance to chlorinated water (for swimming pools).
- Improved crack-bridging at −5 °C (O1) or −20 °C (O2).
Classification & designation: product symbols combine type and optional class (e.g., CM, DM O1P).
Evaluation of conformity: products must meet all fundamental characteristics (and optional ones if claimed).
Marking and labelling: required information includes product name, manufacturer, batch/date, ISO 13007-5:2015 reference, product type/class, storage/shelf life, mix proportions, pot life, application method, required thickness, delay before tiling and compatible adhesives (per ISO 13007-1).
Annex A (normative): test methods, sampling (ISO 15605), test conditions, tile and substrate specifications and tensile pull-test apparatus requirements.

Applications and Who Uses This Standard

ISO 13007-5 is essential for:

Manufacturers developing and certifying liquid-applied waterproofing membranes for tiling.
Testing laboratories and conformity bodies performing standardized performance tests and issuing declarations of conformity.
Specifiers, architects and engineers writing performance-based specifications for wet areas, balconies, facades and pool installations.
Tile installers and contractors selecting appropriate membranes compatible with tile adhesives and service conditions.
Product managers and compliance teams preparing labels, data sheets and declarations to meet market and regulatory requirements.

Keywords: ISO 13007-5, liquid-applied waterproofing membranes, ceramic tiles, test methods, classification, tensile adhesion strength, crack bridging ability, pool waterproofing, tile adhesives.

Related Standards

ISO 13007-1 (adhesives) and ISO 13007-2 (test methods)
ISO 13006 (ceramic tile definitions and classification)
ISO 15605 (sampling)
Relevant EN standards referenced in the normative annex (listed in ISO 13007-5).
