Overview

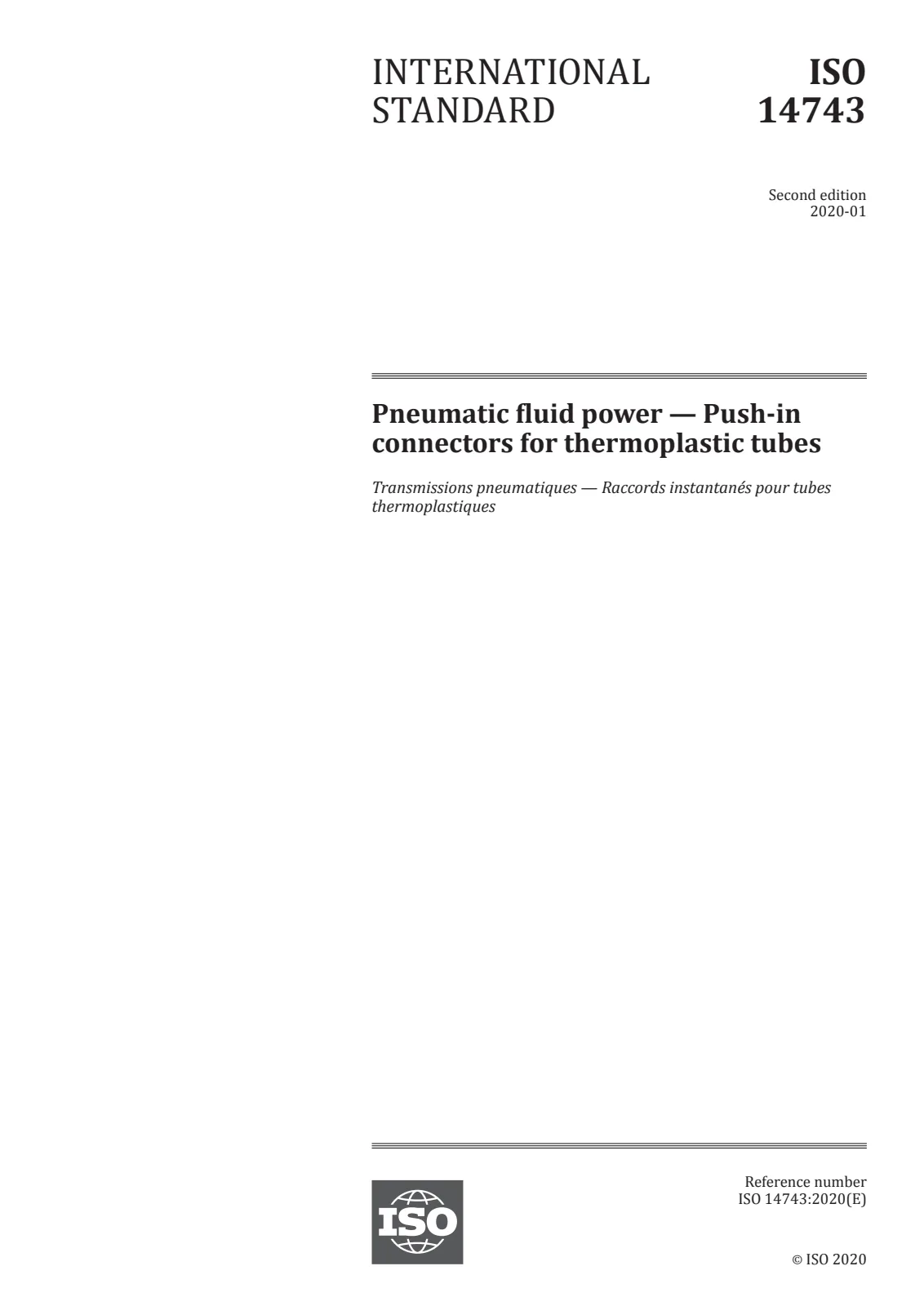

ISO 14743:2020 - "Pneumatic fluid power - Push-in connectors for thermoplastic tubes" defines uniform design, dimensional and test requirements for push-in (push-to-connect) fittings used with thermoplastic tubes. The standard covers connector assemblies for tube outside diameters (OD) from 3 mm up to 16 mm (including common inch equivalents) and establishes performance and verification methods for pneumatic fluid power applications. It is explicitly not applicable to air braking systems.
Key topics and technical requirements
- Scope & applicability: Connectors for thermoplastic tubing OD 3 mm to 16 mm (including inch sizes); intended for pneumatic fluid power systems.
- Working conditions: Connector assemblies are required to perform between –0.09 MPa and 1.6 MPa (–0.9 bar to 16 bar) at temperatures from –20 °C to +80 °C. When tubing has a lower rated pressure, the assembly’s max working pressure is that of the tubing.
- Dimensions & design: Standardized maximum tube insertion depths, dimensional tables, and optional contours; hexagon tolerances per ISO 4759‑1 (Grade C). Thread interfaces reference ISO 16030, ISO 7‑1 and relevant ANSI/ASME thread standards for inch/NPT/UNF.
- Marking & designation: Requirements for marking, designation and identification statements to reference the standard.
- Performance tests (Clause 9) - uniform test methods to assess complete assemblies, including:
- Tensile test
- Pressure at maximum temperature (for PA tubing)
- Proof and burst pressure tests (for PA tubing)
- Connecting and disconnecting force tests
- Leakage test (pre-disconnect)
- Cyclic endurance (impulse) test with vibration (for PA tubing)
- Test samples & criteria: Procedures and pass/fail criteria are specified for repeatable laboratory verification; normative annexes provide example PA and PU tubes for testing.
Practical applications and who uses this standard
ISO 14743:2020 is essential for:
- Manufacturers of push-in connectors and fittings - design, dimensioning and conformity testing.
- Pneumatic system designers and OEMs - selecting certified connectors compatible with thermoplastic tubing.
- Quality & test laboratories - performing standardized tensile, pressure, leakage and endurance tests.
- Procurement and compliance teams - verifying supplier claims and ensuring interchangeability across international markets.
- Maintenance and asset engineers - understanding performance limits and test-backed reliability for replacements.
Related standards
Standards referenced within ISO 14743:2020 include:
- ISO 16030 (ports and stud ends)
- ISO 7‑1 (pipe threads)
- ISO 4759‑1 (hexagon tolerances)
- ANSI/ASME B1.1, B1.20.1, B1.20.3 (inch/NPT/UNF thread forms)
- ISO 5598 (fluid power vocabulary)
These provide complementary requirements for threading, terminology and dimensional interfaces.
