Overview
ISO 14744-1:2008 is an international standard developed by ISO that outlines the requirements and conditions for the acceptance inspection of electron beam welding machines. This standard is primarily intended for machines upon their initial installation at the user’s premises. Acceptance inspections ensure that electron beam welding equipment performs reliably and consistently, supporting the production of high-quality welded components, especially in critical applications such as aerospace, pressure vessels, and advanced manufacturing sectors.
Key Topics
- Scope of Inspection: The standard covers principles and acceptance conditions for electron beam welding machines. It specifies acceptance checks following first installation, after relocation, rebuilding, maintenance, or major operational changes.
- Inspection Parameters: Key parameters evaluated include:
- Accelerating voltage characteristics
- Beam current characteristics
- Lens current characteristics
- Speed characteristics and reproducibility of movement mechanisms
- Run-out accuracy of positioning devices
- Stability of the electron beam spot position
- (Optional) Pressure rise rate within the machine chamber
- Acceptance Procedure: Inspections focus on ensuring machine parameters operate within agreed limit deviations to guarantee consistent output quality and reproducibility.
- Reporting and Documentation: All acceptance inspection results must be formally recorded in a test report referencing this part of ISO 14744, including measured results, assessment, responsible personnel, and device settings.
- Safety Considerations: While operational safety aspects such as x-ray shielding and electrical protection are acknowledged, their inspection falls outside the scope of this standard and should follow local regulations and related standards (e.g., IEC 60204-1).
Applications
The proper application of ISO 14744-1:2008 provides significant benefits in both procurement and ongoing operation of electron beam welding machinery. Typical uses include:
- Initial Equipment Acceptance: Ensures that newly installed electron beam welding machines meet agreed performance criteria before entering production.
- Quality Assurance: Offers an objective basis for verifying reproducibility and stability of critical welding parameters, essential for consistently producing high-integrity welds.
- Maintenance and Reinstallation: Offers guidelines for reinspection after machine relocation, major repairs, or up-grades to verify ongoing compliance and operational integrity.
- Contractual Reference: Can be cited in supply contracts and procurement documentation to define acceptance standards and reduce disputes between users and manufacturers.
- Inspection and Calibration: Supports inspection bodies and quality assurance teams in verifying equipment suitability without the need for additional tests, when accompanied by routine inspection records.
Related Standards
For a comprehensive approach to electron beam welding machine evaluation, ISO 14744-1:2008 should be considered alongside:
- ISO 14744-2 - Measurement of accelerating voltage characteristics
- ISO 14744-3 - Measurement of beam current characteristics
- ISO 14744-4 - Measurement of welding speed
- ISO 14744-5 - Measurement of run-out accuracy
- ISO 14744-6 - Measurement of stability of spot position
- ISO 17662 - Calibration, verification, and validation of welding equipment
- IEC 60204-1 - Safety of machinery - Electrical equipment of machines
Adhering to ISO 14744-1:2008 ensures that electron beam welding machines are robustly evaluated for performance and reliability, supporting global best practices in welded product quality and equipment lifecycle management.

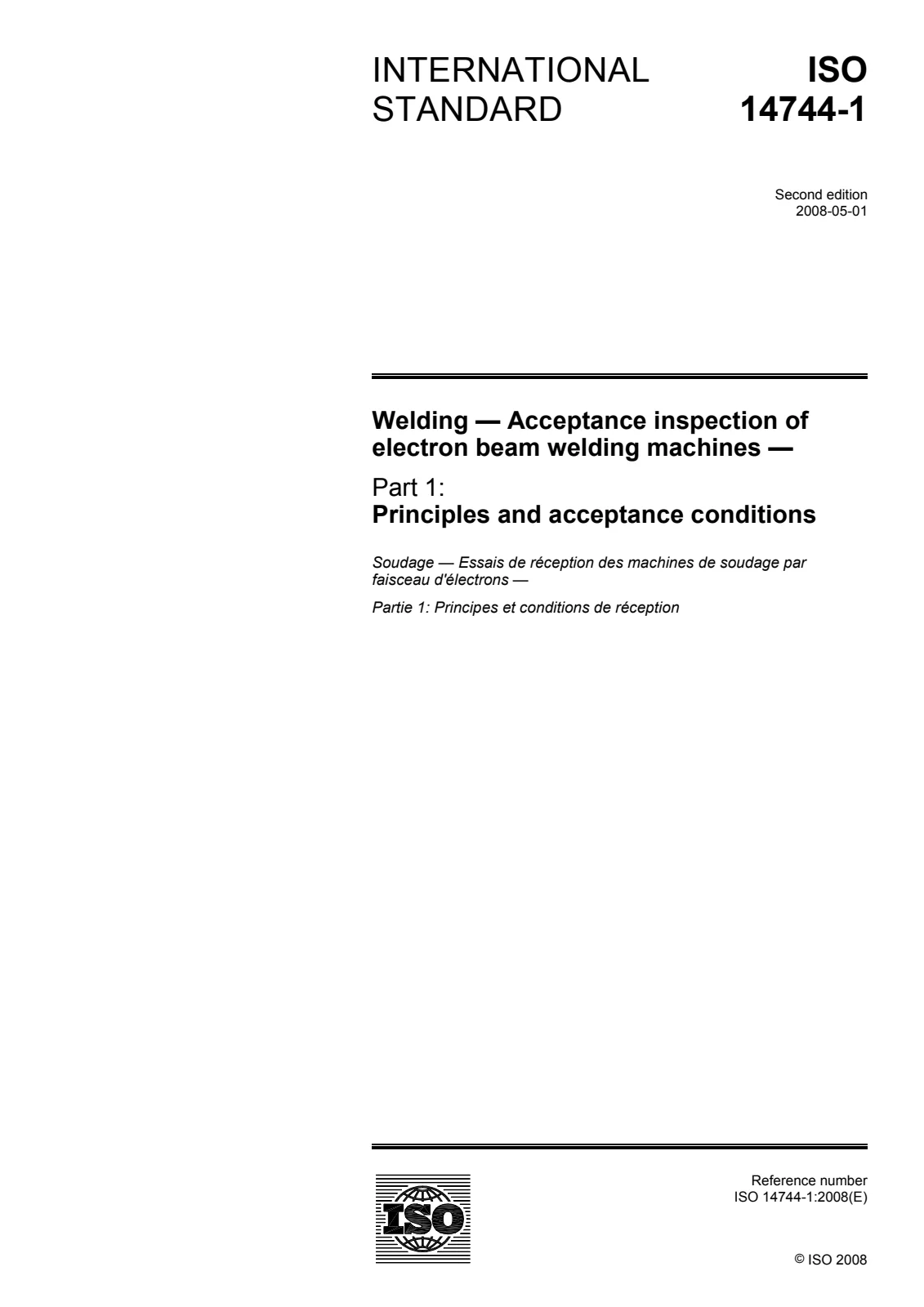

Open preview (PDF)Welding — Acceptance inspection of electron beam welding machines — Part 1: Principles and acceptance conditions
