Overview
ISO 17612:2004 - "Tractors and machinery for agriculture and forestry - Auxiliary‑power‑transmission connector for the operator station" defines the essential interface dimensions and electrical characteristics for a 12 V auxiliary power connector installed inside the enclosed operator station (cab) of agricultural tractors and machinery. The standard specifies a convenient, non-environmentally sealed power outlet (power strip socket and matching plug) intended to supply auxiliary devices without modifying the vehicle wiring harness. The device is limited to a nominal +12 V d.c. system and a maximum current capacity of 30 A per connector.
Key topics and technical requirements
- Voltage and current
- Nominal voltage: +12 V d.c. at Contacts A and C (with reference to Contact B).
- Maximum current: 30 A total per connector (sum of switched and unswitched currents). Not applicable to 6 V or 24 V systems.
- Contact layout and function
- Three contacts: A = unswitched +12 V, B = negative battery reference (ground), C = switched +12 V.
- Contact positions and mating geometry are defined by the standard’s figures; tolerances follow ISO 2768-1.
- Mechanical features
- Connector consists of a power strip socket (one or more sockets) and a matching power strip plug.
- Each socket includes a lid that is spring-loaded or has a detent, with symbols indicating contact positions and functions.
- Female contacts must be at least tin‑plated to ensure reliable mating.
- Electrical protection & grounding
- Circuit protection for Contacts A and C must be provided and sized in line with the 30 A limit.
- Contact B must have a dedicated path to a convenient frame ground/ battery ground termination.
Applications and who uses this standard
ISO 17612:2004 is used by:
- Tractor and agricultural machinery OEMs and designers specifying cab power outlets.
- Electrical and mechanical engineers integrating auxiliary power strips into operator stations.
- Accessory and aftermarket manufacturers producing monitors, controllers, communication devices or light-duty on-board equipment that plug into cab power outlets.
- Compliance officers and procurement teams ensuring components meet international connector interface and safety criteria.
Practical applications include powering cab monitors, light-duty controllers, remote devices and off‑the‑shelf electronic accessories without rewiring the machine.
Related standards
- ISO/TR 12369 (electrical power transmission connectors for agricultural tractors)
- ISO 1724 (road vehicle tow connectors)
- ISO 8092-2 (on-board wiring harness connections)

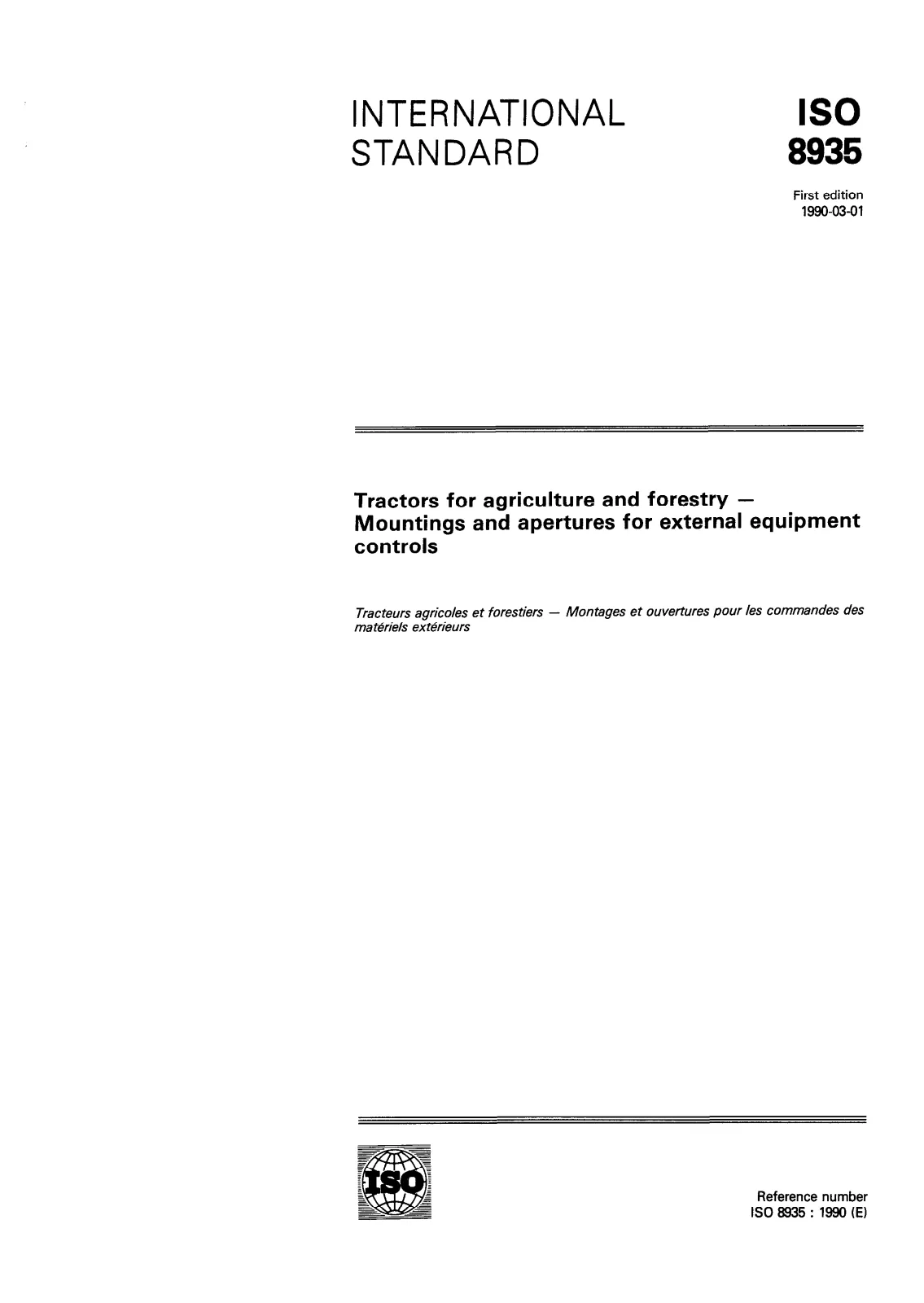

- ISO 8935 (mountings and apertures for external equipment controls)
Keywords: ISO 17612:2004, auxiliary power connector, 12 V connector, agricultural tractors, operator station, power strip socket, 30 A connector.
