ISO 17642-1:2004 is an internationally recognized standard detailing the fundamentals of cold cracking tests for weldments in metallic materials, specifically focusing on arc welding processes. This standard outlines the principles behind cold crack formation and describes a variety of destructive testing methods used to evaluate cold cracking sensitivity. It serves as the foundational document for understanding and conducting tests that assess the susceptibility of welding consumables, parent materials, and weld metals to cold cracking, also known as hydrogen cracking or delayed cracking.
The standard is part one of a series; subsequent parts, ISO 17642-2 and ISO 17642-3, provide detailed test procedures for self-restraint and externally loaded tests respectively.
Key Topics
-
Cold Cracking Fundamentals
Understanding the critical factors causing cold cracks, including microstructure, applied stresses, and hydrogen content. Cold cracks typically develop post-welding at temperatures below the solidus temperature, often hours or days after fabrication.
-
Sensitivity Testing
Methods to determine welding consumables' and materials’ susceptibility to cold cracking, focusing on hydrogen content, welding energy, preheat, interpass, and holding temperatures.
-
Test Classifications
- Self-Restraint Tests: Utilize residual stresses from weld shrinkage to stress specimens inherently.
- Externally Loaded Tests: Apply external loads to specimens to simulate stress conditions.
-
Common Test Methods
- CTS-Test
- Y-Groove (Tekken) Test
- U-Groove (Lehigh) Test
- Implant Test (externally loaded)
-
Key Parameters
- Minimum welding energy
- Minimum preheat and holding temperatures
- Maximum diffusible hydrogen content
- Critical stress levels
-
Definitions
- Cold cracks: local ruptures due to combined effects of microstructure, stress, and hydrogen.
- Cold cracking test procedures: standardized methods for evaluating susceptibility.
Applications
ISO 17642-1:2004 enables welding professionals and quality engineers to:
-
Qualify Welding Consumables and Materials
Ensure that weld fillers and base metals meet stringent quality requirements for resistance to cold cracking.
-
Optimize Welding Procedures
Establish minimum welding energy, preheat, interpass, and holding temperatures that minimize the risk of cold cracking.
-
Enhance Weld Quality Control
Monitor and control hydrogen levels and residual stresses in welded structures to prevent post-weld failures.
-
Support Safety and Reliability
Certify weldments used in critical applications such as construction, pipeline fabrication, and heavy machinery, where cracking can lead to catastrophic failure.
-
Standardize Testing Practices
Harmonize cold cracking tests globally, providing consistency in test methods, results interpretation, and regulatory compliance across industries.
Related Standards
ISO 17642-1 is part of a comprehensive framework for cold cracking testing in welds, closely linked with:
-
ISO 17642-2: Self-Restraint Tests
Details specific test procedures where the specimen is stressed by residual weld shrinkage, widely used for consumable and procedure qualification.
-
ISO 17642-3: Externally Loaded Tests
Focuses on tests where controlled external forces are applied to the weldment test samples to evaluate cracking sensitivity under varied stress conditions.
-
Welding and Inspection Standards
ISO/TC 44 series for welding processes and weld testing methods, supporting integrated quality assurance in welded joints.
By aligning with these standards, organizations can implement rigorous destructive testing protocols to mitigate cold cracking risks, ensuring weld integrity and long-term performance.
Keywords: ISO 17642-1, cold cracking tests, weldments, arc welding, destructive tests, cold cracks, hydrogen cracking, welding consumables, weld metal sensitivity, self-restraint tests, externally loaded tests, welding procedure qualification, weld quality control.

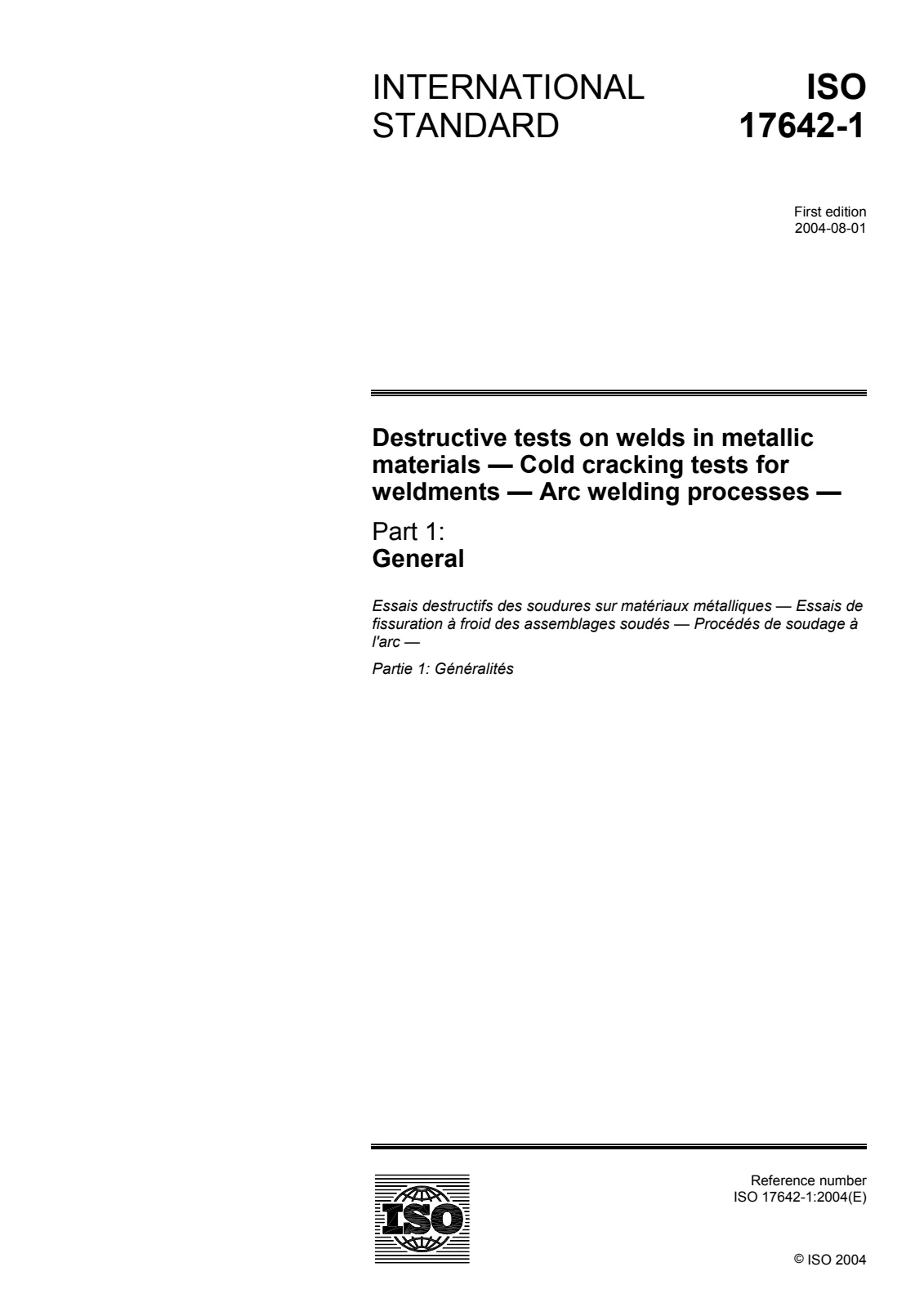

Open preview (PDF)Destructive tests on welds in metallic materials — Cold cracking tests for weldments — Arc welding processes — Part 1: General
