Overview
ISO 1780:1984 - Cinematography - specifies dimensions and specifications for the 8 mm Type S Model I motion-picture camera cartridge aperture, camera aperture profile, film position, pressure pad and pressure pad flatness. The standard applies to Model I cartridges (sound or silent) in 15 m (50 ft) or 60 m (200 ft) capacities and defines the geometric and tolerance requirements needed to ensure correct film location and flatness in the camera aperture.
Key Topics
- Aperture and film position: Exact locations and clearances for the cartridge aperture and film when the cartridge is both unloaded (manufacture) and inserted in the camera. Notable dimensional requirements include minimum lateral film offsets (T and U) and specified positions that become 1.52 mm (0.060 in) min. and 1.27 mm (0.050 in) min. after insertion.
- Pressure pad geometry and flatness: Detailed dimensions and flatness tolerances for the pressure pad film surface, divided into aperture, upper and lower areas. Flatness measurements are referenced to a zero plane established through three defined surfaces (surfaces 1, 2 and 3).
- Seating and contact features: Three pressure-pad lugs (Nos. 1–3) are intended to touch the camera aperture plate and set the film plane; lug 4 must not touch. Recess areas accommodate camera claw or alignment guide engagement.
- Manufacturing and testing conditions: Dimensional measurements are specified at 23 ± 2 °C (ISO 554). The standard permits minor corner radii and slopes for molding release and recommends use of cartridge gauging fixtures for consistent measurement.
- Operational forces: The recommended seating force on the pressure pad is 2.2 to 3.9 N (8 to 14 ozf) to ensure proper contact with the camera aperture plate.
Applications
ISO 1780:1984 is used by:
- Camera and cartridge manufacturers to design and produce compatible 8 mm Type S Model I cartridges and camera aperture interfaces.
- Quality assurance and testing labs to verify dimensional conformance, film location and pressure pad flatness during production.
- Film restoration and archiving professionals to understand original camera-cartridge tolerances and ensure accurate image capture and reprojection.
- Equipment designers and repair technicians for compatibility checks and for designing gauging fixtures or test jigs.
The standard helps ensure consistent film flatness and accurate film registration in cameras, reducing image distortion, light leakage and film pinching.
Related Standards
- ISO 3654, ISO 5759, ISO 6903 - referenced for datum definitions and cartridge-camera interfaces
- ISO 1787 - camera usage and perforation registration for 8 mm Type S
- ISO 554 - standard atmospheres for conditioning/testing
Keywords: ISO 1780:1984, cinematography, 8 mm Type S, motion-picture camera cartridge, pressure pad, aperture, film position, dimensions, film flatness.

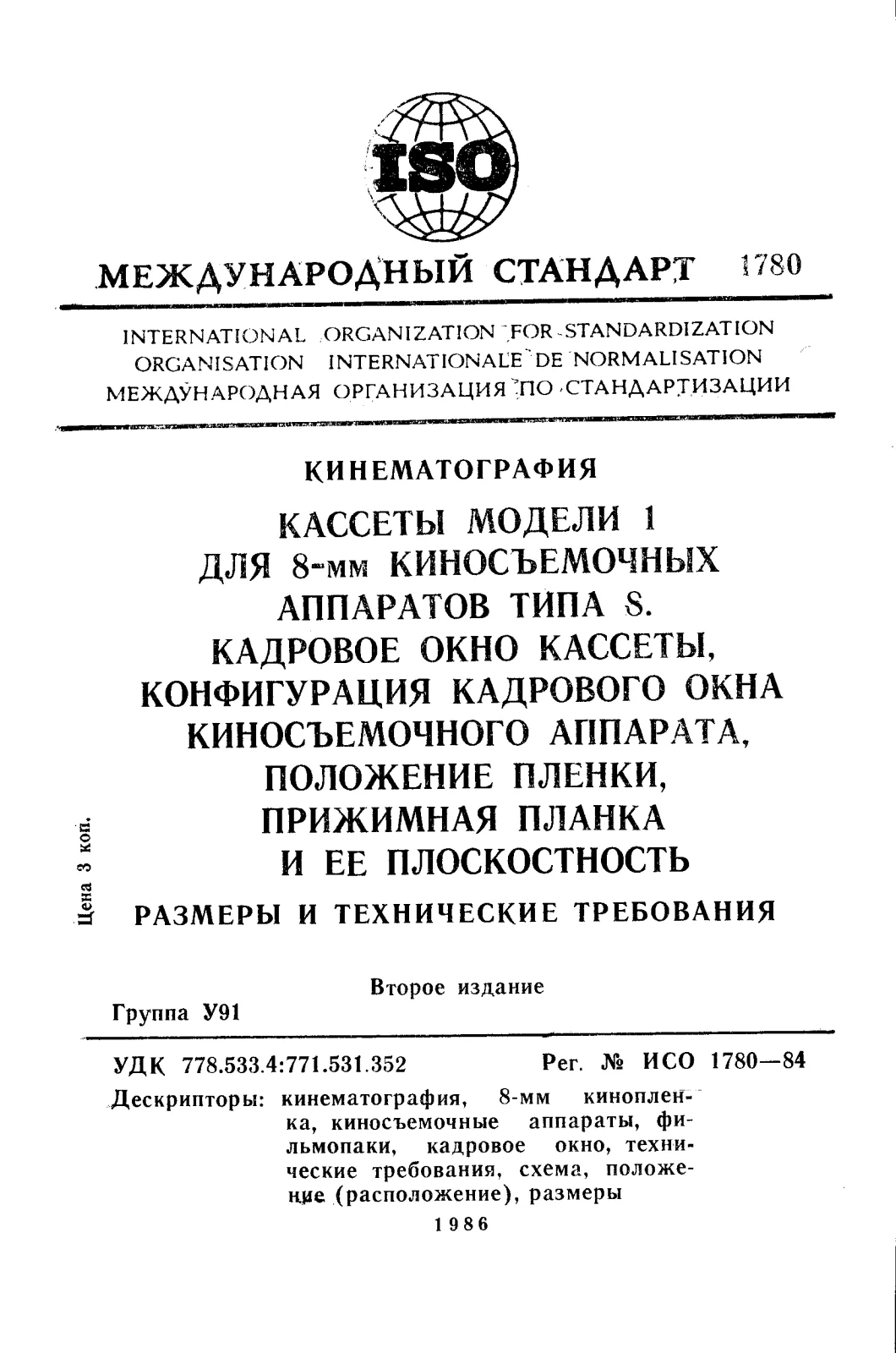

Open preview (PDF)Cinematography — Motion-picture camera cartridge, 8 mm Type S Model I — Aperture, camera aperture profile, film position, pressure pad and pressure pad flatness — Dimensions and specifications
