Overview
ISO 20041-1:2022 - "Tritium and carbon-14 activity in gaseous effluents and gas discharges of nuclear installations - Part 1: Sampling of tritium and carbon-14" specifies methods and provisions for the reliable sampling of tritium (3H) and carbon‑14 (14C) in gaseous effluents from nuclear facilities during operation and decommissioning. The standard covers selection of sampling locations, sample withdrawal (nozzle) design and positioning, transport and leak-tightness of sample lines, volumetric flow measurement, and collection methods for later laboratory analysis. It does not cover real‑time (continuous) in‑stack measurements - see ISO 2889:2021, Annex H - and analysis/calculation of sampled activities is reserved for future parts of the ISO 20041 series.
Key topics and technical requirements
- Sampling location and homogeneity criteria: guidance on choosing representative withdrawal points in stacks, ducts and discharge systems to ensure sample representativeness.
- Sampler positioning and system design: provisions for designing gaseous effluent discharge systems to accommodate samplers and minimize sampling losses.
- Sampling systems and evaluation: requirements for assessing existing sampling systems, including compatibility with tritium and carbon‑14 chemical forms.
- Flow and volume measurement: methods for measuring effluent volumetric flow and sample flow rate; importance of accurate flow data for emission quantification.
- Transport and leak tightness: provisions for gas/vapour transport, line integrity checks and prevention of losses or isotopic exchange during transit to collectors.
- Sampling techniques: documented techniques such as the bubbling technique, molecular sieve adsorption, and condensation (for tritium), with applicable use cases and limitations.
- Documentation and traceability: use of sampling and follow‑up sheets to record conditions, chain of custody and quality checks.
- Informative guidance: annexes provide flow measurement techniques, device range of use, and empirical feedback on gas penetration in sampling systems.
Applications
- Regulatory compliance and emission reporting for nuclear power plants and other nuclear installations.
- Design, commissioning and validation of stack/duct sampling systems used during operation and decommissioning.
- Environmental and radiological monitoring programs requiring reliable collection of tritium and carbon‑14 in gaseous effluents.
- Preparation of samples for later laboratory analysis and for input into facility dose and environmental impact assessments.
Who should use this standard
- Nuclear facility operators and environmental monitoring teams
- Radiological protection and compliance officers
- Sampling system designers and instrumentation engineers
- Accredited laboratories preparing for analysis (sampling protocol alignment)
- Regulators and auditors assessing sampling program adequacy
Related standards
- ISO 2889:2021 - sampling airborne radioactive materials (includes Annex H on real‑time tritium/14C measurements)
- ISO 5667-3 - sample preservation and handling (water quality)
- ISO 10780:1994 - measurement of velocity and volumetric flowrate in ducts
- Future parts: ISO 20041-2 and ISO 20041-3 (activity analysis for bubbling and molecular sieve methods)
Keywords: ISO 20041-1:2022, tritium sampling, carbon-14 sampling, gaseous effluents, nuclear installations, sampling systems, bubbling technique, molecular sieve, flow measurement, effluent monitoring, radiological protection.

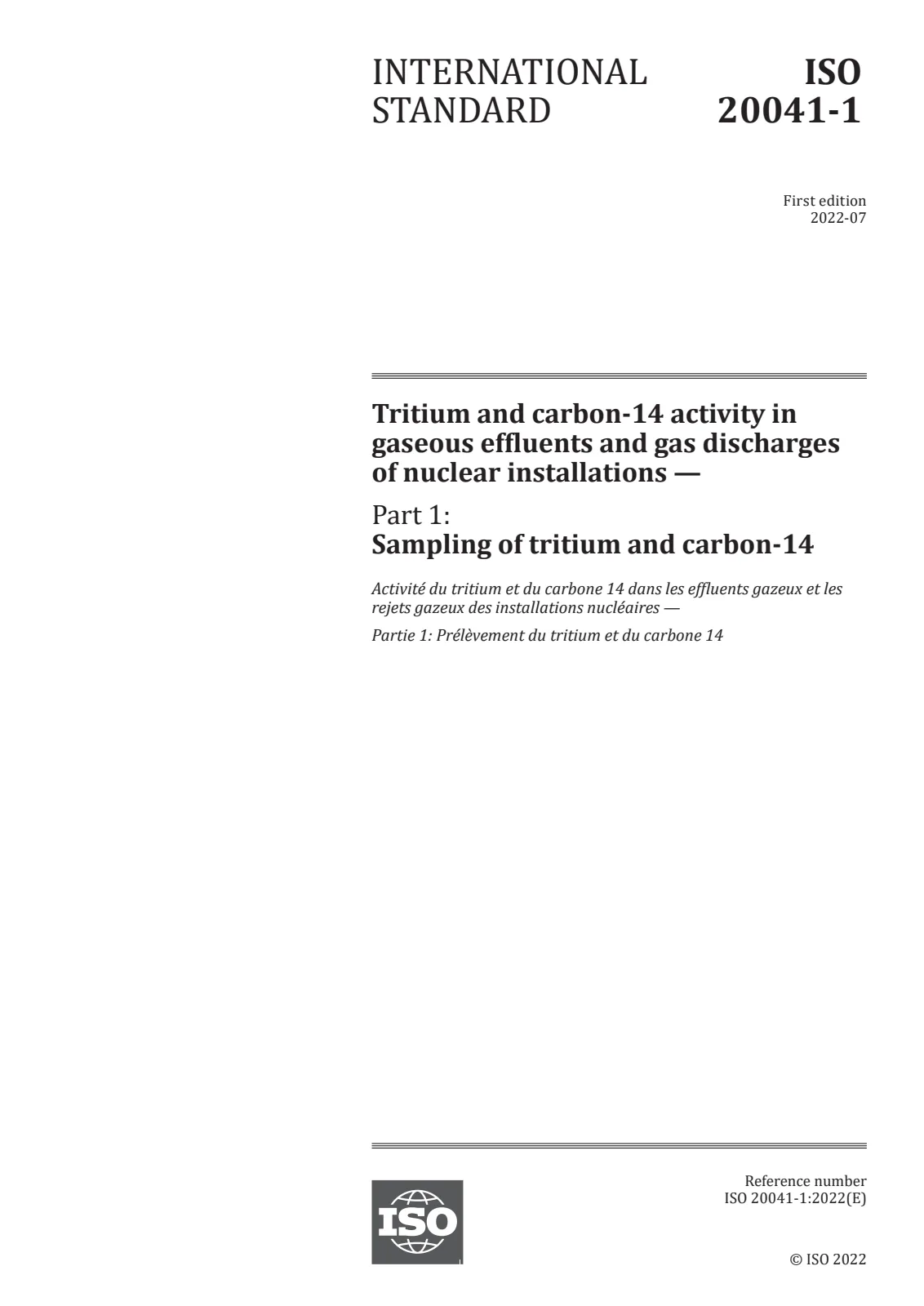

Open preview (PDF)Tritium and carbon-14 activity in gaseous effluents and gas discharges of nuclear installations — Part 1: Sampling of tritium and carbon-14
