Overview

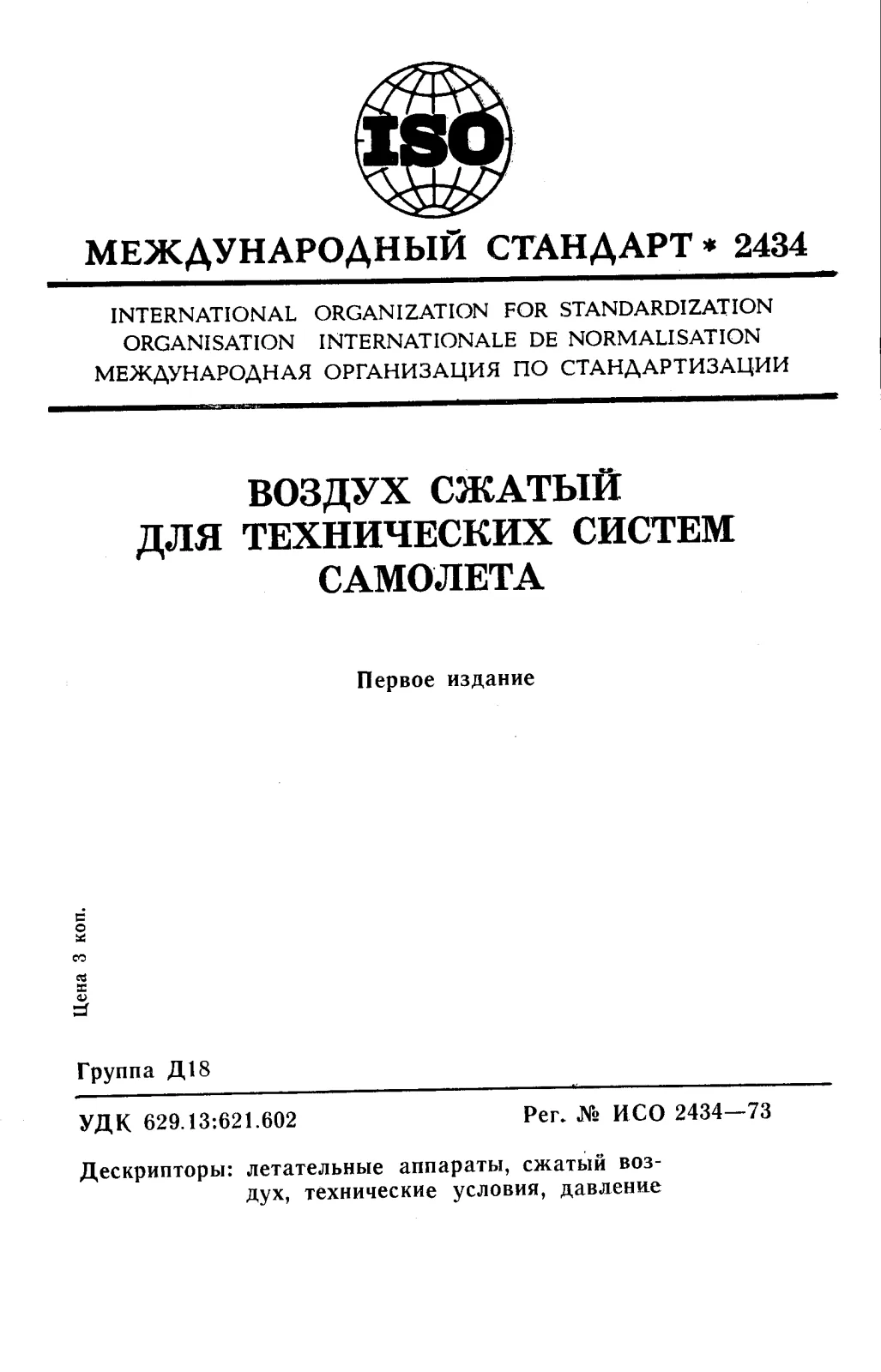

ISO 2434:1973 specifies the requirements for compressed non-breathing air used in aircraft systems. Developed by the International Organization for Standardization (ISO), this standard focuses on the pressure and purity characteristics of air compressed using oil-lubricated equipment. It is important to note that ISO 2434:1973 is not intended for air used for breathing or in oxygen systems, but rather for industrial and operational applications within aircraft.
Key Topics
- Compressed Air Quality: ISO 2434 sets strict limits for oil vapor and particulate contamination in compressed air, allowing no more than 0.005 mg per cubic decimetre of air at 15°C and 1,013 mbar.
- Water Content: The standard ensures that the water content in the air does not exceed 0.02 mg per cubic decimetre at the specified conditions.
- Pressure Specifications: Compressed air supply must achieve pressures sufficient to charge aircraft systems up to 343 bar at 20°C.
- Filtration: Any particulate matter present in the air must be capable of passing through a filter with a nominal rating of 10 microns.
- Scope Limitation: The document clearly excludes air intended for breathing and those used in oxygen systems to prevent safety risks.
Applications
ISO 2434:1973 is essential in the aerospace industry for the following applications:
- Aircraft System Activation: The standard ensures that compressed air used in various aircraft subsystems-such as hydraulic, pneumatic, and control systems-meets specific quality and pressure requirements.
- Ground Support Equipment: Maintenance and ground crews rely on iso-compliant non-breathing air to safely charge and test aircraft systems, ensuring reliability and adherence to international standards.
- Component Testing: Manufacturers and suppliers test valves, actuators, and other equipment using compressed air that complies with this standard to guarantee product compatibility and performance.
- Oil-Lubricated Compressors: By specifying acceptance criteria for air purity and moisture, the standard helps organizations select and maintain suitable oil-lubricated compression equipment for their fleets.
Related Standards
Organizations referencing ISO 2434:1973 for compressed air quality in aircraft may also consider the following standards for comprehensive compliance and operational safety:
- ISO 8573 - Compressed air quality standards for a wide range of industrial and pneumatic system applications.
- ISO 2041 - Terminology and general definitions for pneumatic systems used in aviation.
- Airworthiness Directives from aviation authorities concerning the use of non-breathing air in aircraft systems.
- EN 12021 - European standards specifying requirements for breathing air, for reference and to avoid cross-application.
Practical Value
Adhering to ISO 2434:1973 provides the following practical benefits:
- Enhanced Equipment Reliability: Minimizes risk of contamination-induced failures or corrosion within high-pressure aircraft systems.
- Operational Safety: Ensures that only air with controlled particle, oil, and moisture content is used, reducing potential risks during critical aircraft operations.
- International Compatibility: Facilitates cross-border maintenance, manufacturing, and operations by providing a universally accepted standard for compressed non-breathing air in aviation.
- Regulatory Compliance: Helps aviation organizations demonstrate compliance with ISO and related regulatory requirements during safety audits and inspections.
ISO 2434:1973 thus serves as a critical guideline for the safe and efficient use of compressed non-breathing air across modern aircraft systems.
