Overview

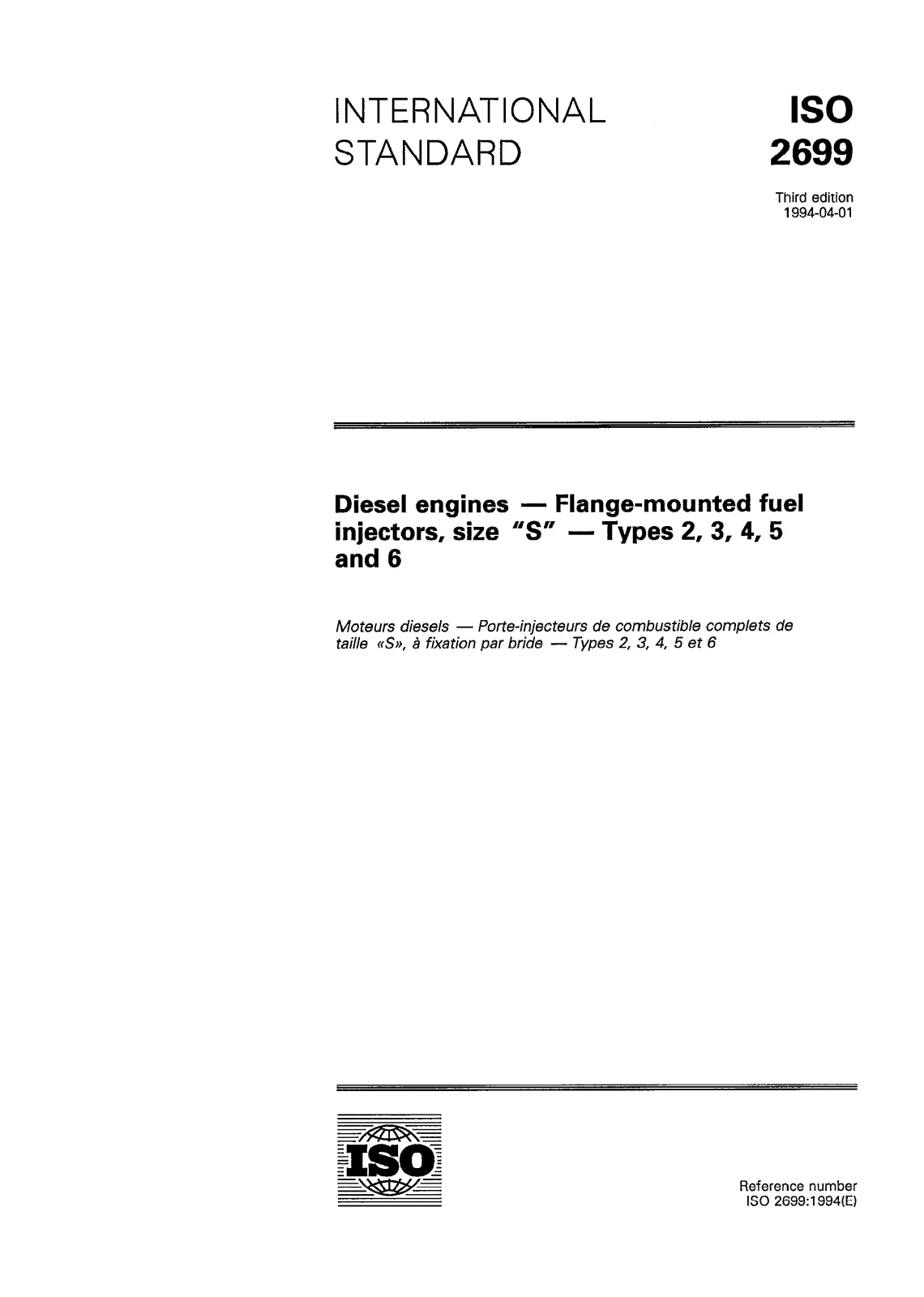

ISO 2699:1994 is an international standard developed by the International Organization for Standardization (ISO) focused on flange-mounted fuel injectors for diesel engines. Specifically, it defines the dimensions necessary to ensure proper mounting and interchangeability of size "S" fuel injector holders for types 2, 3, 4, 5, and 6. This standard supports consistency and compatibility in diesel engine components, enabling efficient design, manufacturing, and maintenance.
The standard applies to diesel engines with compression ignition and covers complete flange-mounted fuel injector holders that receive injectors specified in ISO 2697. It does not specify the exact location of fuel inlet and leak-off connections, recognizing that these vary depending on particular diesel engine applications.
Key Topics
-
Standardized Dimensions: ISO 2699:1994 prescribes detailed dimensions and tolerances for size "S" flange-mounted fuel injector holders of types 2 through 6. This includes dimensions such as the hexagon size of the injector base, length of the injector stem, and flange specifications.
-
Interchangeability: Ensures injector holders are interchangeable among diesel engines using the specified types, boosting flexibility for engine manufacturer designs and maintenance operations.
-
Compatibility with ISO 2697: The fuel injectors installed in these holders meet the nozzle specifications defined in ISO 2697, ensuring a harmonized system for fuel injection components.
-
Variable Fuel Connections: Recognizes that fuel inlet and return port locations are not uniform, allowing manufacturers the flexibility to adapt connections as needed without compromising the mounting standards.
-
Engineering Tolerances: Incorporates geometric dimensioning and tolerancing principles referenced from ISO 2692:1988 to ensure proper fit and function of injector holders even with manufacturing variations.
Applications
-
Diesel Engine Manufacturing: Provides engine manufacturers with standardized dimensions to design cylinder heads and injector mounting systems that comply with international norms, ensuring reliability and compatibility.
-
Maintenance and Repair: Enables easier replacement and servicing of injector components by assuring that fuel injector holders of the designated types and size "S" meet uniform dimensions.
-
Aftermarket Parts Production: Supports third-party manufacturers in producing compatible fuel injector holders for various diesel engines, promoting interoperability and supply chain flexibility.
-
Quality Control: Serves as a reference for verifying dimensional accuracy of fuel injector holders during production, minimizing fitting issues and promoting longevity of engine components.
-
Engine Performance Optimization: By standardizing components, the standard aids in maintaining consistent injector alignment and cooling, crucial for optimal fuel atomization and engine combustion efficiency.
Related Standards
-
ISO 2697: Specifies dimensions and requirements for diesel engine fuel injectors (nozzles), critical for compatibility with the injector holders defined in ISO 2699.
-
ISO 2692:1988: Relates to technical drawings and geometric tolerancing principles used to define manufacturing tolerances applied within ISO 2699.
-
Other Diesel Engine Standards by ISO/TC 22/SC 7: Cover additional aspects of fuel injection systems and emission control components for road vehicles equipped with compression ignition engines.
