Overview
ISO 3042:1992 establishes the minimum information specifications for labelling containers of raw-stock motion-picture films and magnetic films. This international standard ensures that critical identification details are clearly presented on film packaging to facilitate proper handling, storage, distribution, and usage in cinematography. Developed by ISO technical committee TC 36, this third edition replaces the second edition, offering refined guidelines aligned with industry practices.
Key elements covered in ISO 3042 include film type, dimensions, perforation characteristics, and winding orientation. The goal is to enable unambiguous identification and safe management of photographic and magnetic film media in professional and amateur contexts.
Key Topics
ISO 3042 specifies that film container labels must clearly indicate the following 11 mandatory items:
- Name and Type of Film: Full descriptive name, alphanumeric designation, sensitivity type, and magnetic track indication.
- Nominal Film Width: Width of the film in millimeters.
- Core Diameters: Both inside and outside diameters of the film roll core.
- Nominal Width After Slitting: Width post-cutting or slitting, where applicable.
- Perforation Pitch and Type: Perforation spacing in millimeters, including details on perforation shape and number of rows.
- Emulsion Position and Winding Orientation: Orientation symbols indicating emulsion side and roll winding direction.
- Base Type: Specification of film base material and thickness.
- Manufacturer’s Batch Number: Lot number for quality tracking.
- Film Length: Total length of film in the container, with units in meters or feet.
- Lighting Conditions for Opening: Recommendations for safe film handling environment.
- Magnetic Prestriped Mark: Mark indicating if the film has a magnetic track pre-applied.
Additional perforation characteristics and winding designations are detailed to resolve ambiguities and standardize film handling across various film formats such as 8mm, 16mm, 35mm, and larger sizes.
Applications
ISO 3042:1992 is essential for a variety of stakeholders involved in the motion picture industry:
- Film Manufacturers: To provide clear, standardized labelling on raw stock containers, ensuring consistent communication of film specifications.
- Cinematographers and Film Technicians: For correctly identifying film types and physical characteristics to optimize usage and prevent damage during handling.
- Archivists and Film Laboratories: For precise cataloguing, storage, and preservation of raw and magnetic film stock.
- Distributors and Retailers: To guarantee that end-users receive accurately labelled film packaging facilitating seamless product handling.
- Amateur Filmmakers: To understand essential film attributes such as emulsion side and perforation arrangement for home movie film stock.
The standard supports enclosures and labels that may also incorporate barcode representations of mandatory information for automated scanning and inventory control, adding practical value for logistics and stock management.
Related Standards
ISO 3042:1992 references and complements several other ISO norms relevant to cinematography film:
- ISO 69:1990 – Dimensions of 16 mm photographic and magnetic film and perforations.
- ISO 1700:1988 – Specifications for 8 mm perforated film type S.
- ISO 4246:1984 – Cinematography vocabulary for clarity of terminology.
- ISO 486:1988 – Dimensions and perforations for 16 mm perforated film, type R.
- ISO 491:1988 – Specifications for 35 mm photographic and magnetic film perforations.
- ISO 1039:1988 – Dimensions of cores used for cinematic and magnetic films.
These collaborative standards support consistent technical parameters and terminology across film production and handling processes globally.
By adhering to ISO 3042:1992, the cinematography industry ensures reliable labelling practices that enhance operational efficiency, film preservation quality, and safety measures when managing raw stock and magnetic films. This contributes to streamlined workflows from manufacturing to final film processing.

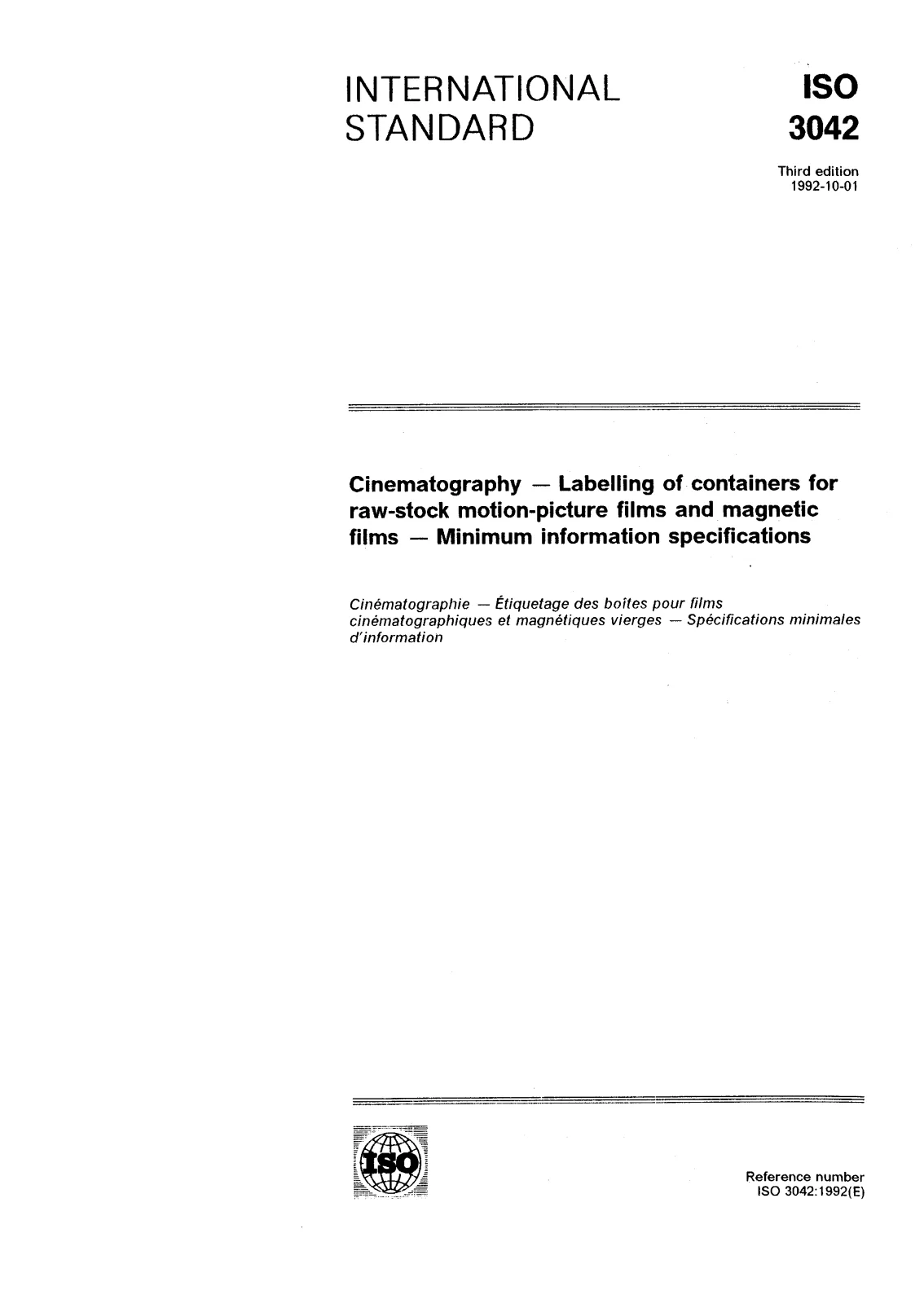

Open preview (PDF)Cinematography — Labelling of containers for raw-stock motion-picture films and magnetic films — Minimum information specifications
