Overview

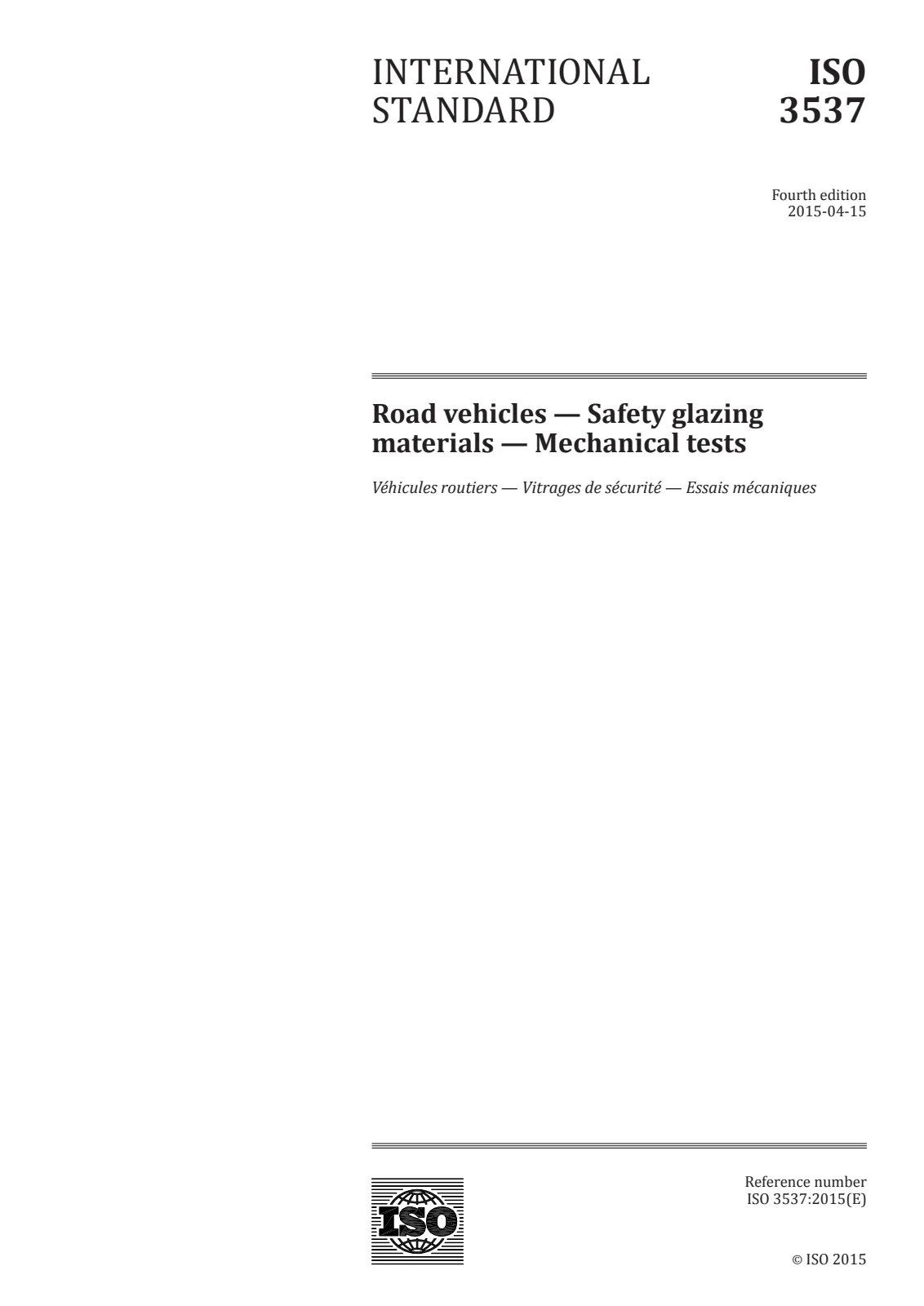

ISO 3537:2015 - Road vehicles - Safety glazing materials - Mechanical tests specifies mechanical test methods used to assess safety glazing in road vehicles, regardless of the glazing material (glass or plastics). Published as the fourth edition in 2015, the standard defines impact, abrasion, fragmentation and head‑form test methods, test conditions, apparatus and how to report results. Its purpose is to verify that windshields, side windows and other vehicle glazing meet minimum mechanical safety performance for occupant protection.
Key topics and technical requirements
- Scope and test conditions: Tests are performed under controlled ambient conditions (20 °C ± 5 °C; atmospheric pressure 86–106 kPa; relative humidity 60 % ± 20 %), unless otherwise specified.
- Ball impact tests:
- 227 g ball test (≈38 mm diameter) - assesses minimum strength/cohesion under impact. Test pieces can be tested at ambient or specified extreme temperatures (−20 °C, +40 °C) with defined conditioning periods; fragment mass is measured to 0.1 g if fragments detach.
- 2 260 g ball test (≈82 mm diameter) - evaluates penetration resistance; results recorded as “penetration” if the ball passes through within 5 s, or “support” if it remains on or wedged for ≥5 s.
- Both tests specify a supporting fixture (two steel frames with rubber gaskets ~3 mm thick, hardness 50 IRHD) and strict impact location/tolerances.
- Abrasion resistance: Procedures and apparatus (e.g., Taber‑type abraser referenced) for assessing minimum abrasion resistance of rigid plastic glazing. The standard refers rigid plastic glazing alternatives to ISO 15082.
- Fragmentation and head‑form tests: Methods to evaluate how glazing fragments on breakage and to assess occupant protection against head impacts. Apparatus, procedures and expression of results are specified in dedicated clauses.
- Reporting: The standard prescribes how to express results - e.g., drop height, temperature, fragment masses, and pass/fail criteria for penetration/support.
Practical applications
- Use ISO 3537:2015 to:
- Qualify and compare glazing materials (glass, laminated, rigid plastics) for automotive safety performance.
- Support type‑approval, regulatory compliance, and supplier certification.
- Guide R&D and material selection for OEMs, glazing manufacturers and test laboratories.
- Define acceptance criteria in procurement and quality control.
Who should use this standard
- Automotive OEM engineers, glazing and material suppliers, independent testing laboratories, regulatory bodies and certification authorities involved in vehicle safety, product development and homologation.
Related standards
- ISO 15082 - Tests for rigid plastic safety glazing materials (alternative methods referenced).
- ISO 3536 - Safety glazing vocabulary.
- ISO 48 - Rubber hardness (used for gasket specification).
Keywords: ISO 3537:2015, safety glazing, road vehicles, mechanical tests, impact resistance, abrasion resistance, fragmentation test, head‑form test, automotive glazing standards.
