Overview
ISO 3601-3:2005 is an internationally recognized standard published by the International Organization for Standardization (ISO). It specifies the quality acceptance criteria for O-rings used in fluid power systems, which include hydraulic and pneumatic applications. This standard complements the dimensional requirements set out in ISO 3601-1, ISO 16031-1, and ISO 16031-2 by setting limits for acceptable surface imperfections and defects on O-rings. The provisions of ISO 3601-3:2005 are critical for ensuring the reliability and longevity of O-rings in demanding environments, including industrial and aerospace applications.
Key Topics
- Surface Imperfections and Limits: ISO 3601-3:2005 details and classifies typical O-ring surface imperfections such as flash, backrind, non-fill, indentations, and foreign material. It specifies maximum allowable limits to ensure the functional integrity of O-rings.
- Grades of O-ring Quality:
- Grade N (General Purpose): For standard industrial uses where common quality is sufficient.
- Grade S (Special Applications): For applications requiring higher quality and tighter tolerances, such as critical industrial or automotive systems.
- Grade CS (Critical Service): For the most demanding environments, such as aerospace or medical systems, where near-perfect surface integrity is required.
- Inspection and Acceptance Procedures: Outlines methodologies, including visual inspection using a magnifier and specific lighting conditions, to verify that O-ring surface conditions meet the defined acceptance criteria.
- Defect Classification: Lists and defines types of surface defects, e.g., off-register, mismatch, excessive trimming, flow marks, and parting-line projections, ensuring a clear understanding for manufacturers and inspectors.
- Manufacturer-User Agreement: Provides guidance for both manufacturers and end-users to agree on quality grades and acceptance criteria, especially for custom or extreme-use cases.
Applications
Implementing ISO 3601-3:2005 adds substantial value to a wide range of industries using O-rings in fluid power systems:
- Hydraulic and Pneumatic Systems: Ensures seals maintain their integrity, preventing leaks and system failures in manufacturing, automotive, or equipment operations.
- Aerospace Construction: Helps meet strict safety and reliability standards for O-ring use in aircraft fluid systems, where failures can have critical consequences.
- Medical Devices: Grade CS quality criteria provide assurance for applications needing the highest seal reliability.
- Component Sourcing and Procurement: Enables clear communication of acceptance requirements between buyers and suppliers, reducing the risk of receiving non-compliant products.
- Quality Control Programs: Serves as a benchmark for O-ring inspection, validation, and vendor qualification in supply chains.
Related Standards
ISO 3601-3:2005 is part of an integrated suite of international standards for O-rings in fluid power systems. Related standards include:
- ISO 3601-1: Sets requirements for O-ring inside diameters, cross-sections, tolerances, and size identification codes.
- ISO 3601-5: Addresses the suitability of elastomeric materials for industrial applications of O-rings.

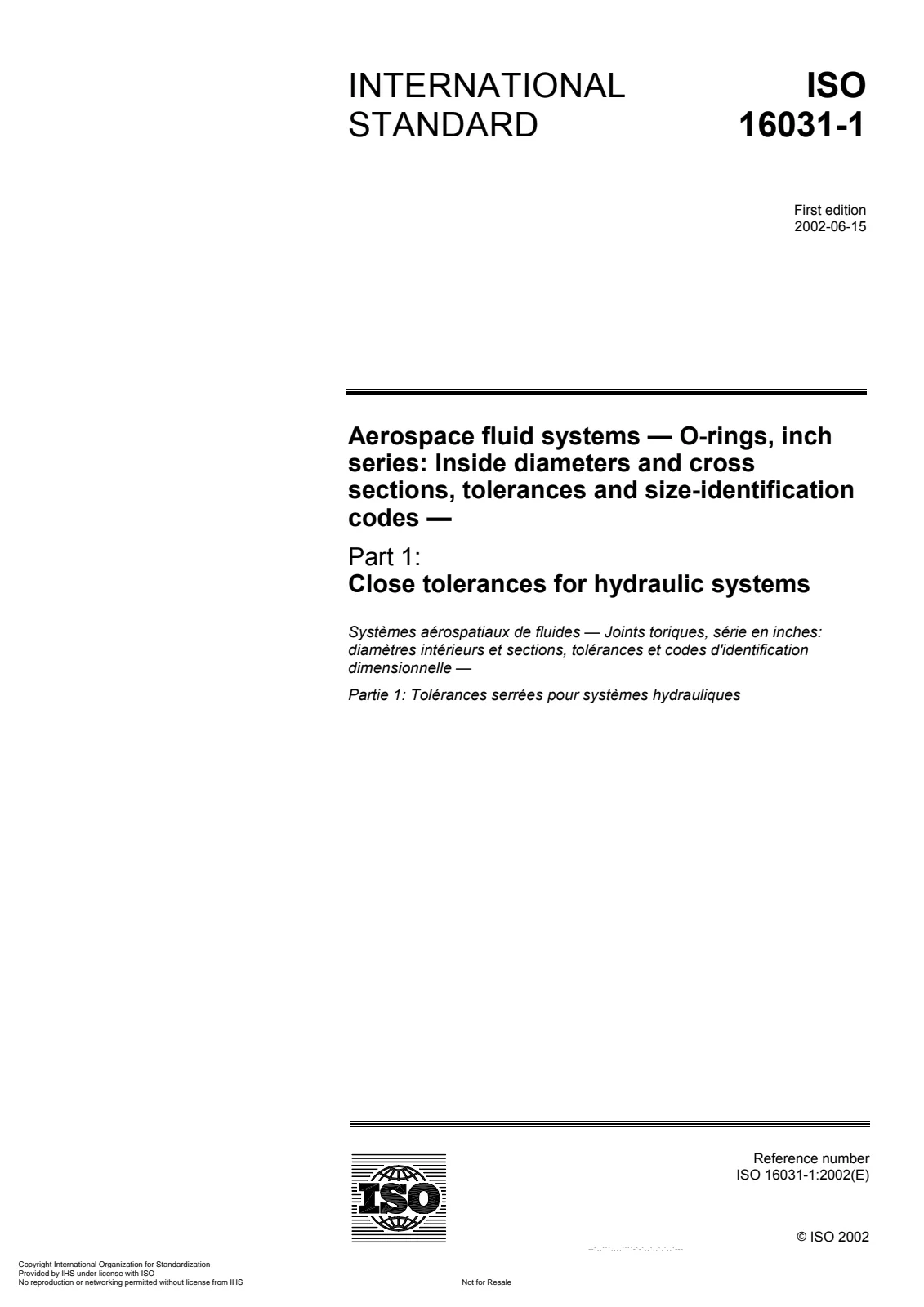

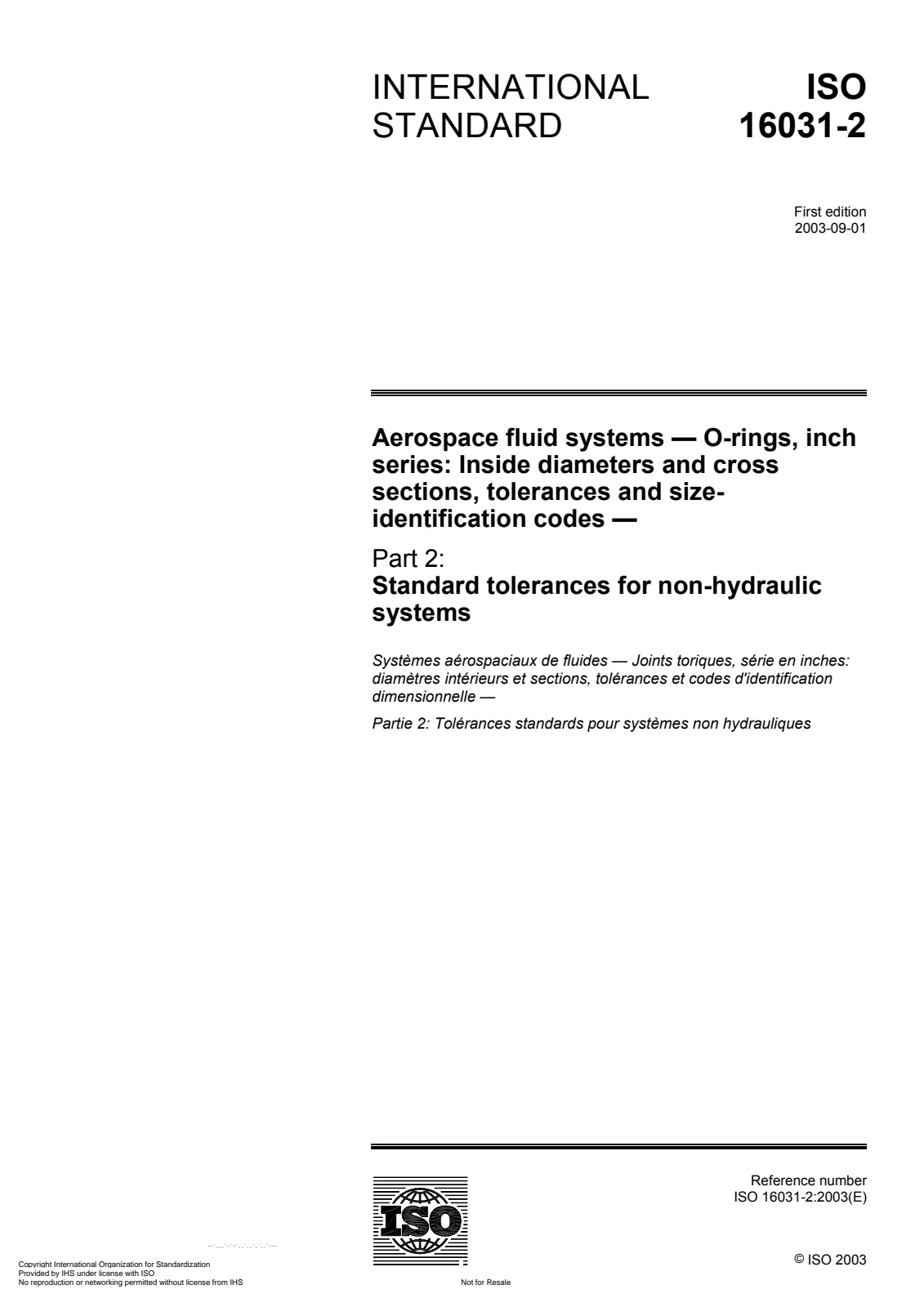

- ISO 16031-1 and ISO 16031-2: Define O-ring dimensions, tolerances, and codes for aerospace fluid systems in inch series, including specifications for both hydraulic and non-hydraulic systems.
- ISO 5598: Provides the vocabulary for fluid power systems and components.

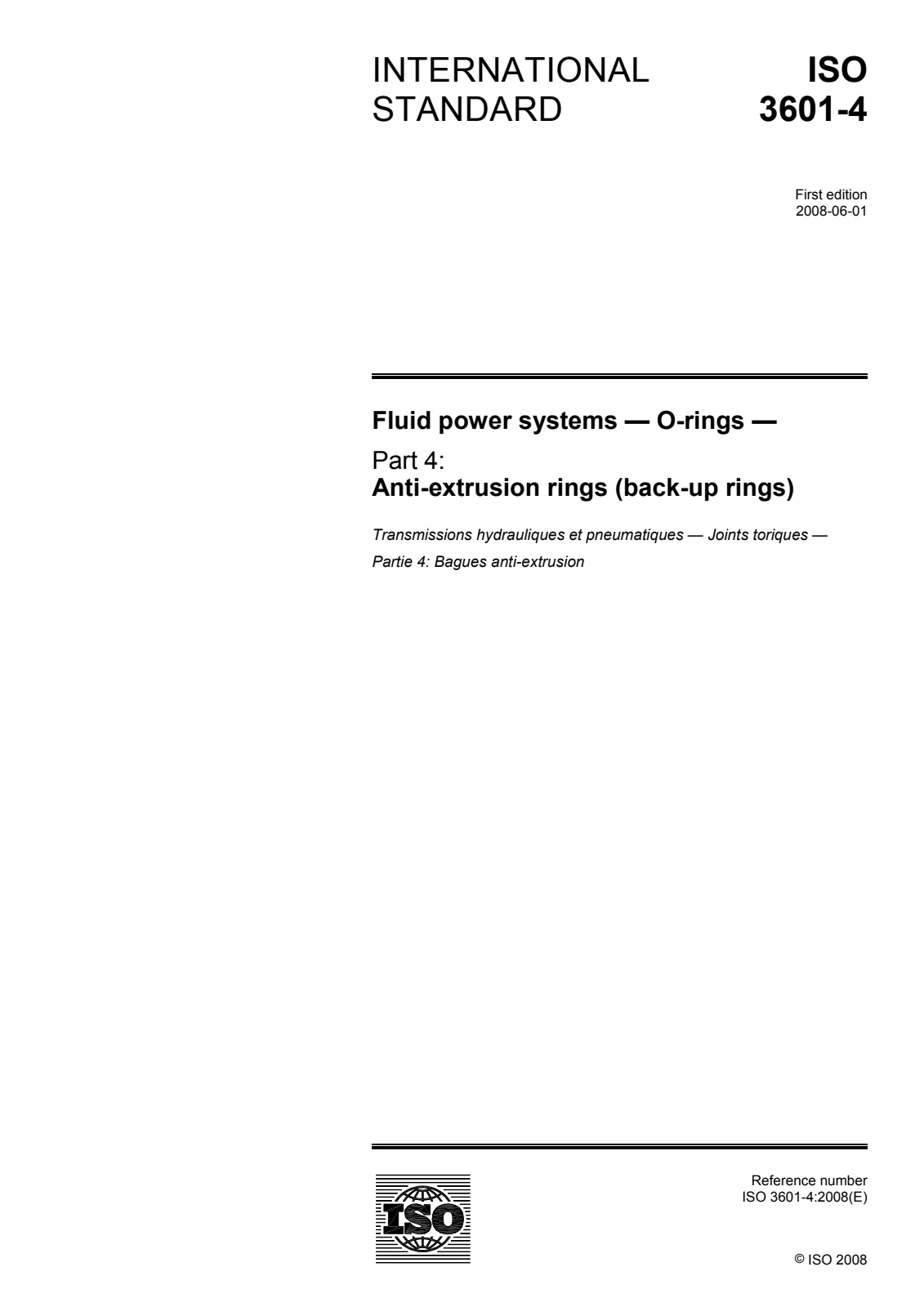

- Upcoming and Related Parts (ISO 3601-2, ISO 3601-4): Will introduce standards for housing dimensions and anti-extrusion device specifications.
Practical Value
Adopting ISO 3601-3:2005 ensures consistency, safety, and performance for O-rings in fluid power systems. Industries benefit from standardized, internationally accepted criteria for accepting or rejecting O-ring products, minimizing the risk of premature failures and downtime. The standard supports best practices in quality assurance, purchasing, and regulatory compliance across global supply chains involving hydraulic, pneumatic, aerospace, and medical sealing applications.
