Overview
ISO 4190-5:2006 - "Lift (Elevator) installation - Part 5: Control devices, signals and additional fittings" specifies the control devices, buttons, indicators and additional fittings to be provided when a lift (elevator) is constructed and installed. The standard emphasizes accessibility for persons with motor and sensory disabilities and defines requirements for handrails, landing and car control panels, audible/visual signals and ergonomic layout. It applies to lifts of classes I to IV and VI (see ISO 4190‑1 and ISO 4190‑2).
Key topics and technical requirements
- Types of control systems: down collective (DC), full/directional collective (FC), destination-oriented (DO) and group lift operation; special rules for destination keypads and group management are covered (Annex A).
- Landing controls: number and marking of call buttons depending on control type (single button for DC, up/down buttons for FC). Accessibility marking (wheelchair symbol) for dedicated cars in a group.
- Button and indicator specifications: operating force 1–5 N (recommended 2.5–5 N); active part area min 280 mm² (recommended 490 mm²); minimum inscribable circle diameter 19 mm (recommended 20 mm); tactile/visual contrast and raised symbols (0.8 mm thickness); audible call feedback adjustable 35–80 dB(A) (recommended max 65 dB(A)).
- Car operating panel: floor buttons, alarm (yellow bell or HELP), door re-open/close symbols, STOP device. Button layout rules, vertical/horizontal ordering and recommended mounting heights (e.g., button centreline 890–1 220 mm, recommended 900–1 100 mm).
- Sequential step scanning: required where car buttons are placed more than 1 220 mm above the car floor to allow floor selection by up/down scan buttons.
- Handrails: minimum requirements when handrails are provided in the car.
- Annexes: Annex A (normative) on special systems (e.g., destination controls), Annex B (informative) on particular access requirements, Annex C (normative) representative symbols.
Applications and users
ISO 4190-5 is used by:
- Lift/elevator manufacturers and designers for control panel design, button specification and human-machine interface.
- Installers and contractors for compliant installation and commissioning.
- Building architects, accessibility consultants and facility managers for design coordination and accessibility compliance.
- Regulators and standards bodies for reference in building codes and accessibility regulations.
Practical uses include new lift specification, retrofit planning (controls and signage), accessibility audits and procurement of compliant components.
Related standards
- ISO 4190-1 (Classes I, II, III and VI lifts)
- ISO 4190-2 (Class IV lifts)
For full implementation, consult the other parts of ISO 4190 and relevant local safety/electrical regulations.
Keywords: ISO 4190-5:2006, lift standard, elevator controls, control devices, landing buttons, car operating panel, accessibility, handrail, destination control, lift group.

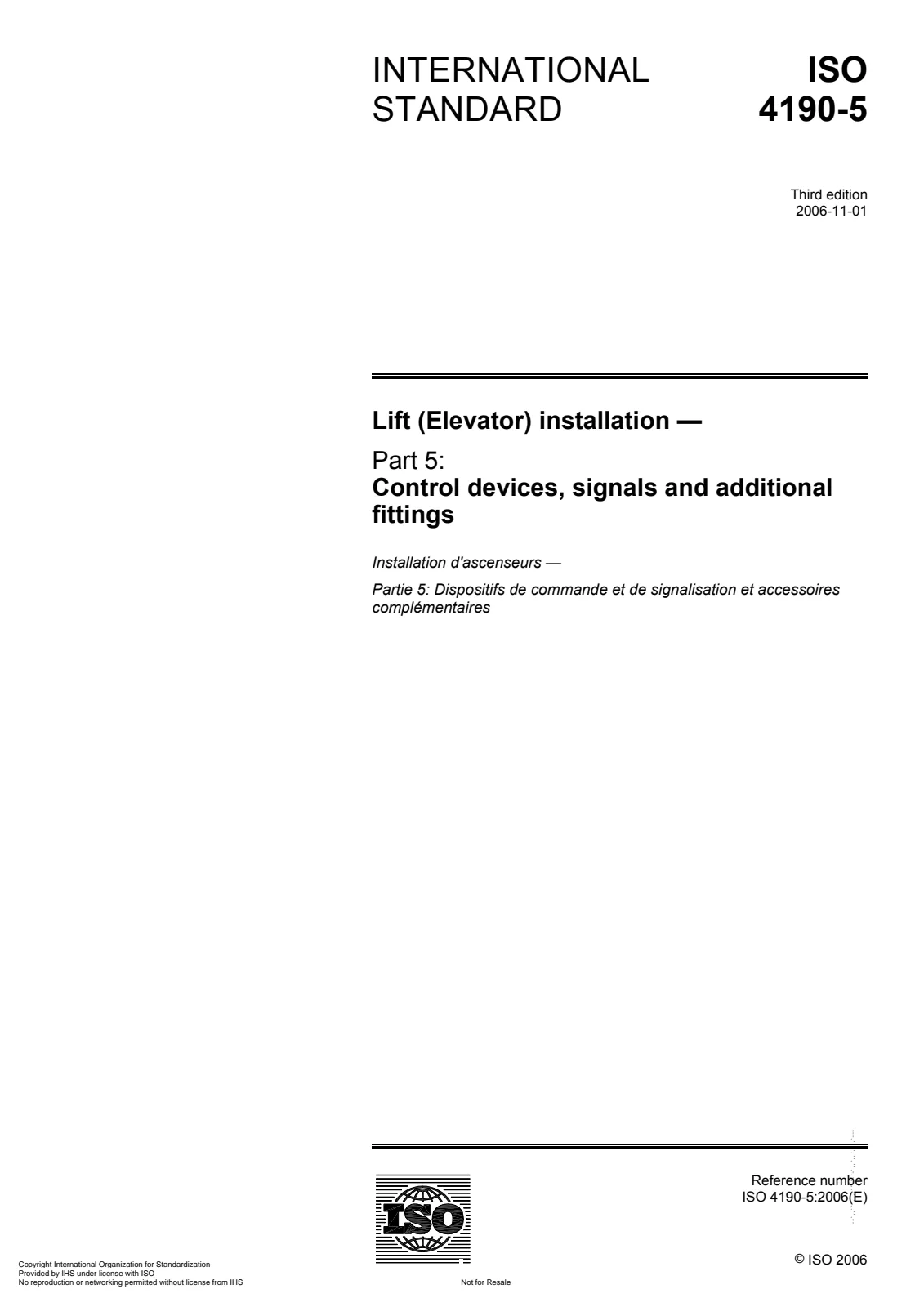

Open preview (PDF)Lift (Elevator) installation — Part 5: Control devices, signals and additional fittings
