Overview
ISO 4578:1997 is an international standard developed by the International Organization for Standardization (ISO) that specifies the floating-roller method for determining the peel resistance of high-strength adhesive bonds. This standard focuses on adhesive bonds between a rigid adherend and a flexible adherend, providing a reliable testing procedure under controlled conditions of preparation and testing. The floating-roller method is recognized for producing more consistent numerical data compared to other peel test methods, although it does not require the flexible adherend to conform perfectly to the roller surface.
This standard is essential for materials scientists, adhesive manufacturers, and quality control professionals who need to assess the strength and durability of adhesive joints, particularly where peel forces are critical.
Key Topics
-
Peel Resistance Definition: The average force per unit width required to progressively separate bonded members under specified test conditions, expressed in kilonewtons per meter.
-
Floating-Roller Method Principle: Measures the force necessary to peel the flexible adherend at a predefined angle using free-rolling rollers to maintain alignment with tensile testing machine grips.
-
Test Apparatus:
- Tensile testing machine with constant crosshead rate and accurate force measurement.
- Peel test fixture equipped with dual bearing floating rollers (typically 25 mm diameter) for supporting specimens.
-
Specimen Preparation:
- Bonded specimens of rigid and flexible adherends with carefully prepared surfaces following ISO 4588 (metals) or ISO 13895 (plastics).
- Specimen dimensions and adherend thickness specified for reducing deformation and ensuring repeatability.
- Unbonded ends of flexible adherends bent for proper gripping.
-
Test Conditions:
- Standard laboratory atmospheres per ISO 291 for conditioning and testing.
- Peel tests performed at a crosshead separation rate of 100 mm/min ± 5 mm/min.
- Autographic recording of force vs crosshead movement to analyze peel force over a defined bond length.
-
Results Evaluation:
- Determining average peel force from the recorded graph over at least 115 mm, excluding initial and final peel lengths.
- Multiple analysis methods available: planimeter, gravimetric weighing, graphical best-fit line, or computer-assisted calculations.
- Reporting average, maximum, and minimum peel forces and failure type based on ISO 10365 classification.
-
Test Report Requirements:
- Complete identification of adhesive and adherends.
- Detailed surface treatment and bonding process description.
- Test specimen details, conditioning, and environmental conditions.
- Methodology for peel force determination and full results disclosure.
Applications
ISO 4578:1997 is widely applicable in industries where high-performance adhesives are used, including:
- Automotive and aerospace manufacturing, where adhesive bonding is critical for structural integrity.
- Electronics and electrical assemblies involving metal-to-plastic joins.
- Packaging and flexible materials where peel strength is a key quality parameter.
- Research and development of new adhesive formulations requiring standardized peel resistance data.
- Quality assurance during production to ensure consistent adhesive performance.
The floating-roller peel test helps manufacturers optimize bonding processes, select suitable adhesives, and validate joint designs to improve product reliability and safety.
Related Standards
- ISO 4588:1995 - Guidelines for surface preparation of metals prior to adhesive bonding.
- ISO 13895:1996 - Guidelines for surface preparation of plastics prior to bonding.
- ISO 291 - Standard atmospheres for conditioning and testing of plastics.
- ISO 5893:1993 - Test equipment specifications for tensile, flexural, and compression testing.
- ISO 7500-1:1986 - Verification of static uniaxial testing machines for metals.
- ISO 9142:1990 - Guidelines for laboratory ageing of bonded joints.
- ISO 10365:1992 - Identification of failure modes in adhesive bonds.
These complementary standards provide critical guidance on environmental conditions, specimen preparation, equipment calibration, and failure analysis, ensuring the accurate application of ISO 4578.
Keywords: ISO 4578, peel resistance, adhesive bonds, floating-roller method, high-strength adhesives, peel test, bonded joints, adhesive testing standards, surface preparation, tensile testing machine, adhesive quality control.

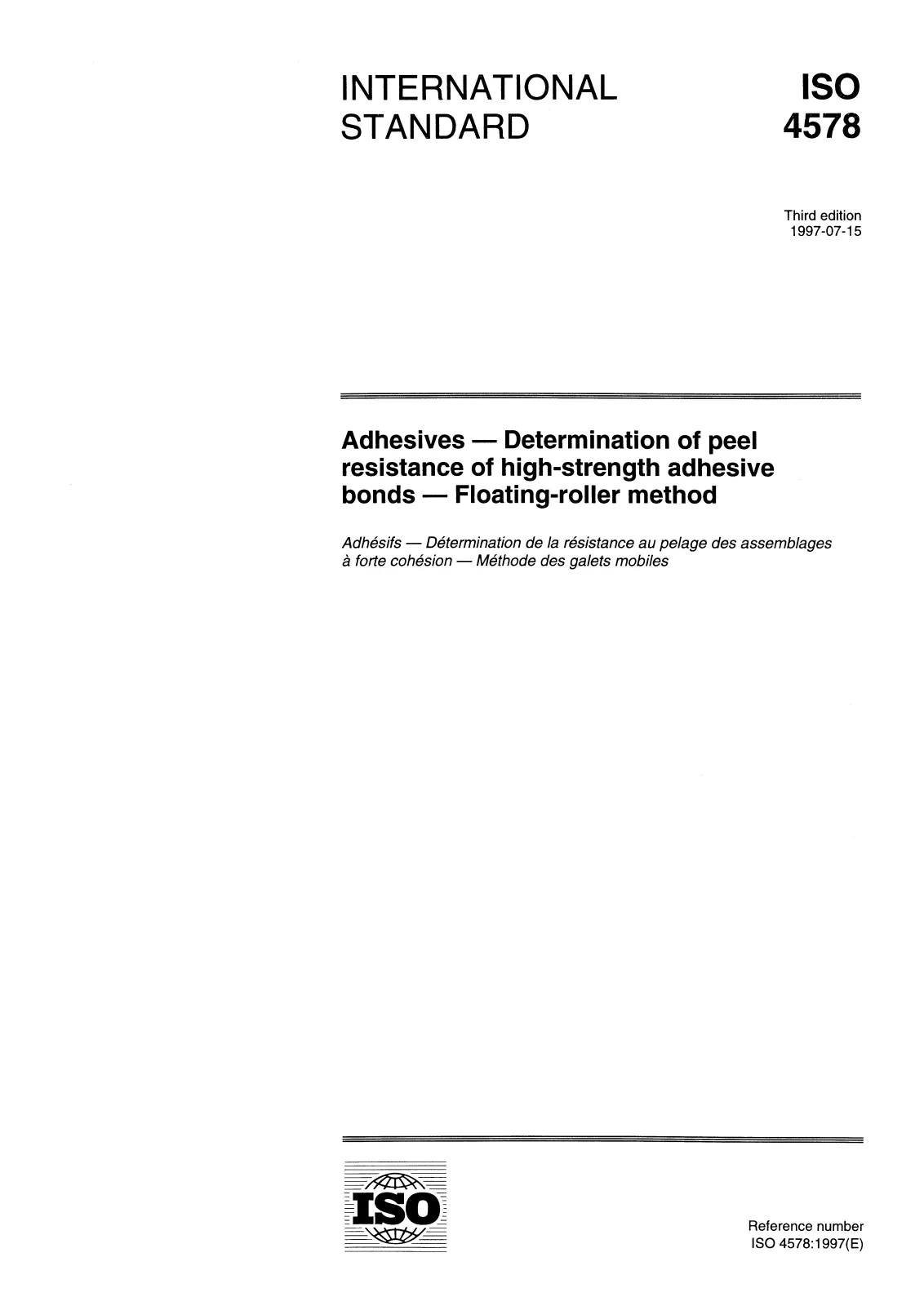

Open preview (PDF)Adhesives — Determination of peel resistance of high-strength adhesive bonds — Floating-roller method
