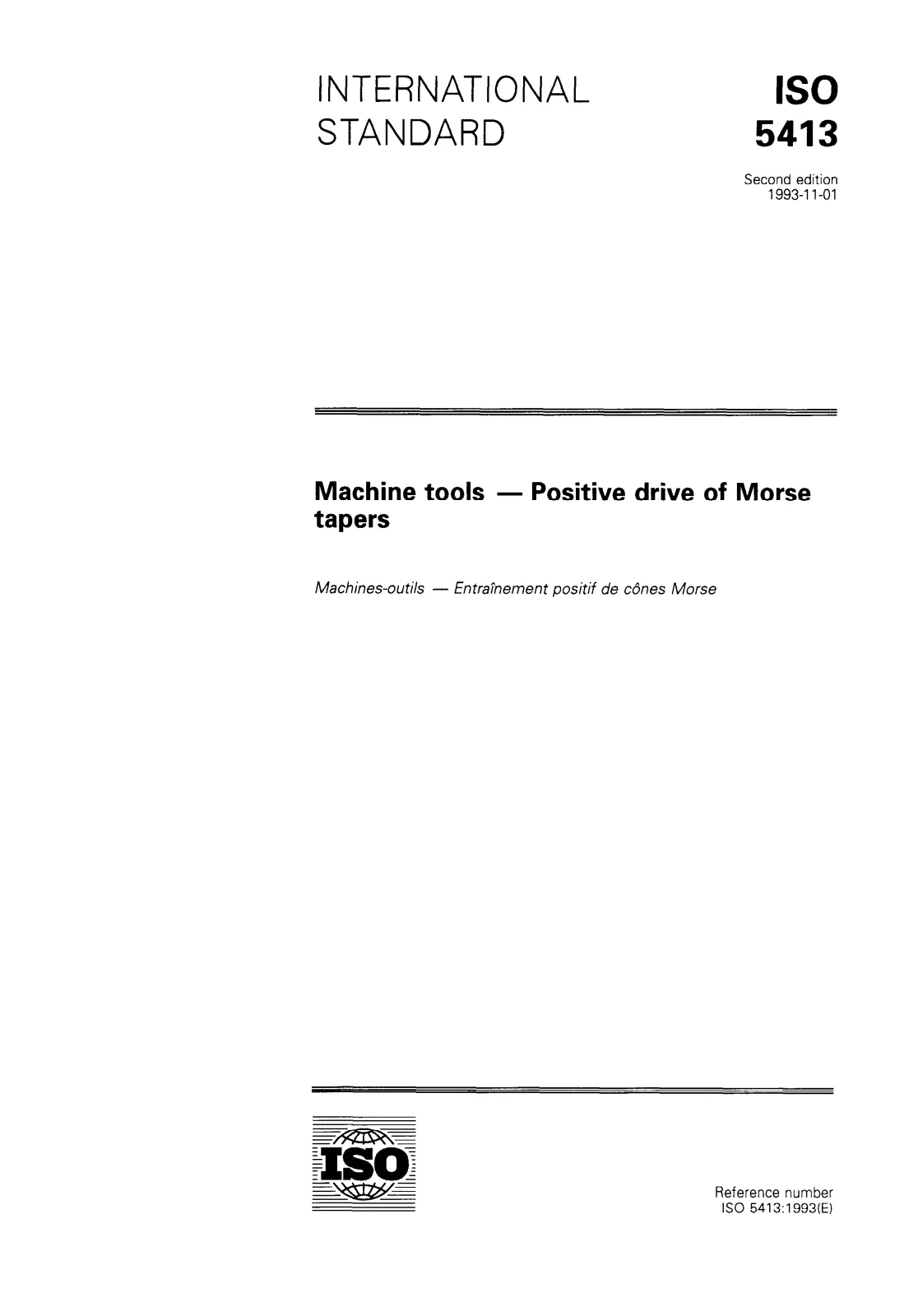

ISO 5413:1993 - Machine tools - Positive drive of Morse tapers specifies the dimensional details required for the positive-drive features of external and internal Morse tapers. Published as the second edition (1993), this International Standard complements ISO 296 (Self-holding tapers for tool shanks) by providing the standardized dimensions and tolerances necessary where a positive drive interface is required between tool shank and machine spindle or adaptor.
Key topics
- Scope and applicability: Dimensions for positive drive on external and internal Morse tapers (work aligns with ISO 296).
- Normative reference: ISO 296:1991 is cited as the normative document defining the underlying Morse taper geometry.
- Dimensions and tolerances: The standard includes figures and a table of dimensional values and symmetry tolerances (see figure 1 and table 1 in the document). It covers common Morse taper sizes (examples in the standard include taper Nos. 3–6).
- Measurement planes and symmetry: Defines measurement planes and acceptable tolerance limits for positive-drive features to ensure correct fit and function.
- Edition history: The 1993 edition cancels and replaces ISO 5413:1976; it removes dimensions already covered by ISO 296 and adjusts certain tolerances.
Applications
ISO 5413 is practical for anyone involved in the specification, manufacture, inspection, or use of tool holding systems that require a positive drive on Morse tapers:
- Machine tool manufacturers specifying spindle and adaptor interfaces.
- Toolmakers and tool-shank manufacturers producing end mills, drills and arbors with Morse taper shanks.
- Fixture and adaptor designers who need standardized positive-drive dimensions for reliable torque transmission.
- Quality and metrology engineers performing incoming inspection and tolerance verification.
- Procurement and maintenance teams ensuring replacement parts and tooling are compatible with existing spindles and adaptors.
Using ISO 5413 helps ensure interchangeability, repeatability, and safe transmission of drive torque where self-holding tapers alone are insufficient.
Related standards
- ISO 296:1991 - Machine tools - Self-holding tapers for tool shanks (normative reference) - defines the basic Morse taper geometry that ISO 5413 augments with positive-drive dimensions.
- Other machine-tool and tooling standards may be referenced for full system specification and safety requirements.
