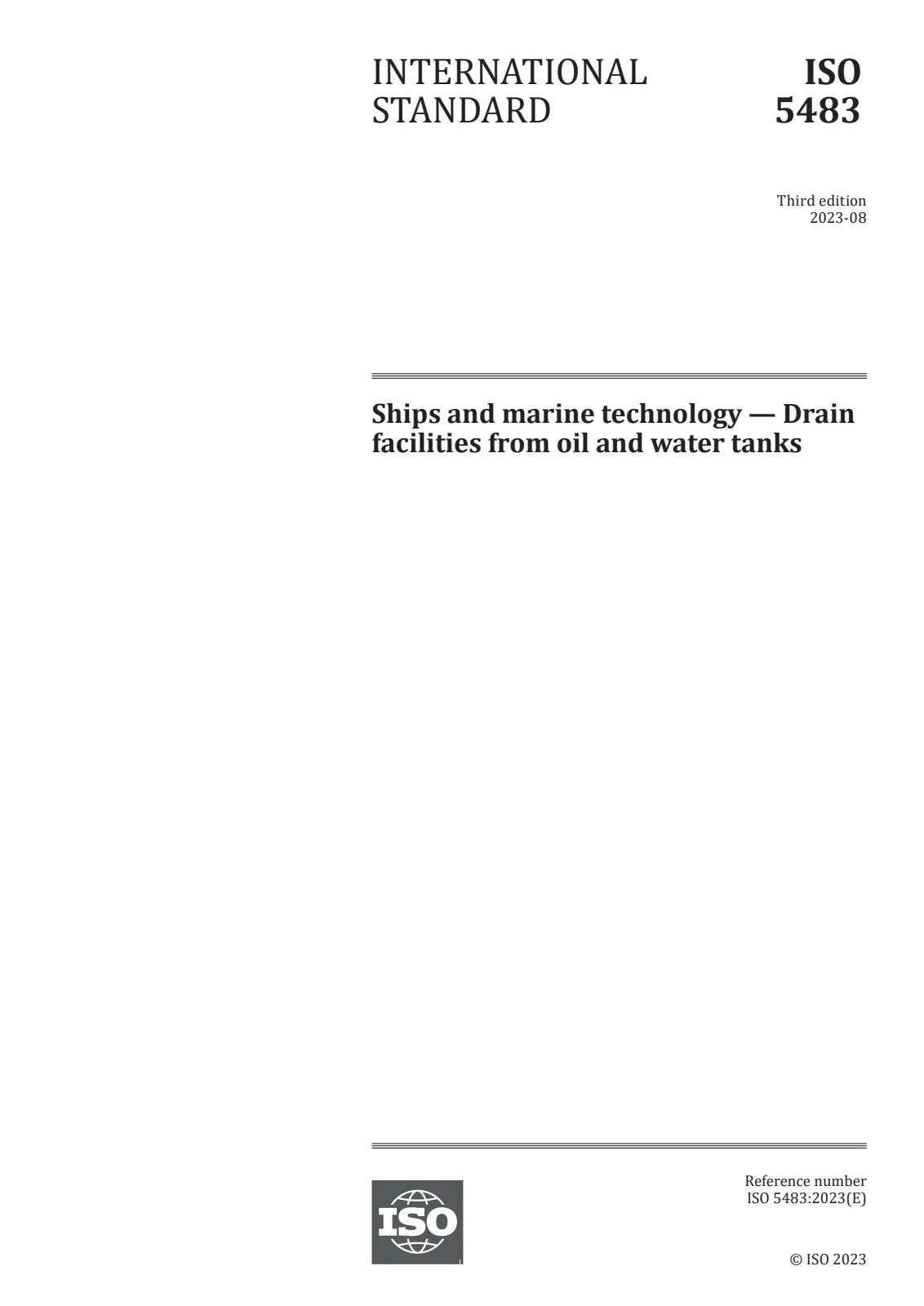

ISO 5483:2023 - Ships and marine technology - Drain facilities from oil and water tanks - specifies the dimensions and materials for welding rings and drain screws used in drain facilities located at the bottom of oil and water tanks. The standard applies to both built‑in tanks (integrated in hull structure) and detachable tanks (located in rooms/compartments). It defines four mounting arrangements (Type A, B, C and D) and includes requirements for assembly, threads, materials, welding and marking.
Key topics and technical requirements
- Drain facility types: Designation and intended use of Type A (universal, flush mounting for thin plating), Type B and C (alternative mountings) and Type D (for jack‑up platforms and special flush mounting).
- Assembly and mounting: General assembly arrangements and main dimensions for each type, plus mounting drawings and parts lists covering welding rings, drain screws and gaskets.
- Threads and tolerances: Threads for all types must comply with ISO screw‑thread standards (ISO 68‑1, ISO 261 and ISO 965 series). Non‑toxic anti‑seize on threads is noted as acceptable.
- Materials: Materials for welding rings, drain screws and gaskets are specified. The standard references shipbuilding steels, corrosion‑resistant stainless steels, PTFE, chloroprene rubber and appropriate copper/lead alloys as suitable choices for oil and water tank applications.
- Welding and quality: Welding sequence illustrations and the requirement that welding complies with classification society rules.
- Marking and opening: Requirements for marking and location (including special provisions for Type D) and methods for opening drain facilities (tools and wrench types are covered, with informative Annex A).
Practical applications and users
ISO 5483:2023 is intended for professionals involved in the design, fabrication, installation, inspection and maintenance of shipboard tanks and drainage systems, including:
- Shipbuilders and ship repair yards
- Naval architects and marine engineers
- Tank and fitting manufacturers (welding rings, drain screws, gaskets)
- Classification societies and surveyors ensuring compliance
- Offshore platform designers and operators (jack‑up platform applications)
Use cases include specifying drain fittings for newbuild vessels, retrofitting or replacing tank drains, preparing procurement specifications, and verifying conformity during surveys.
